Color

RAL 9010

Material

Aluminum

Weight

22 Kg

Measurments

Dimension (cm) External Internal
Width
44
40
Height
50
47
Depth
73
50

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

RF Shielded box: IG-901B high performances

Description

The IG- 901B is the perfect box for testing large devices and setups. The light-weight of IG- 901B box makes it a portable box, which the user can carry anywhere he may need for demonstrations. The IG- 901B box design for testing any wireless transmission such as: Wi-Fi, Bluetooth, RFID, 3G,4G,5G,6G, WLAN, GPS, WiMAX.
It may also be used for cell-site testing, RF resistor testing, and two-way radio testing.

Key Features

  • Fast, reliable EMI/RFI testing and verification with effective shielding of 80 dBm minimum (tested as per IEEE-299 2006)
  • High performance construction: aluminium and steel, compliant welding, high-quality painted
  • User-friendly, compact, lightweight design
  • Manual operation: side loading, toggle-opened door, latch locking action
  • Effective shielding tested under lab conditions
  • Manufacturer’s C.O.T. include effective shielding results is included
  • Custom-made product, adaptable to any application

Typical RF Attenuation

  • The internal surfaces are covered with RF absorber foam, adding up to 24 dB of shielding attenuation to the product

Internal RF absorber

The internal surfaces are covered with RF absorber foam, adding up to 24 dB of shielding attenuation to the product

Accessories

View Accessories

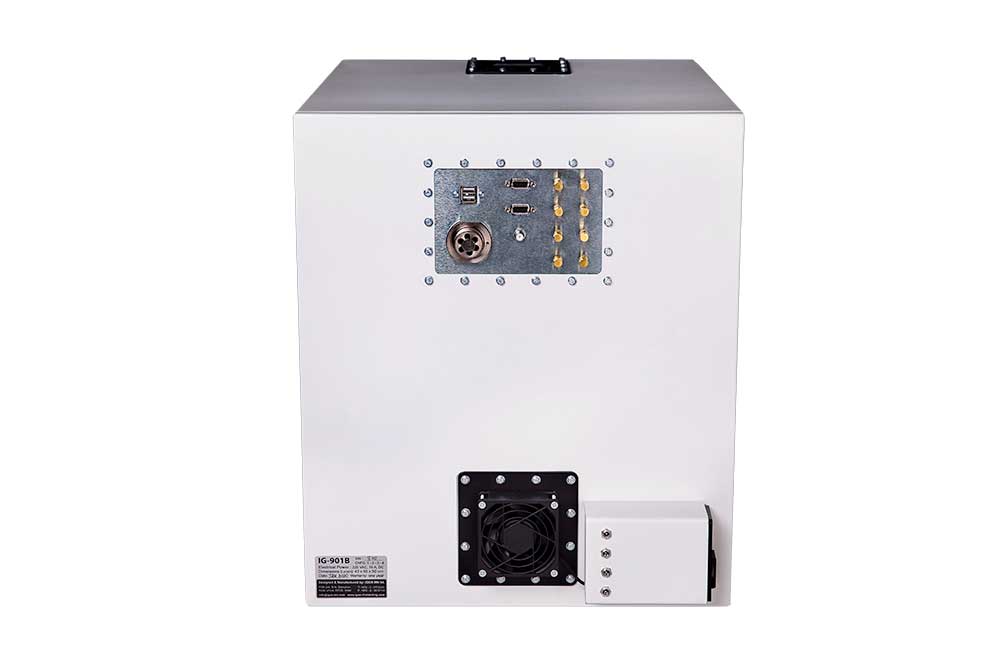

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
