IG-811E

Color

RAL 9010

Material

Stainless Steel

Weight

120 Kg

Measurments

Dimension (cm)	External	Internal
Width	85	70
Height	200	180
Depth	85	70

Quality

Testing according to MIL-STD 285
A C.O.A will attach to each box.
Final Attenuation level will set as per as the weak chosen connector
Warranty – one year from delivering

Description

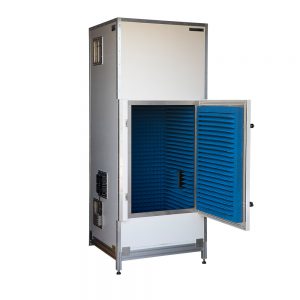

IG-811E is OTA (Over The Air) measurement & testing chamber. Fit to wide frequency range up to mmW - Very High Frequency. The chamber height is 200 cm with one frontal door. Reflection and isolation performances. IG-811E design for testing any wireless transmission such as: Wi-Fi, Bluetooth, RFID, 3G, 4G, 5G, WLAN, GPS and mmW. It may also be used for cell-site testing, RF resistor testing and two-way radio testing. Over The Air – Measurement & Testing.

Key Features

Fast, reliable EMI/RFI testing and verification, while providing 100% effective shielding of 120dBm minimum attenuation tested as per as
MIL-STD-285D up to 6GHz
High performance construction of SAE 1020 and copper EMC shielding with ROHs compliant welding and RAL 9010 STD coating.
Manual operation with front loading, big handle opened door.
Shielding tested under lab conditions with signal generator by spectrum analyzer and conforming antenna. Manufacturer’s C.O.T. and test results included.
For large UUT’s
For Antenna test & measurement.
For Over The Air measurement.
Reflection and isolation performances.
Custom-made product adaptable to any application.
