RF box

Color

RAL 9010

Material

Aluminum

Weight

Not specified
Dimension (cm) External Internal
Width
22
19
Height
15
11
Depth
41
25

Quality

  • Testing according to MIL-STD 285
  • C.O.A attached to each box
  • Final attenuation level set by the weakest chosen connector
  • Warranty: one year from delivery

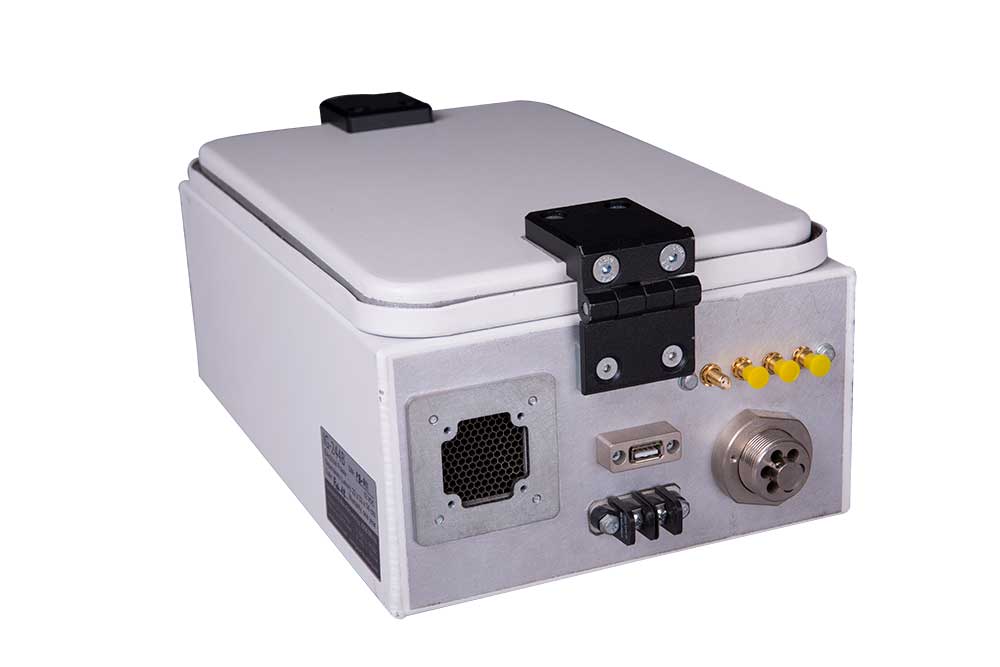

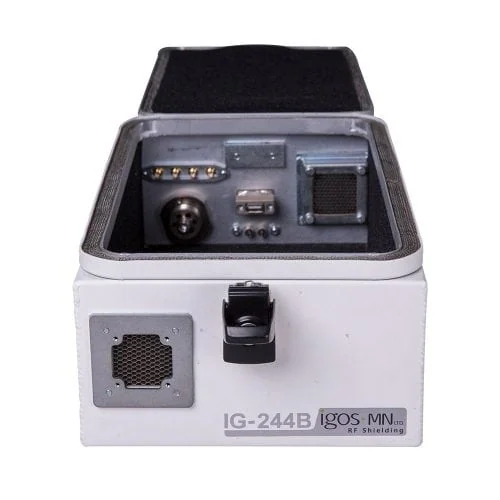

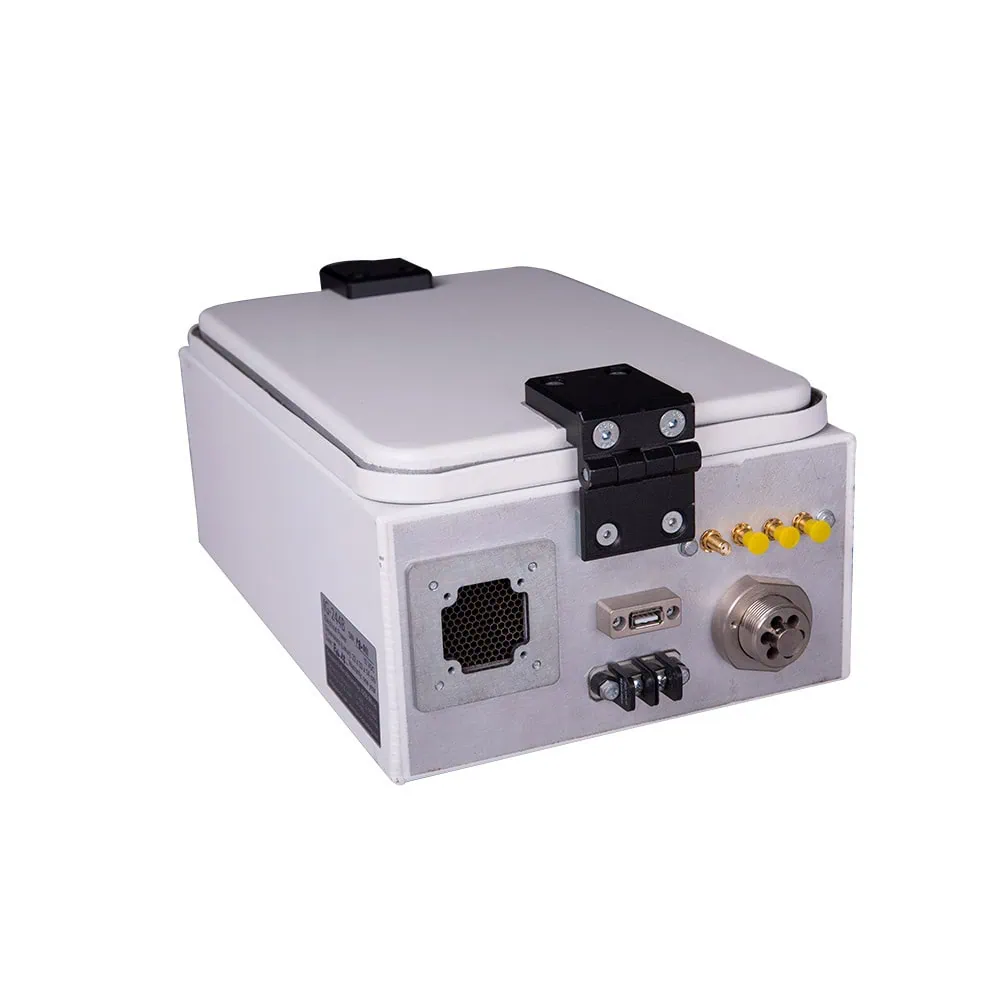

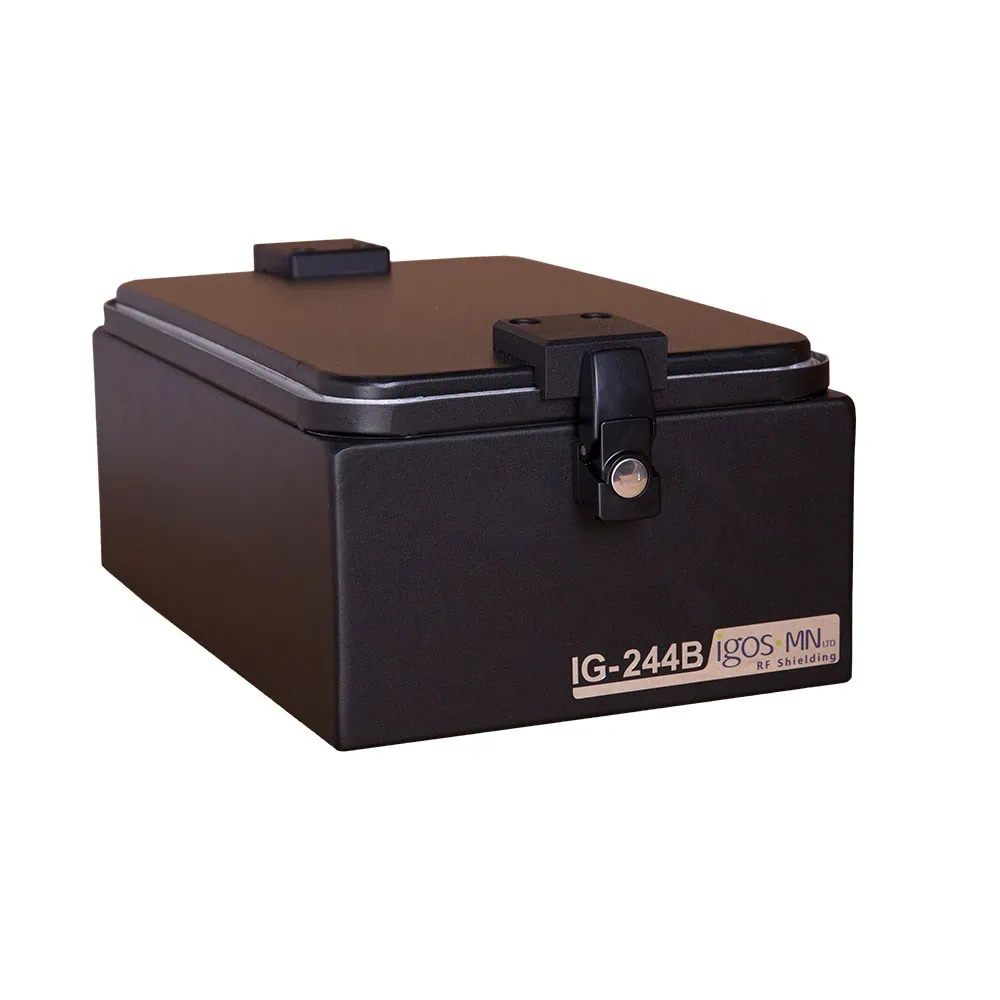

RF Shielded box: IG-244B

Description

The IG-244B is the perfect box for testing small device such as cellphones and small set ups.
The light weight of IG-244B box makes it a portable box, which the user can carry to anywhere he may need for demonstrations.
The IG-244B box design for testing any wireless transmission
such as: Wi-Fi, Bluetooth, RFID, 3G, WLAN, GPS and WiMAX.
It may also be used for cell-site testing, RF resistor testing and two-way radio testing.

Key Features

  • Fast, reliable EMI/RFI testing and verification with 100% effective shielding of 90 dBm minimum attenuation (tested as per MIL-STD-285D up to 6GHz)
  • High performance construction: aluminum and copper EMC shielding, RoHS compliant welding, RAL 9010 STD coating
  • User-friendly, compact, lightweight design
  • Manual operation: top loading, toggle opened door, latch locking action
  • Shielding tested under lab conditions with signal generator, spectrum analyzer, and conforming antenna
  • Manufacturer’s C.O.T. and test results included
  • Suitable for small UUT’s
  • Custom-made product, adaptable to any application

Typical RF Attenuation

from 0.1 GHz up to 6 GHz -> 80 dB

Internal RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories
