B SeriesIG-118BB Series

IG-118B

Description

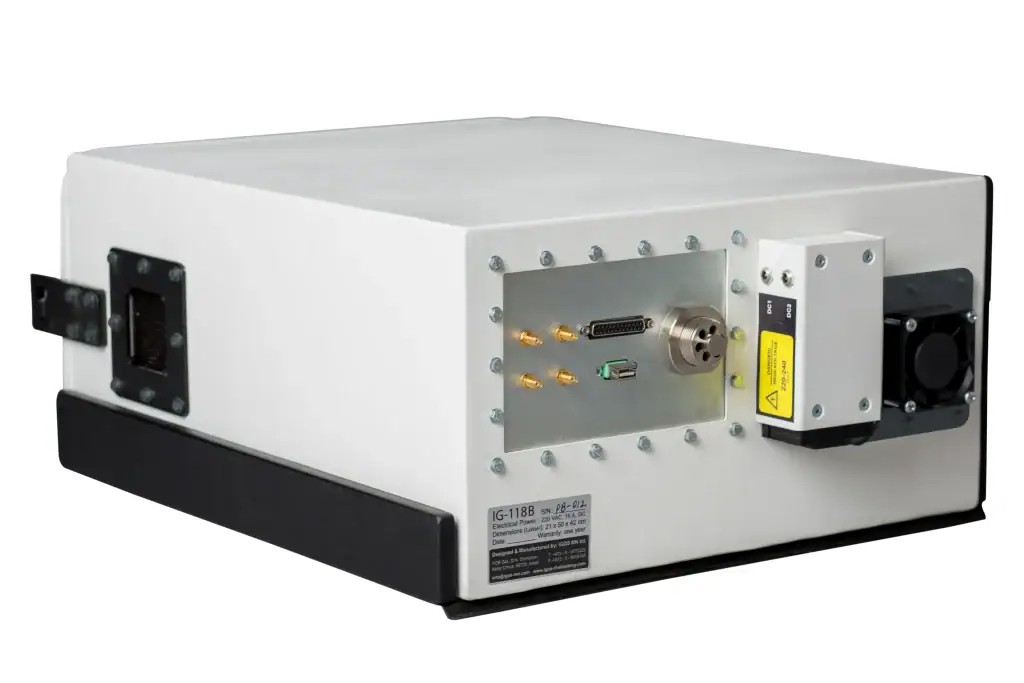

The IG-118B acts as a versatile utility player in the testing lab. While remaining compact enough for any desktop, its internal geometry is optimized to accommodate a diverse range of small electronics, from automotive sensors to medical monitoring devices. It provides a stable, isolated electromagnetic environment, ensuring that external noise does not compromise your measurement accuracy.

Quality

Testing according to MIL-STD 285
A C.O.A will attach to each box.
Final Attenuation level will set as per as the weak chosen connector
Warranty – one year from delivering

Material

Aluminum

Weight

1.5 Kg

RF Absorber

24 db

Application

Mobile

Warranty

1-2 Years

RF Attenuation

0.1-8GHz <80dB

Key Features

Ultra-Compact Footprint: Occupies minimal desk space, allowing for high-density test setups in crowded labs.
Cost-Effective Efficiency: Delivers professional RF isolation at an entry-level price point, ideal for high-volume deployments.

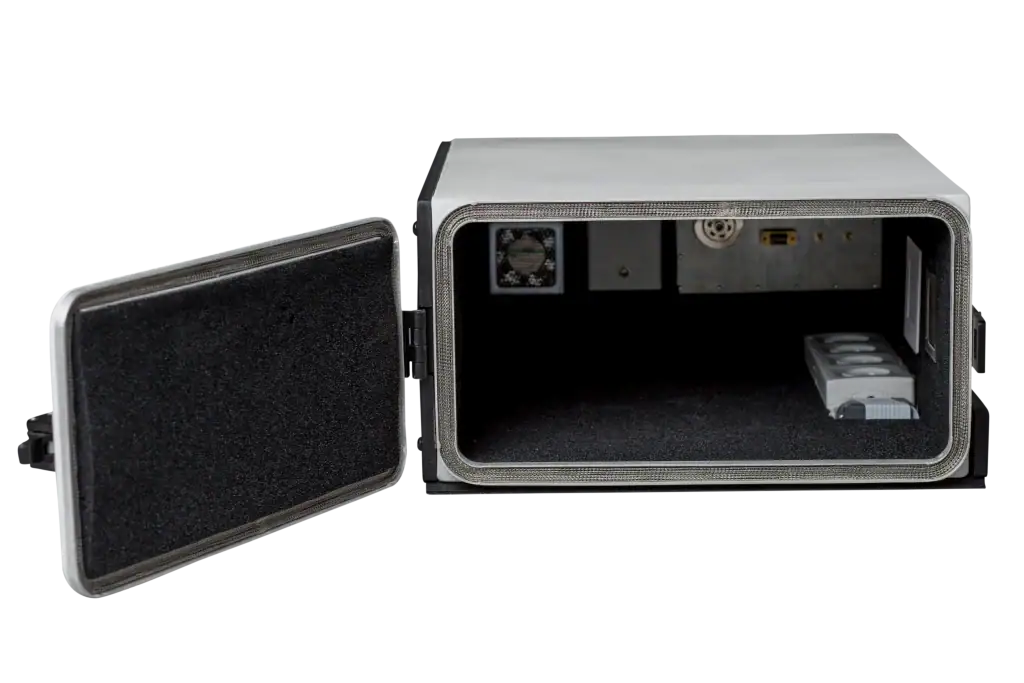

Quick-Action Latch: Simple, manual locking mechanism designed for rapid insertion and removal of small devices.
IoT & Wearable Optimized: Internal geometry specifically sized for USB dongles, smartwatches, and tracker modules.
High Shielding Integrity: Maintains robust isolation despite its small size, ensuring accurate functional testing.
Durable Construction: Built with the same high-quality aluminum and copper materials as our larger industrial models.

Measurements (cm)

	Width	Height	Depth
External	21	42	57
Internal	18	37	46
