| Dimension (cm) | External | Internal |
|---|---|---|
|
Width |
44 |
40 |
|
Height |
50 |
47 |
|
Depth |
73 |
50 |

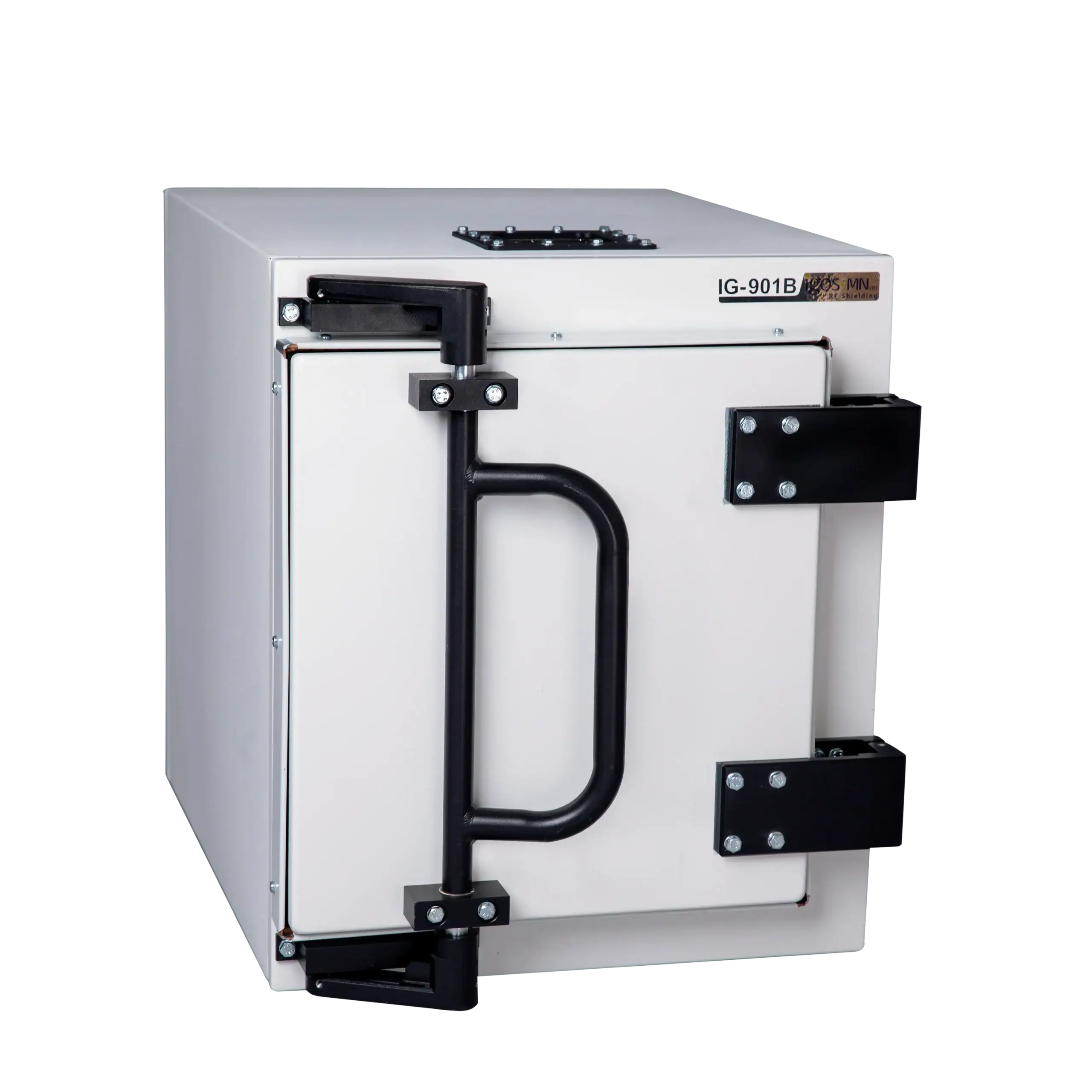

The flagship of the B-Series. A High-End shielding solution delivering up to 120dB of isolation for the most critical and sensitive measurements.
• Testing according to MIL-STD 285
• A C.O.A will attach to each box.
• Final Attenuation level will set as per as the weak chosen connector
• Warranty – one year from delivering
• Extreme 120dB Isolation: Provides a near-perfect RF quiet zone, blocking even the strongest external signals.
• Double-Wall Construction: Utilizes advanced dual-layer shielding technology to eliminate leakage paths.
• Sensitive Receiver Testing: The only choice for measuring Noise Figure, Sensitivity, and low-power IoT signals.
• Fiber-Optic Ready: Supports fiber-optic interfaces to pass data without introducing any conductive noise.
• Hybrid Mounting: Versatile design allows for use on a desktop or installation into a standard 19" equipment rack.
• Security & Crypto Testing: Ideal for testing secure communications equipment where zero emission leakage is required.

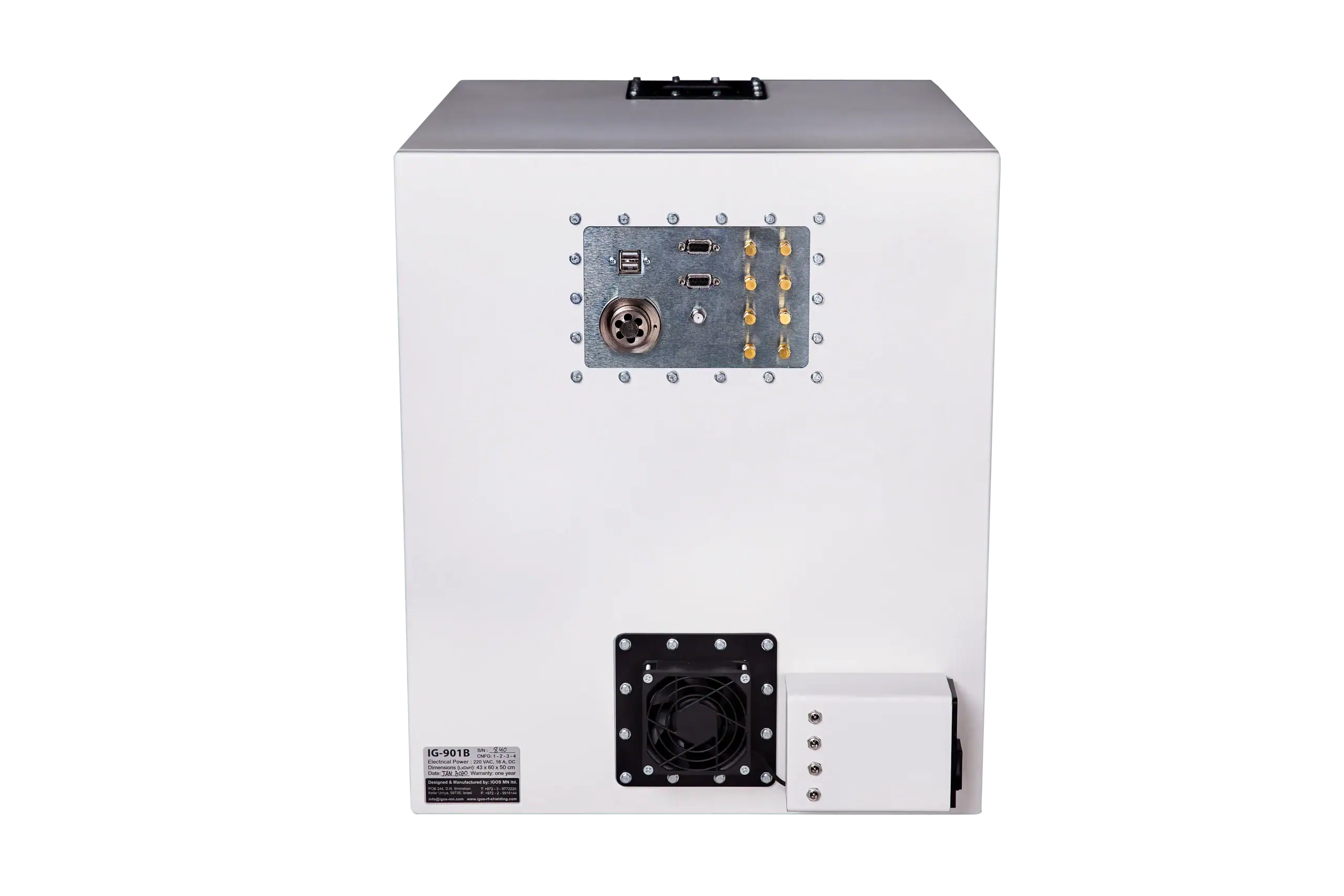

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.
