| Dimension (cm) | External | Internal |
|---|---|---|
|
Width |
67 |
57 |
|
Height |
47 |
37 |
|
Depth |
53 |
47 |

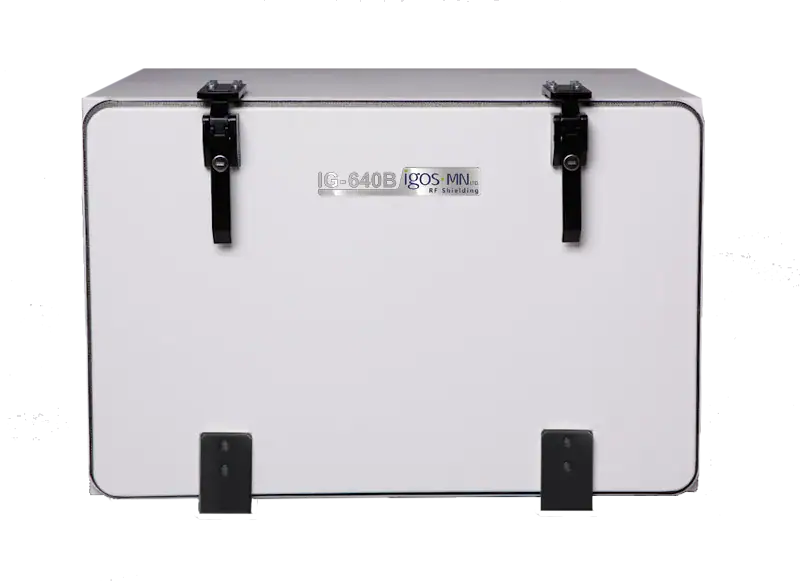

With an internal width of nearly 60cm, the IG-640B is unique in its class. It is specifically tailored for "Wide and Low" devices, such as 1U/2U server components or wide PCBs. This form factor allows for an organized lateral setup of the test bench inside the box, making it the preferred choice for complex integration testing that requires significant horizontal real estate.
• Testing according to MIL-STD 285
• A C.O.A will attach to each box.
• Final Attenuation level will set as per as the weak chosen connector
• Warranty – one year from delivering
• Ultra-Wide Form Factor: ~60cm width is optimized for 19" rack-mountable equipment and wide PCBs.
• Lateral Bench Setup: Allows engineers to spread out components side-by-side rather than stacking them.
• Integration Testing Focus: Perfect for connecting a main unit to peripherals (e.g., Set-Top Box + Display) inside one shield.
• Reinforced Shelf Option: Can be fitted with internal shelves to double the effective testing surface area.
• Lab-Grade Certification: Tested to meet rigorous commercial and military shielding standards.
• High Connector Capacity: Wide panel supports a massive array of RF and Data feed-throughs.
Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.
