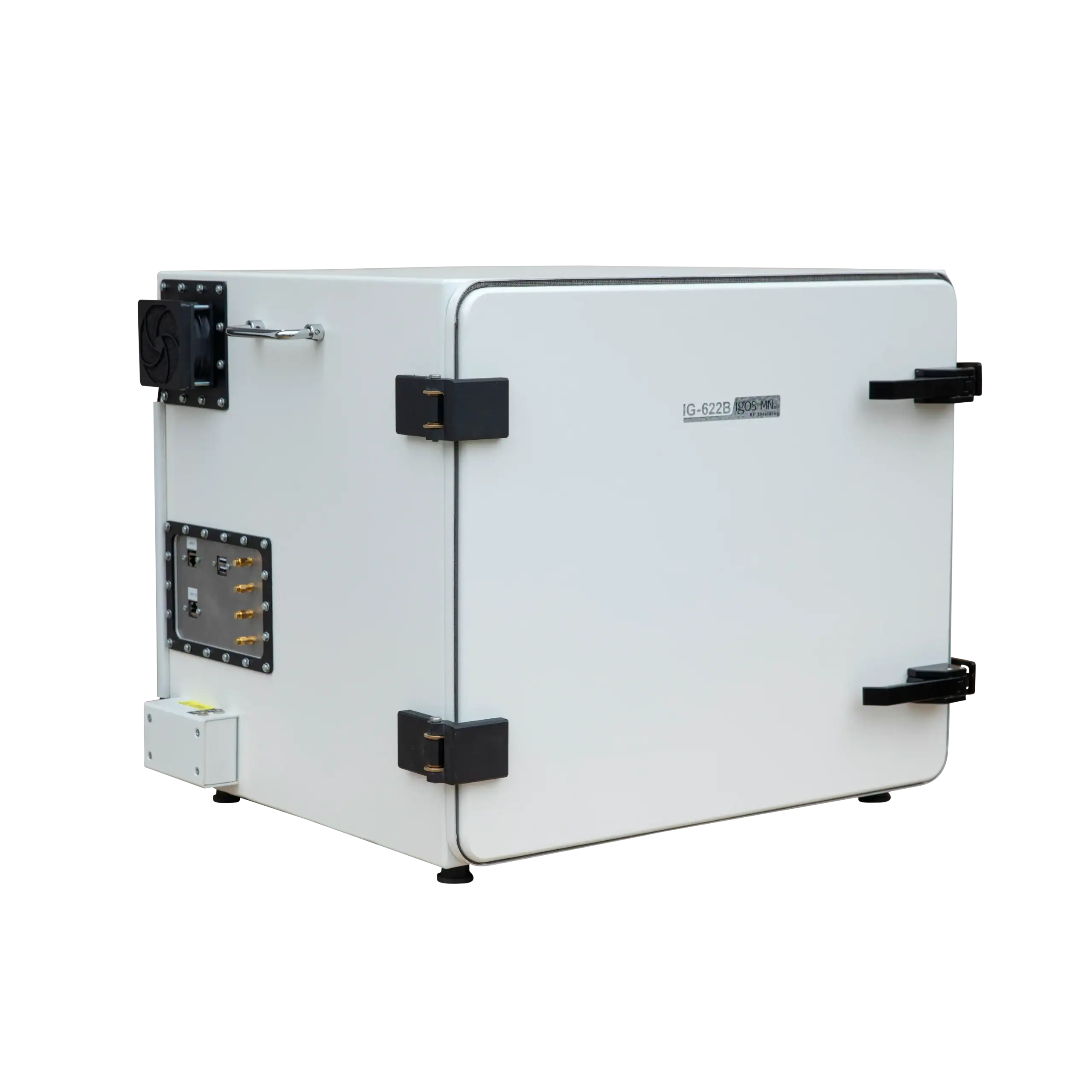

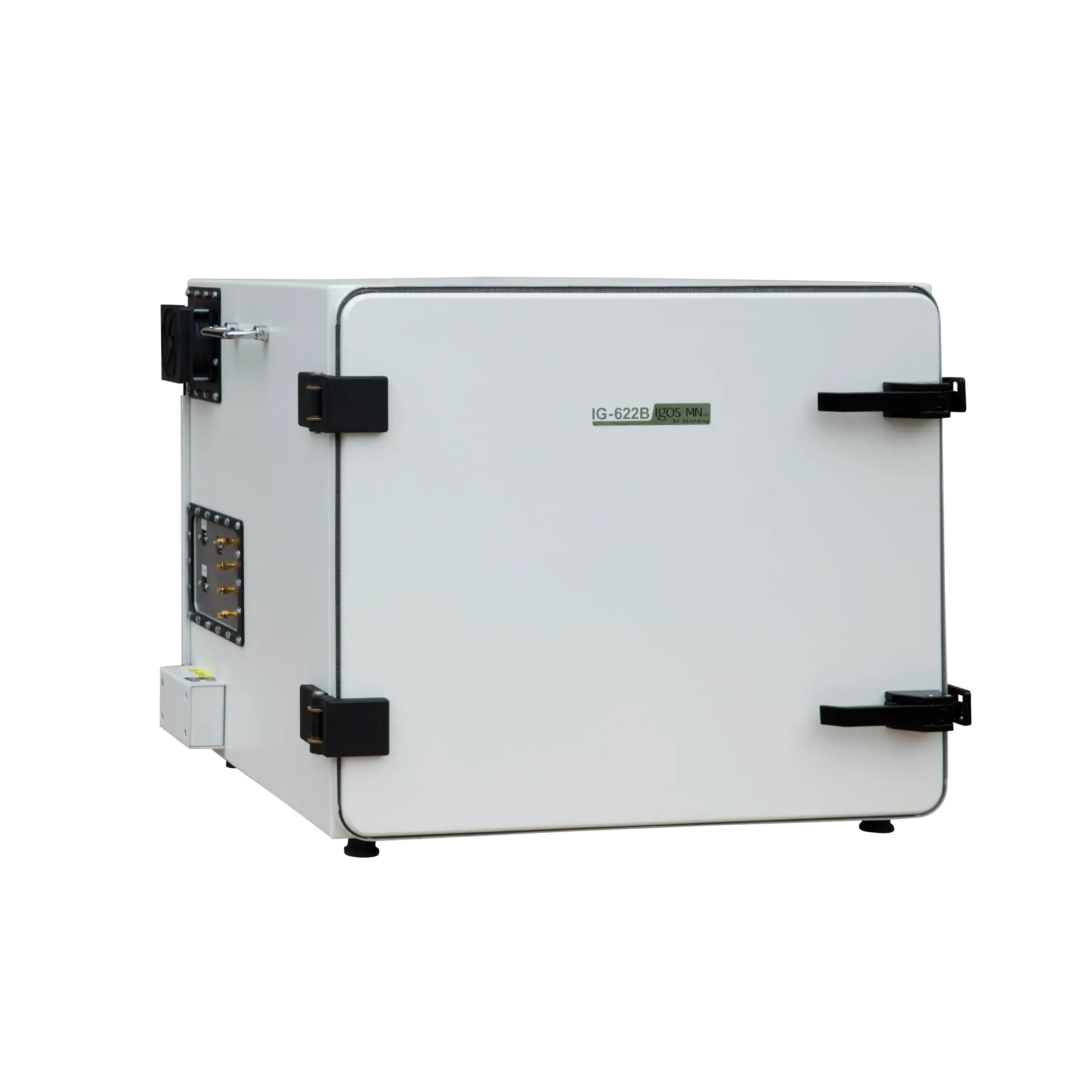

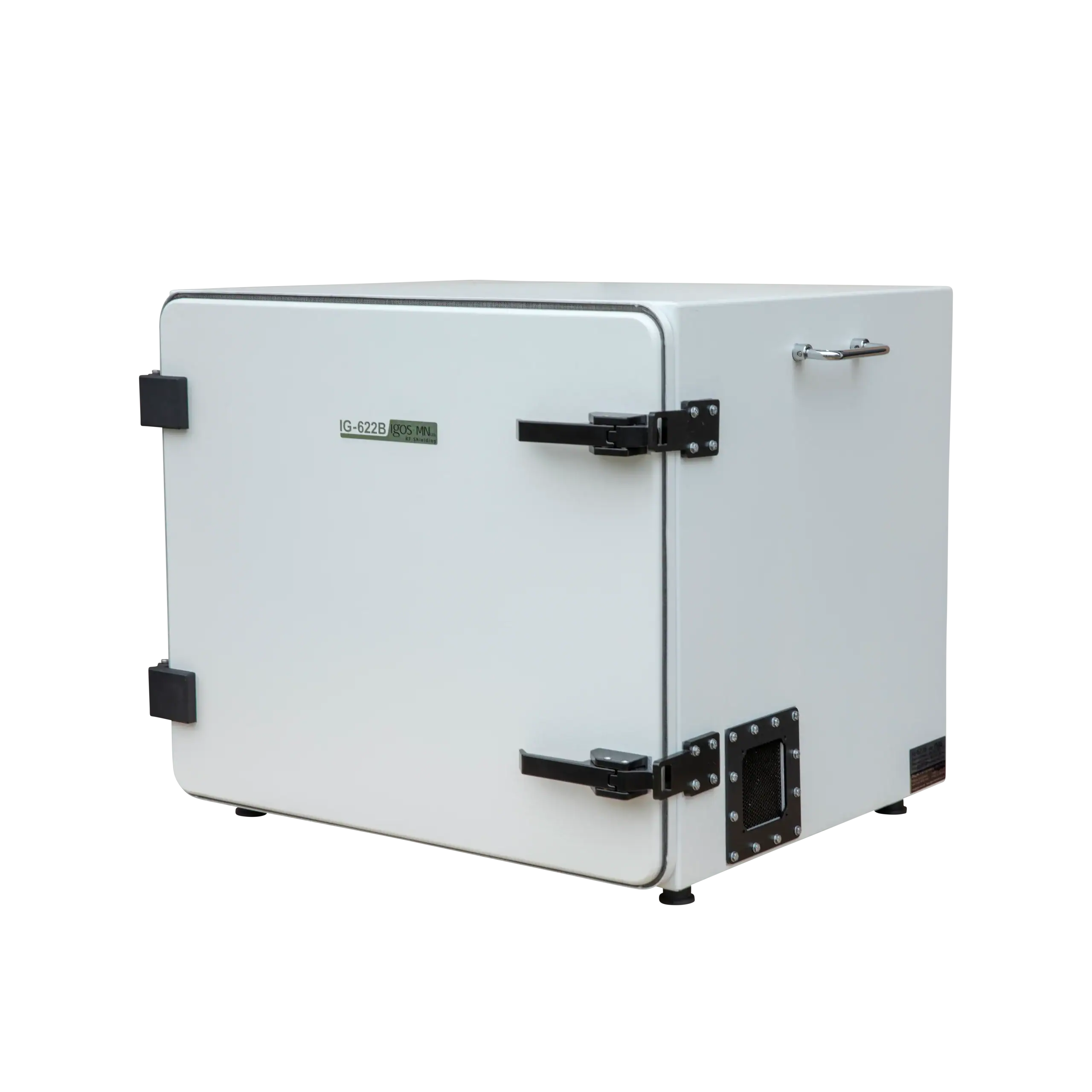

IG-622B

IG-622B--gallery--_43A9890
IG-622B--gallery--_43A9891-2
IG-622B--gallery--_43A9894
IG-622B--gallery--_43A9899
IG-622B--gallery--_43A9907
IG-622B--gallery--_43A9909
IG-622B--gallery--_43A9917

Color

RAL 9010

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
65
57
Height
53
47
Depth
53
47

Description

The IG-622B is the heavy lifter of the desktop series. It bridges the gap between desktop boxes and floor-standing cabinets. Designed for large-scale telecom equipment and industrial PCs, it allows engineers to test fully assembled units. Its reinforced chassis and wide door opening make loading heavy or awkward equipment safe and easy.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Massive Internal Volume: Bridges the gap between desktop boxes and full chambers, fitting large industrial equipment.

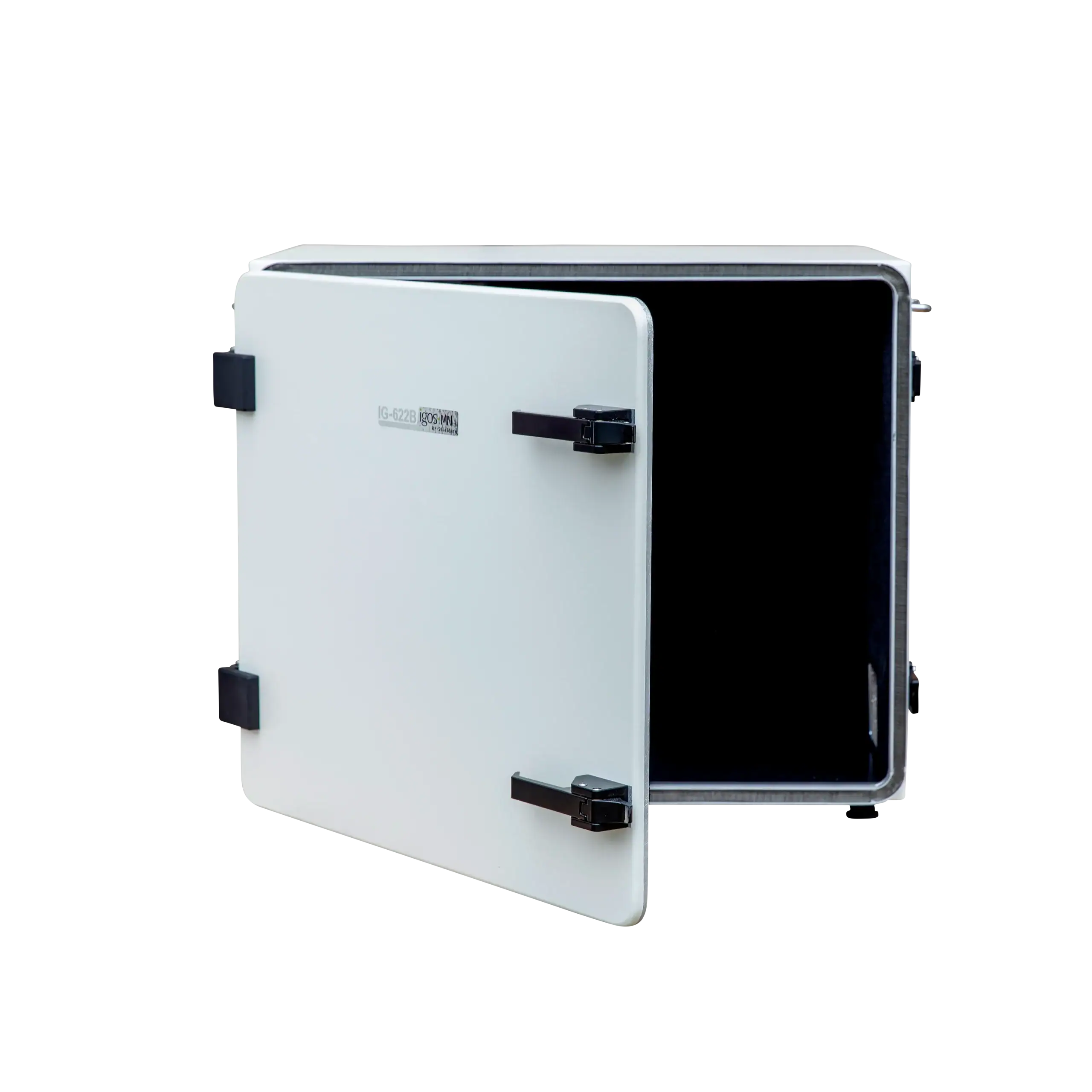

  • Wide Service Opening: Door opens fully to allow easy loading of heavy, awkward, or two-handed equipment.
  • MIMO Testing Space: Provides sufficient distance between antennas to perform accurate MIMO throughput tests.
  • Industrial Grade Chassis: Reinforced aluminum structure designed to withstand heavy loads and rough daily use.
  • Advanced Filter Options: Supports high-current power filters and high-speed data filters for telecom equipment.
  • Future-Proof Size: Large enough to accommodate future product generations that may increase in physical size.

RF Attenuation

0.1-8GHz <80dB

RF absorber

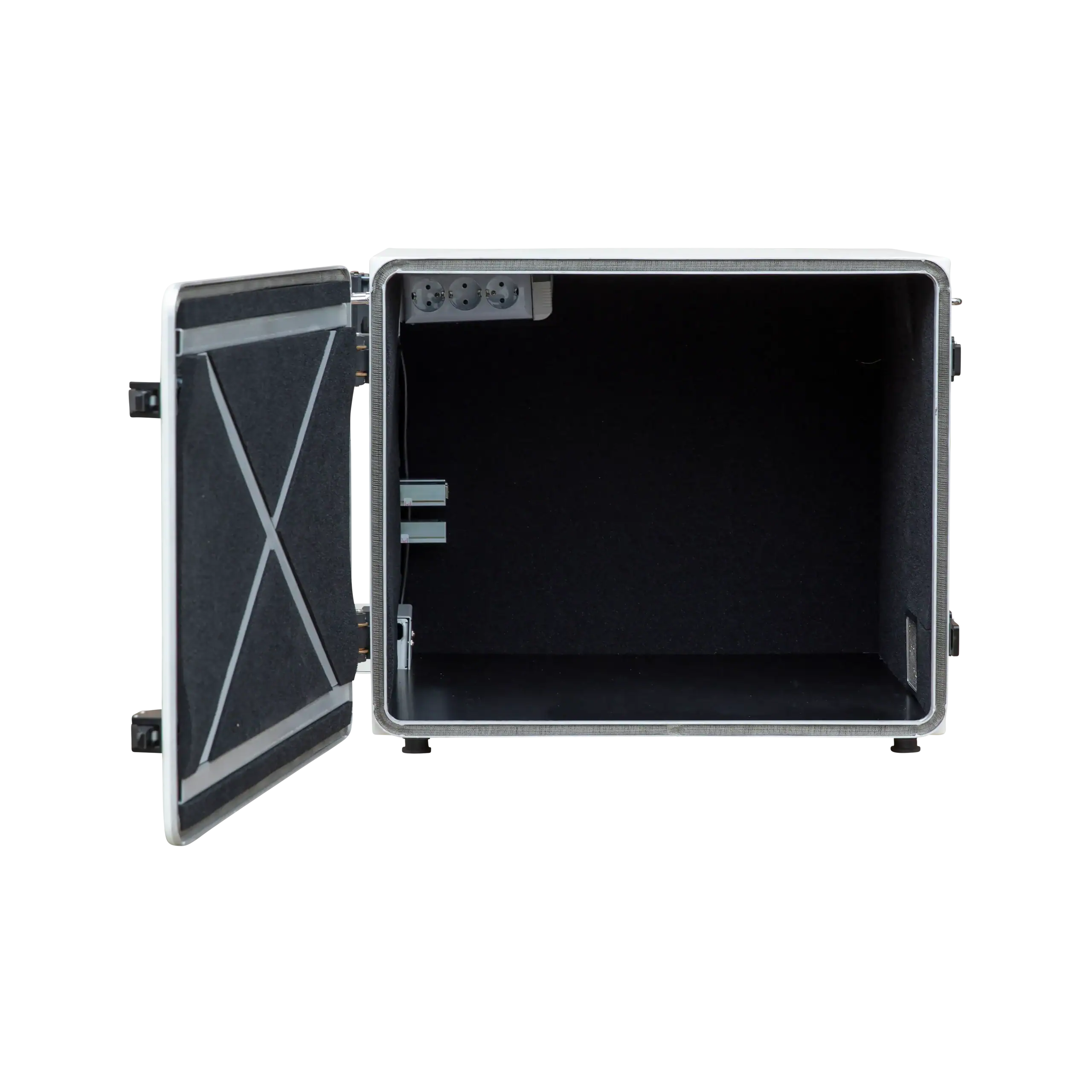

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
