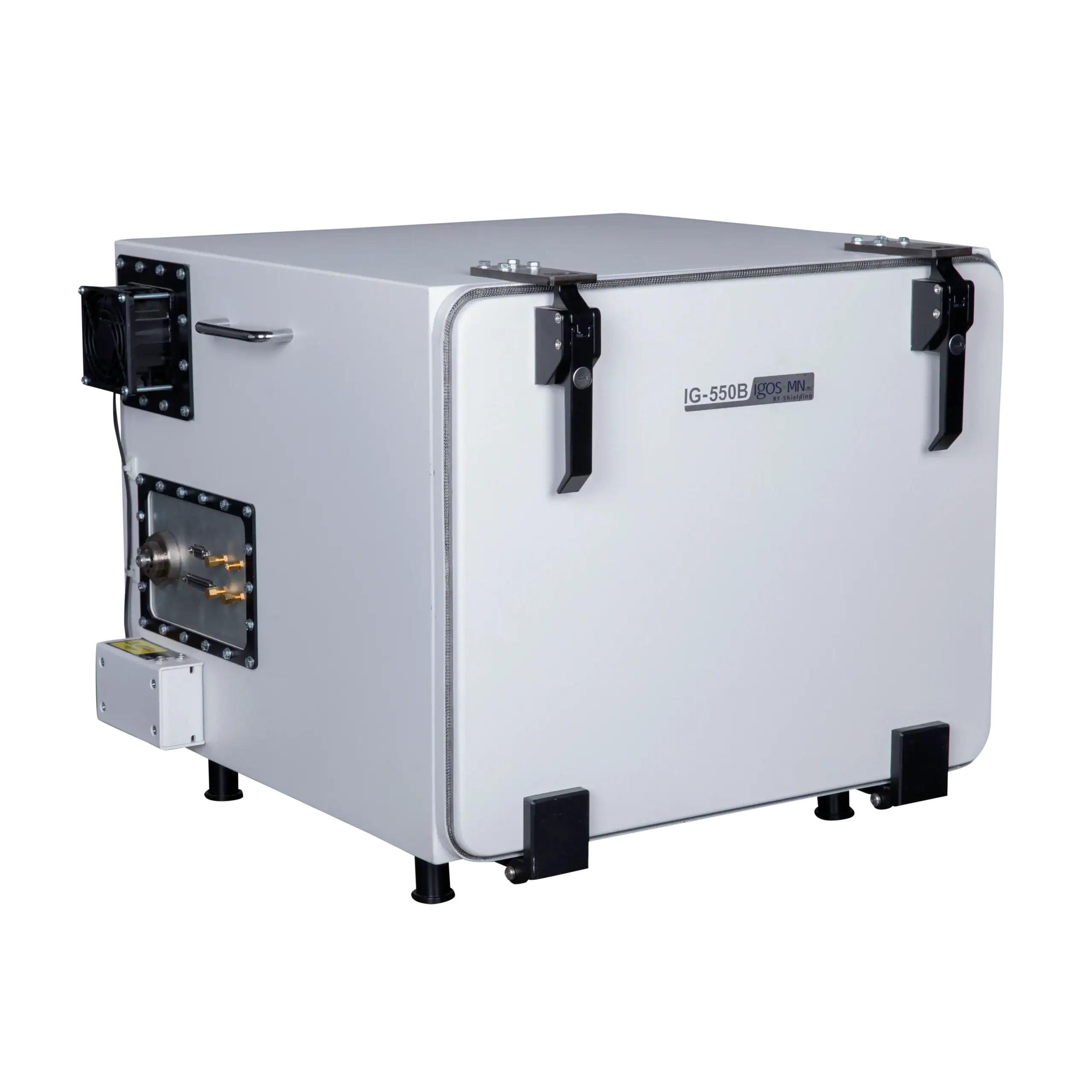

IG-550B

IG-550B--gallery--_43A7373

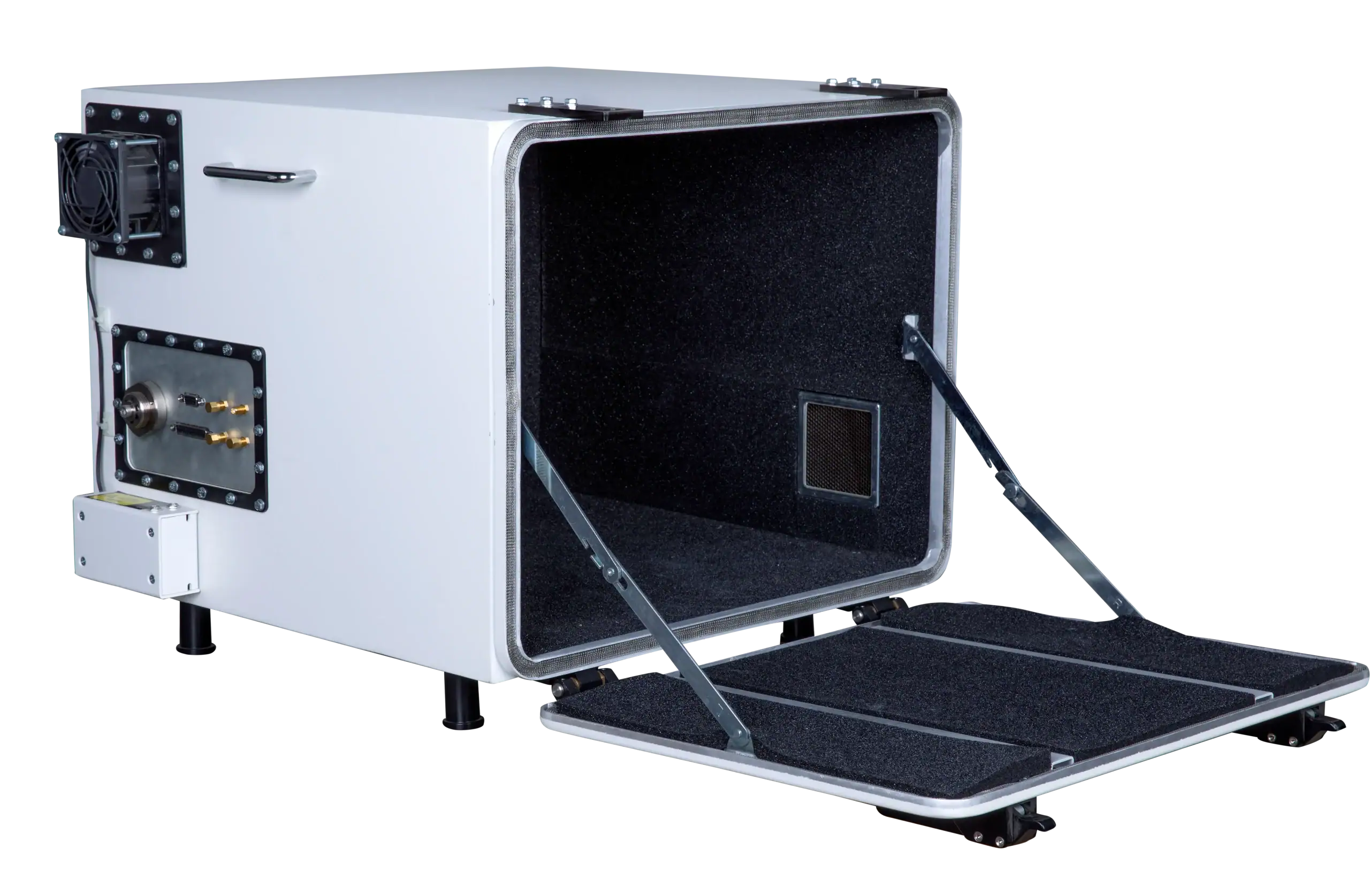

IG-550B--gallery--_43A7381

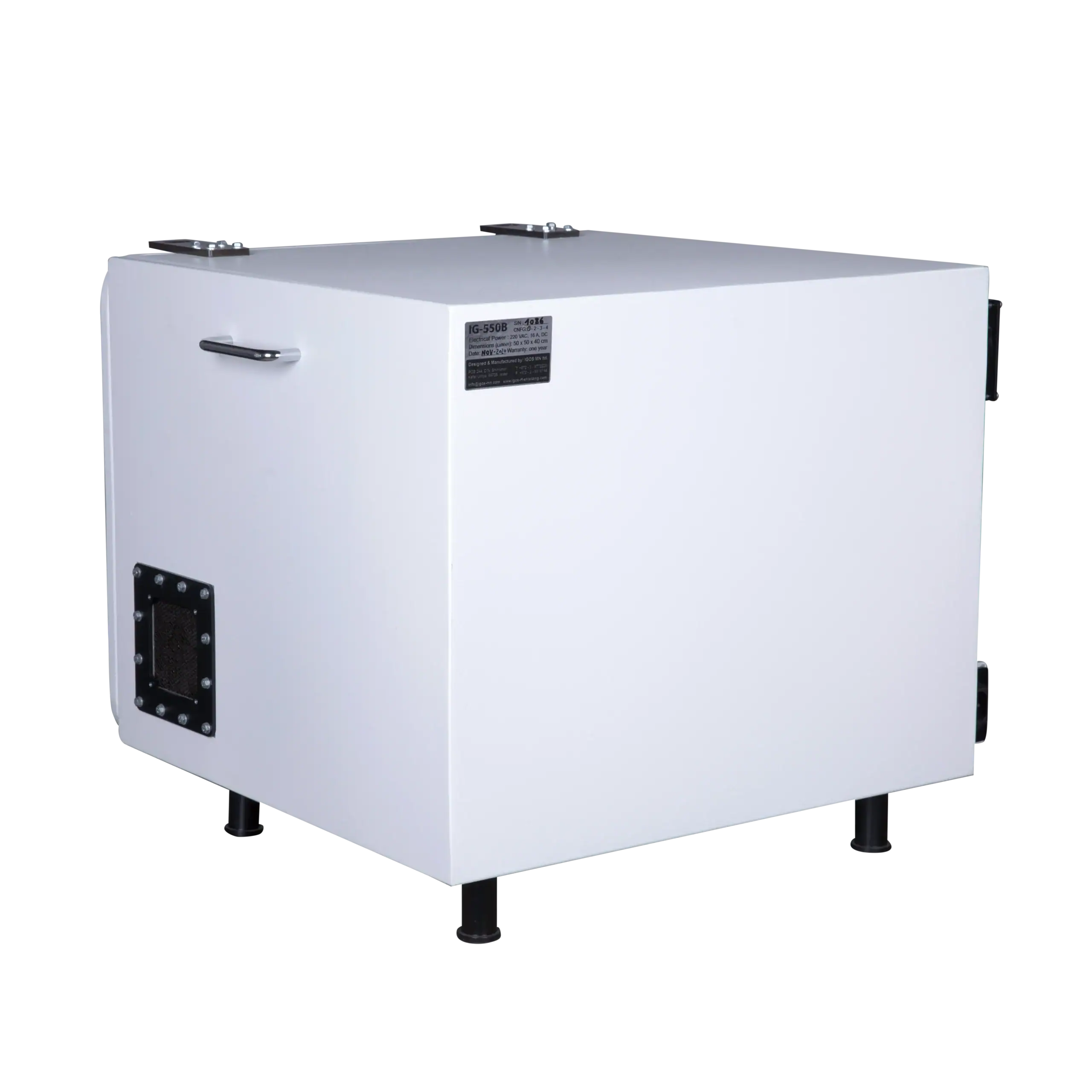

IG-550B--gallery--_43A7384
IG-550B--gallery--_43A7386

Color

RAL 9010

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
57
47
Height
46
37
Depth
53
47

Description

The IG-550B is engineered for versatility in system-level testing. With dimensions approaching 50cm in all directions, it easily accommodates large fixtures or multiple devices for batch testing. The unit features a heavy-duty dual-handle locking system, ensuring uniform pressure on the gaskets for consistent, long-term shielding performance.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • arge Cubic Capacity: Symmetrical internal dimensions (~48cm) allow for versatile positioning of large DUTs.
  • Dual-Handle Locking System: Ensures uniform pressure across the entire door frame for a perfect RF seal.
  • Multi-DUT Capability: Spacious enough to test several devices at once (Batch Testing) to increase throughput.
  • High-Power Handling: Suitable for testing high-power transmitters due to excellent shielding and heat dissipation options.
  • Wide Frequency Range: Effective isolation from low frequencies up to high GHz bands.
  • Custom Fixture Integration: Flat floor and walls allow for easy mounting of shelves, hooks, or custom holding fixtures.

RF Attenuation

0.1-8GHz <80dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

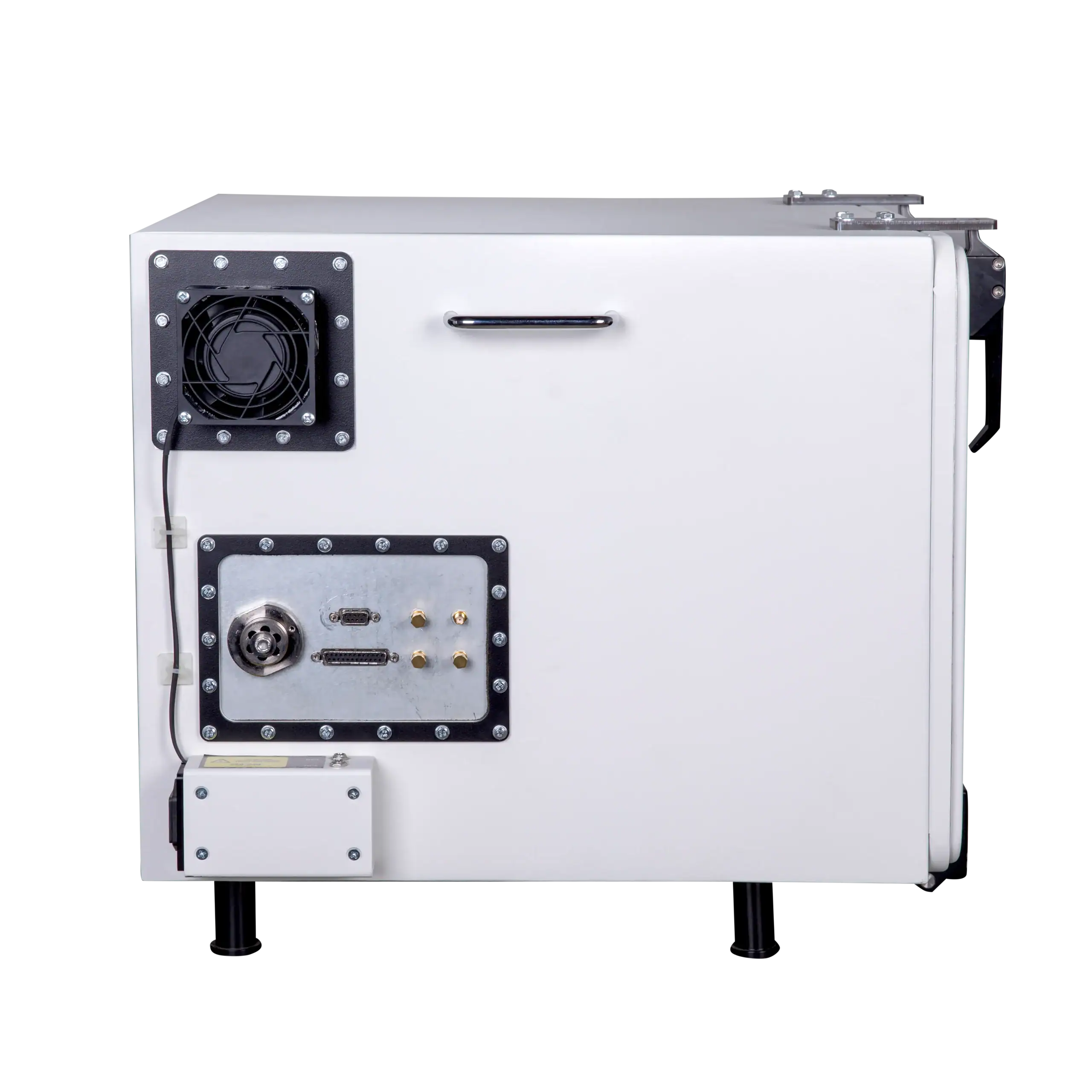

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
