IG-514E

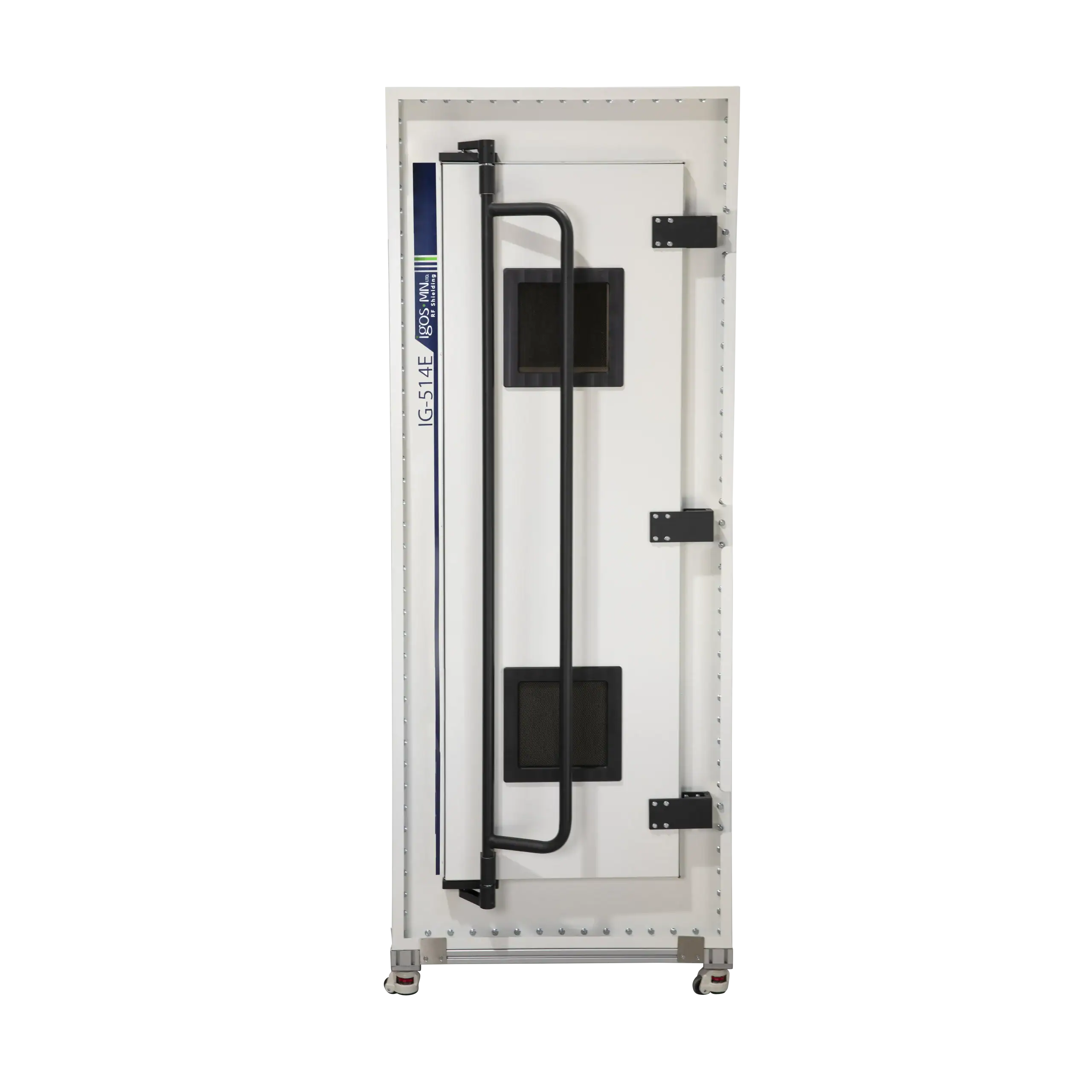

IG-514E--gallery--_43A4344

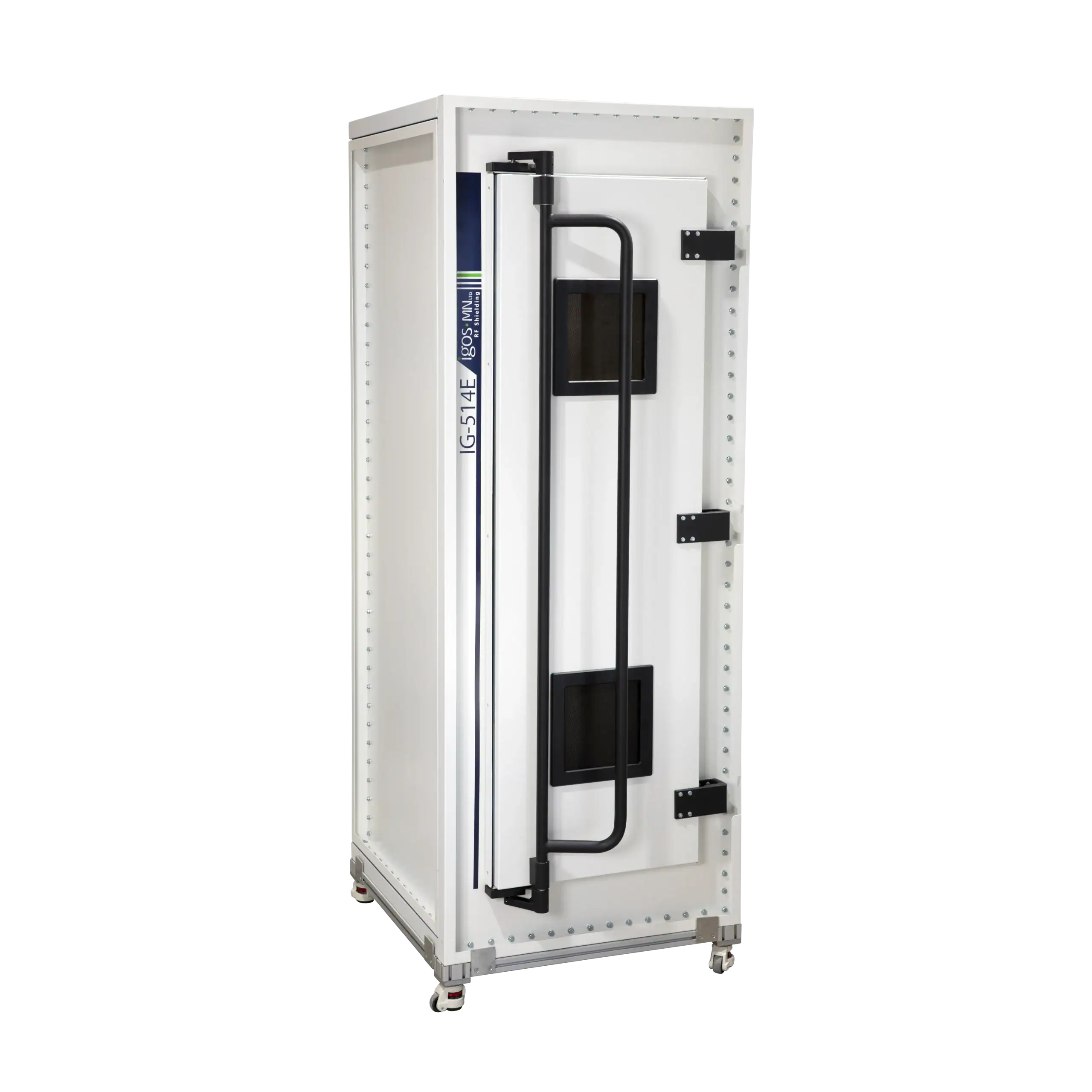

IG-514E--gallery--_43A4356

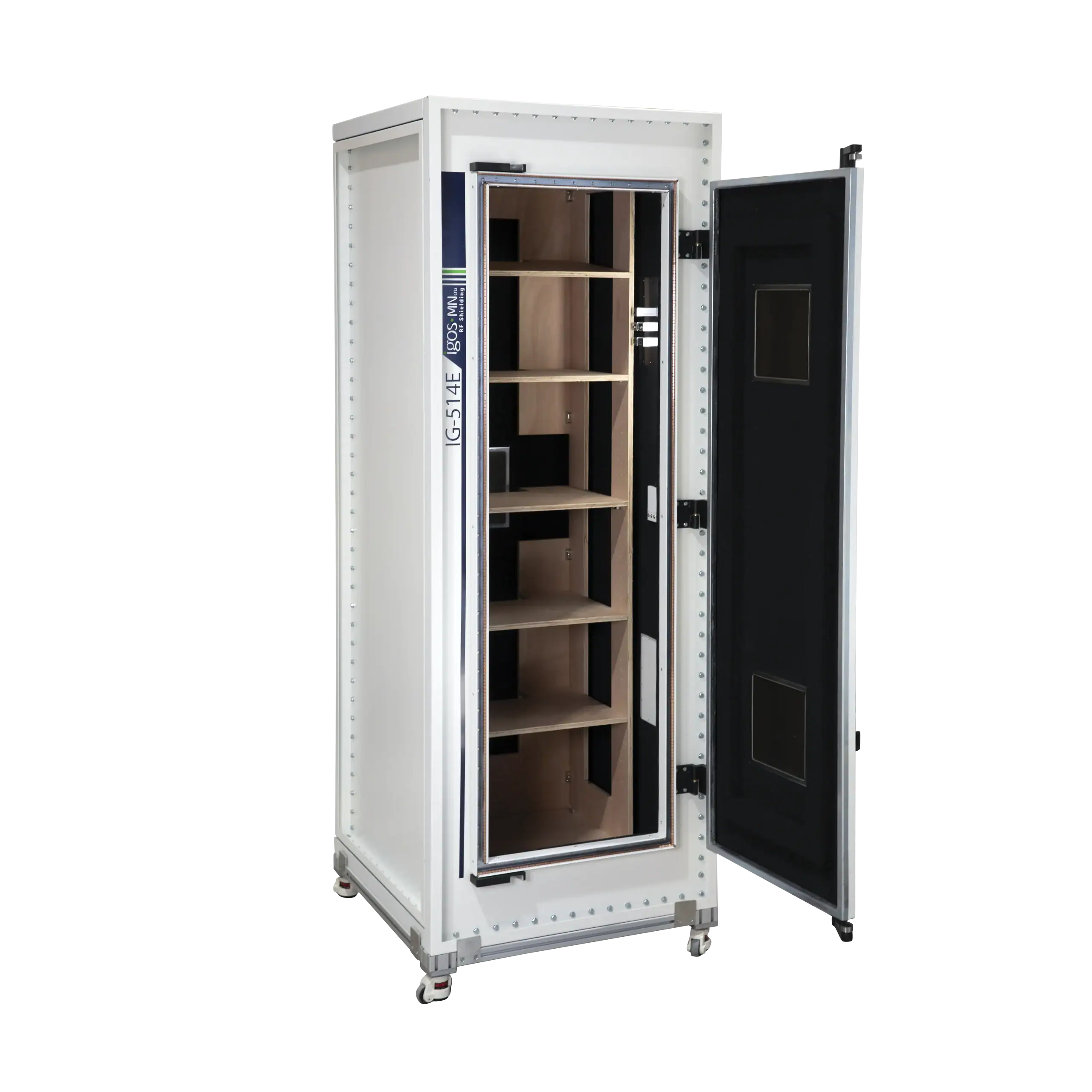

IG-514E--gallery--_43A4360

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm) External Internal
Width
80
76
Height
220
216
Depth
80
76

Description

The IG-514E offers a unique cubic form factor in the high-performance range. This shape is particularly beneficial for testing devices that are not flat, such as spherical sensor arrays, stacked PCB towers, or complex electromechanical assemblies. It provides the freedom to arrange antennas and probes in 3D space around the DUT while maintaining a fortress-like barrier against RF interference.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Cubic Geometry: Optimizes space for tall or boxy devices that don't fit in flat enclosures.
  • 3D Testing Freedom: Allows for flexible placement of antennas and probes around the subject.
  • 120dB Isolation: Maintains the E-Series standard of extreme isolation for sensitive measurements.
  • Ease of Access: Wide door opening simplifies the setup of complex fixtures inside the box.
  • Vibration Resistant: Sturdy construction minimizes micro-phonics and structural vibration.
  • Versatile Mounting: Interior walls support the mounting of brackets and shelves for custom setups.

RF Attenuation

0.1-8GHz <90dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
