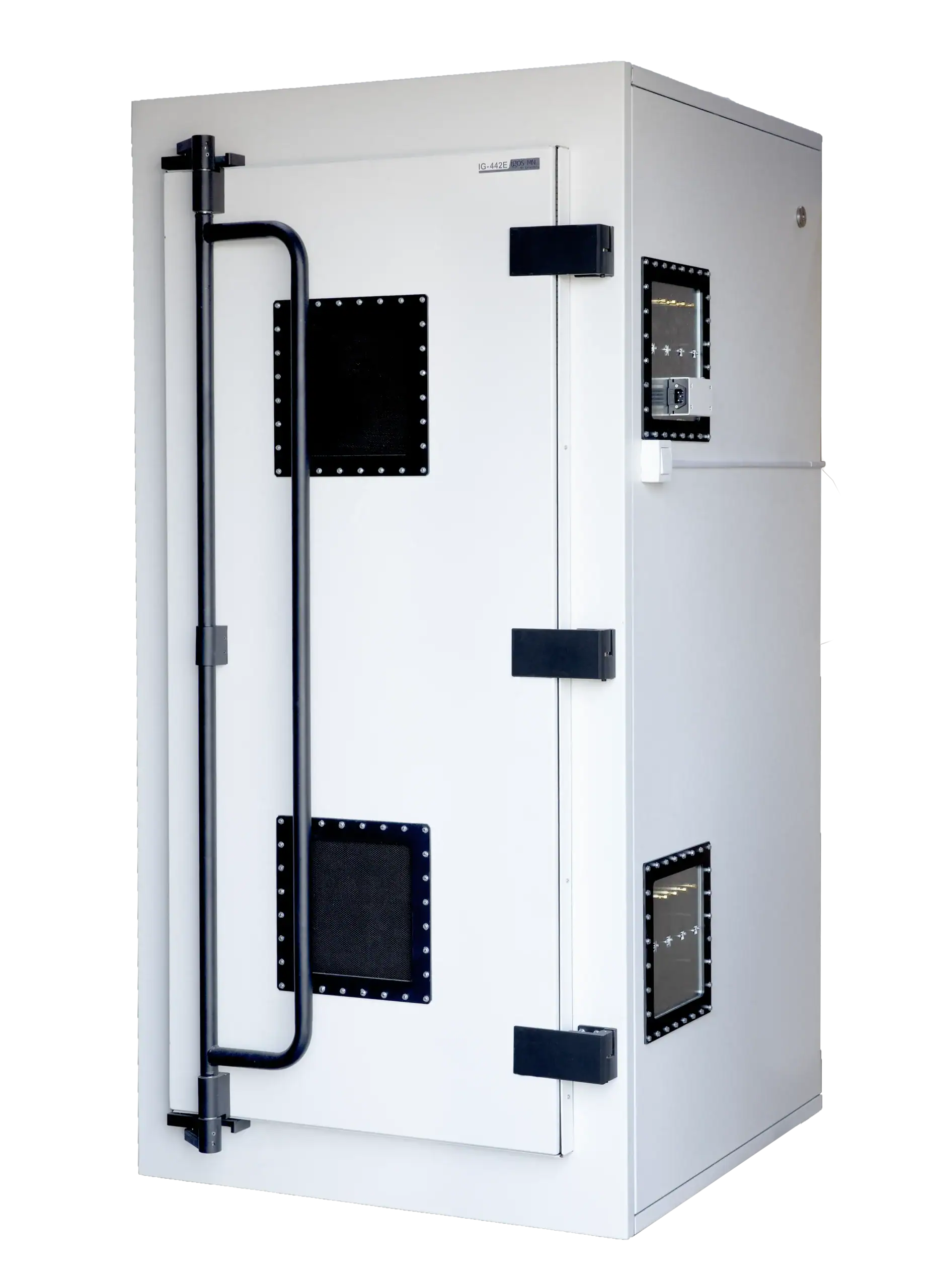

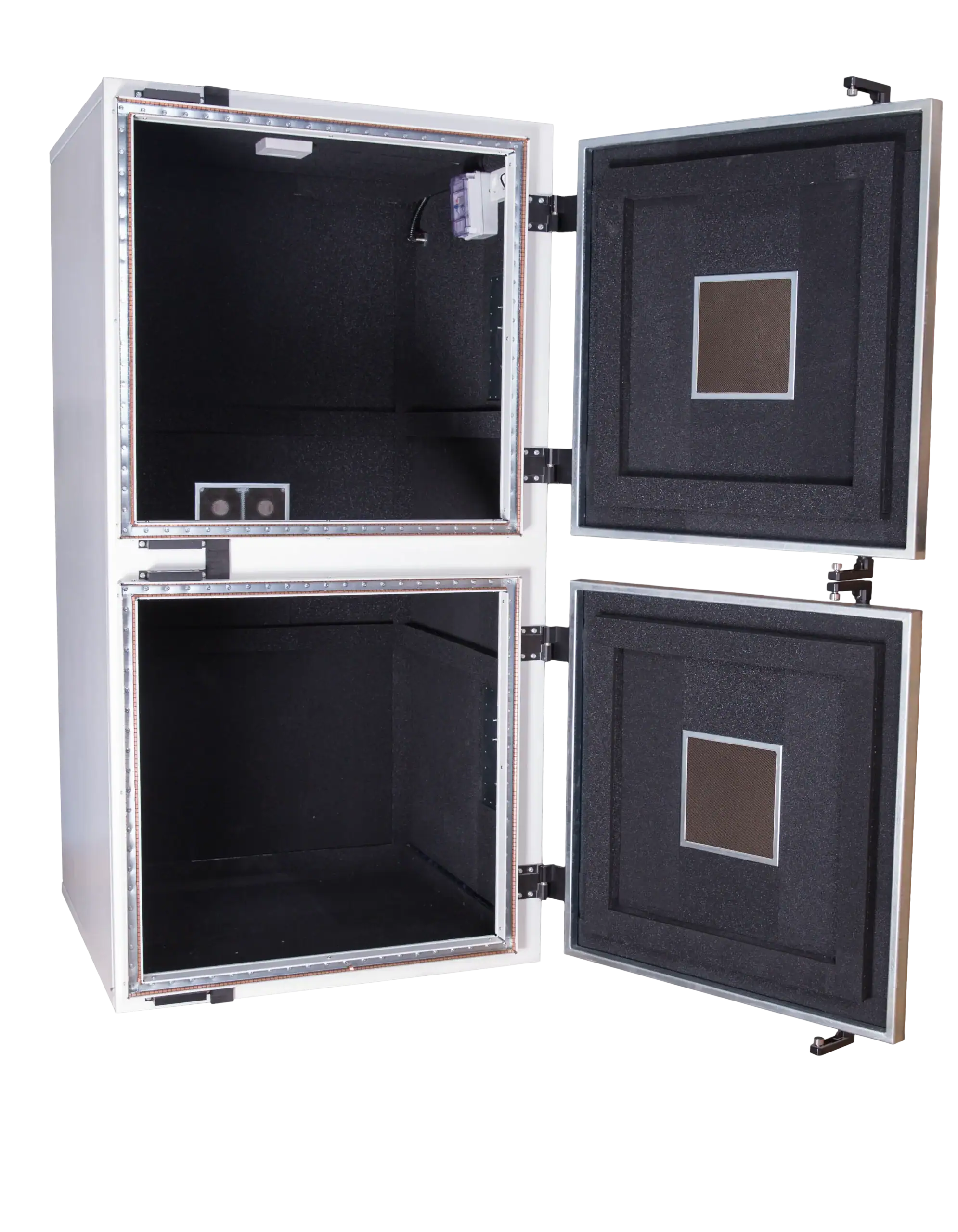

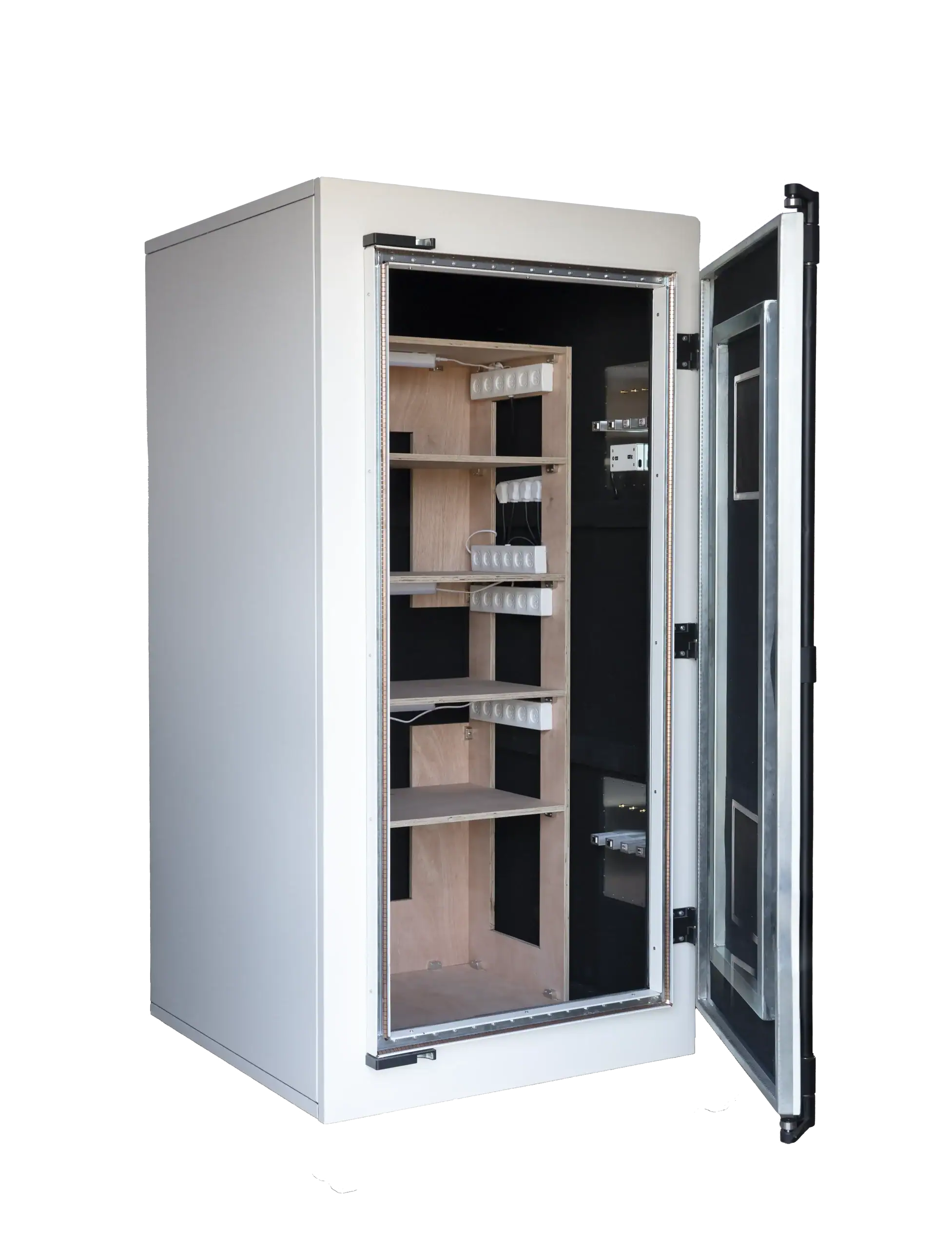

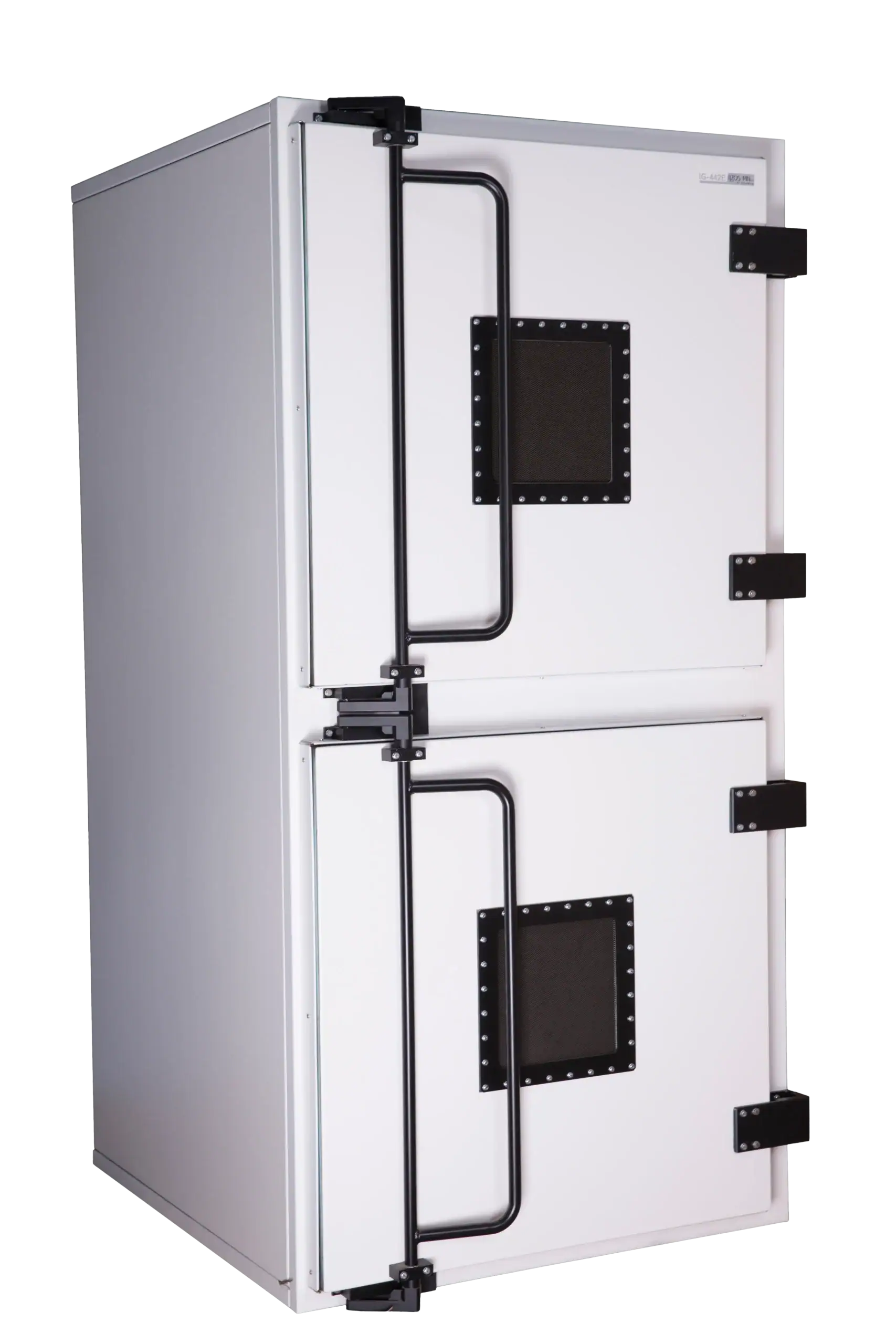

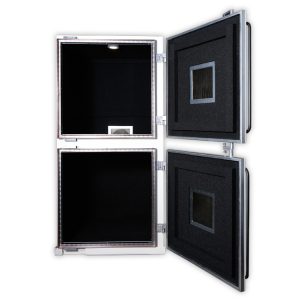

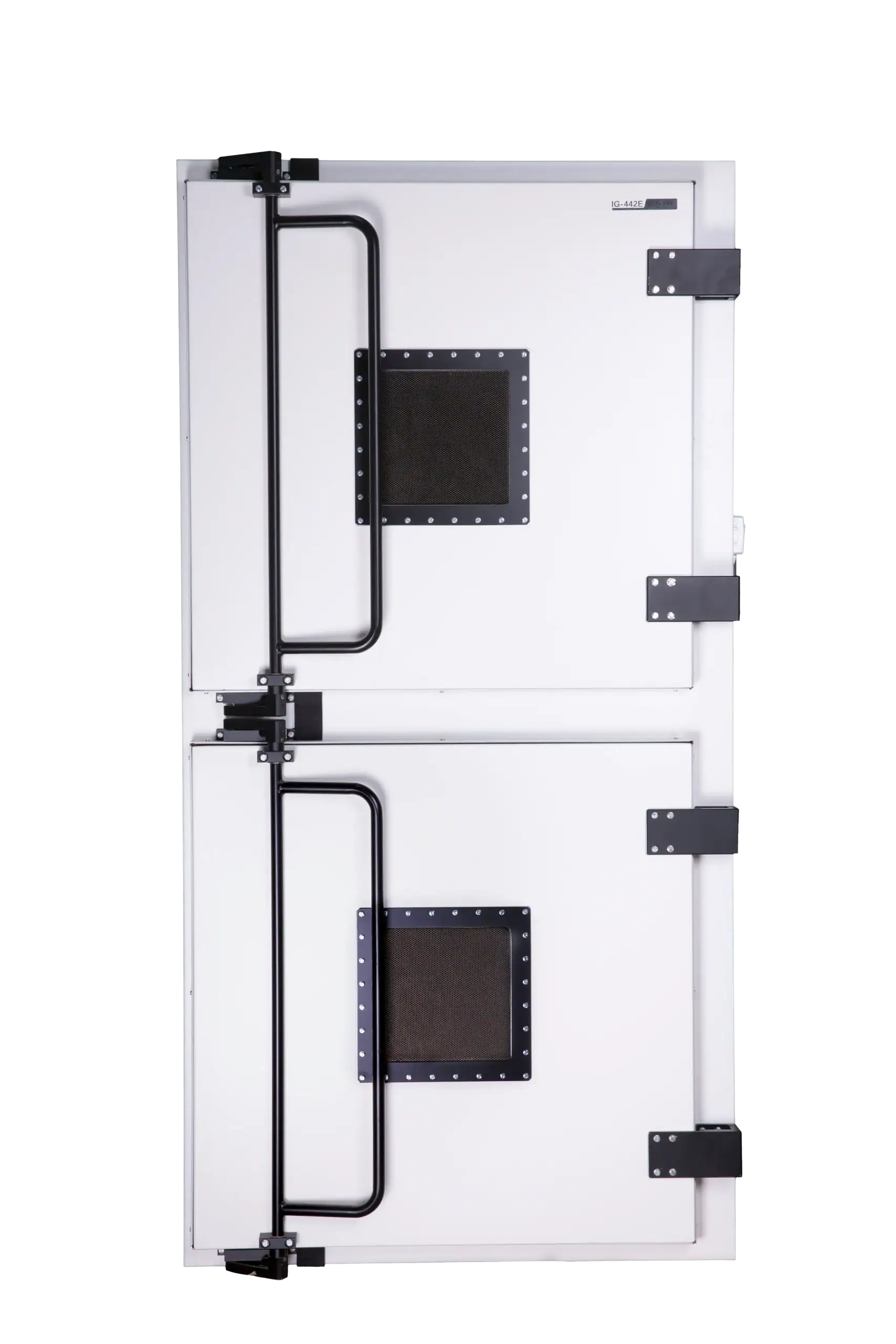

IG-442E

IG-442E--gallery--_43A2310
IG-442E--gallery--_43A2326
IG-442E--gallery--_D2A1982
IG-442E--gallery--_D2A2035
IG-442E--gallery--_D2A2052

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm) External Internal
Width
100
97
Height
220
217
Depth
100
97

Description

When you need to test a high-end router, a small cell base station, or a batch of devices simultaneously with zero margin for error, the IG-442E is the answer. This box combines a large internal capacity with the E-Series' signature 120dB attenuation. It is frequently used in certification laboratories where "pass/fail" results depend on the absolute integrity of the shielding.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Certification Grade: Meets strict shielding effectiveness standards required for regulatory compliance testing.
  • High Volume Capacity: Fits large networking gear or fixtures holding multiple smaller devices.
  • Superior Door Mechanism: Features a specialized locking system that applies even pressure across large seals.
  • Low Reflection: Fully lined with high-performance absorbers to simulate open-air conditions.
  • Heavy Payload Support: Reinforced floor and shelf options for heavy industrial equipment.
  • Advanced I/O: Supports complex feed-throughs including HDMI 4K, 10GbE, and USB-C.

RF Attenuation

0.1-8GHz <90dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
