IG-415B

IG-415B--gallery--_43A5014-Edit
IG-415B--gallery--_43A5019-Edit
IG-415B--gallery--_43A5034-Edit
IG-415B--gallery--_43A5041-Edit
IG-415B--gallery--_43A5060

Color

RAL 9010

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
45
42
Height
23
19
Depth
30
22

Configuration 2

Dimension (cm) External Internal
Width
50
47
Height
23
19
Depth
30
22

Configuration 3

Dimension (cm) External Internal
Width
50
47
Height
23
19
Depth
30
22

Description

The IG-415B stands out with its ergonomic Top-Loading design, allowing engineers to place and adjust devices from above with maximum visibility. This unit is specifically enhanced for high-frequency performance, making it an excellent choice for 5G and mmWave development. Its sleek form factor also makes it a favorite for sales demonstrations and trade shows where "pop-up" testing is required.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

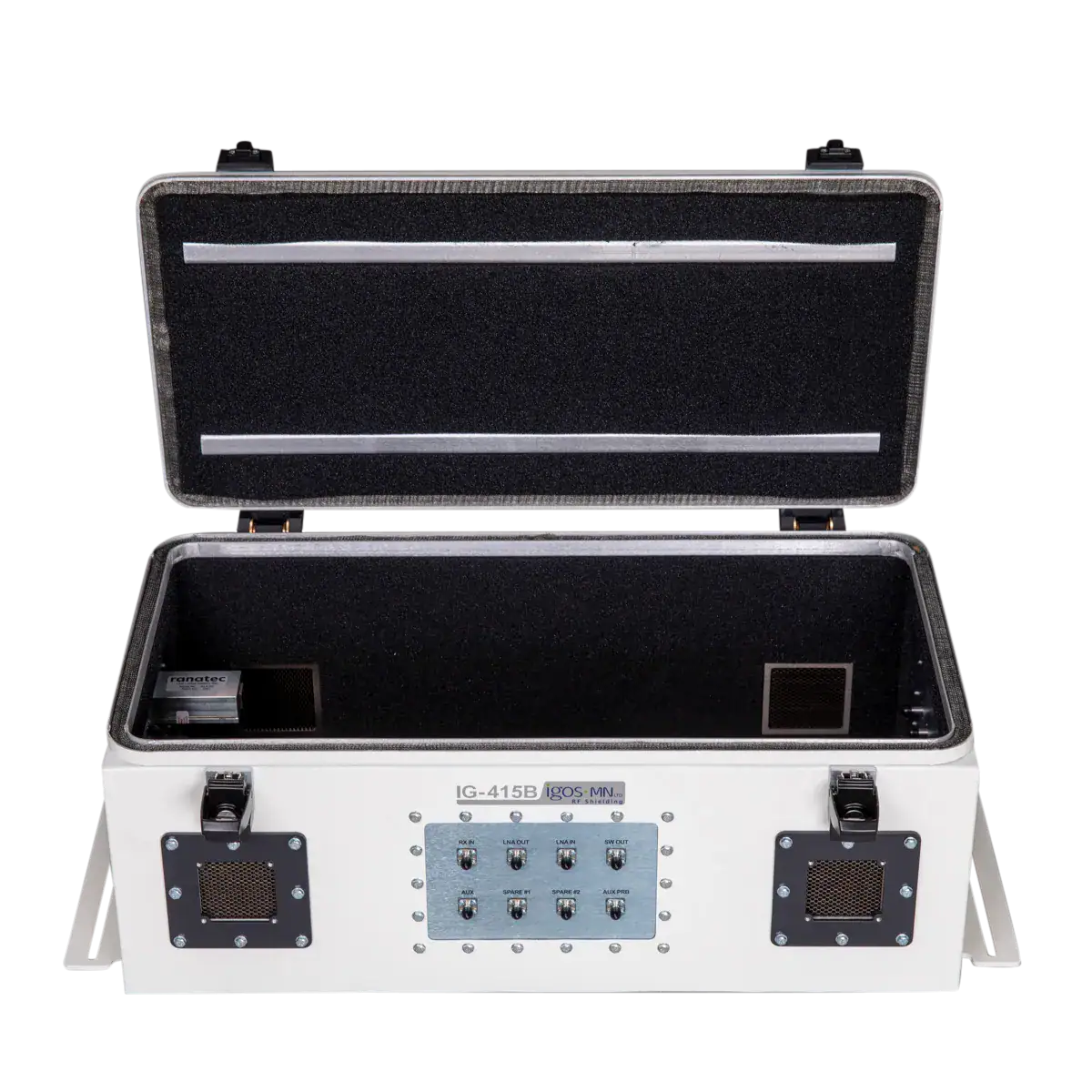

  • Top-Loading Access: Ergonomic design allows users to place devices from above, ideal for delicate setups or frequent swaps.
  • mmWave Optimization: Enhanced shielding capabilities for high-frequency testing (24GHz - 50GHz+).
  • Demo & Presentation Friendly: Sleek design provides excellent visibility and access, perfect for client demonstrations.
  • Fixture Compatibility: Flat bottom plate makes it easy to mount custom jigs and fixtures for precise DUT positioning.
  • Reduced Footprint: Top opening means no swing-out door clearance is needed, saving lateral desk space.
  • Precision Sealing: Gravity-assisted sealing mechanism helps ensure a consistent RF tight closure.

RF Attenuation

0.1-8GHz <80dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
