Product Image

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm) External Internal
Width
153
120
Height
167
153
Depth
225
180

Quality

  • Test Data sheet will attach to the Enclosure
  • Testing according to IEEE 2999 standard
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

IG-334E

Description

IG - 334E is a special RF box platform solution for RF systems in Lab testing. The chamber lends itself to a variety of uses at the working
area and allowed the user flexibility. The IG-334E is a portable and modular anechoic chamber with RF, mmW Shielding effectiveness and reflection absorption performances. The IG-334E box platform is design for testing various range of Radar system on wheels easy to use.

Key Features

  • Fast, reliable EMI/RFI testing and verification, while providing effective shielding of -60dB attenuation.

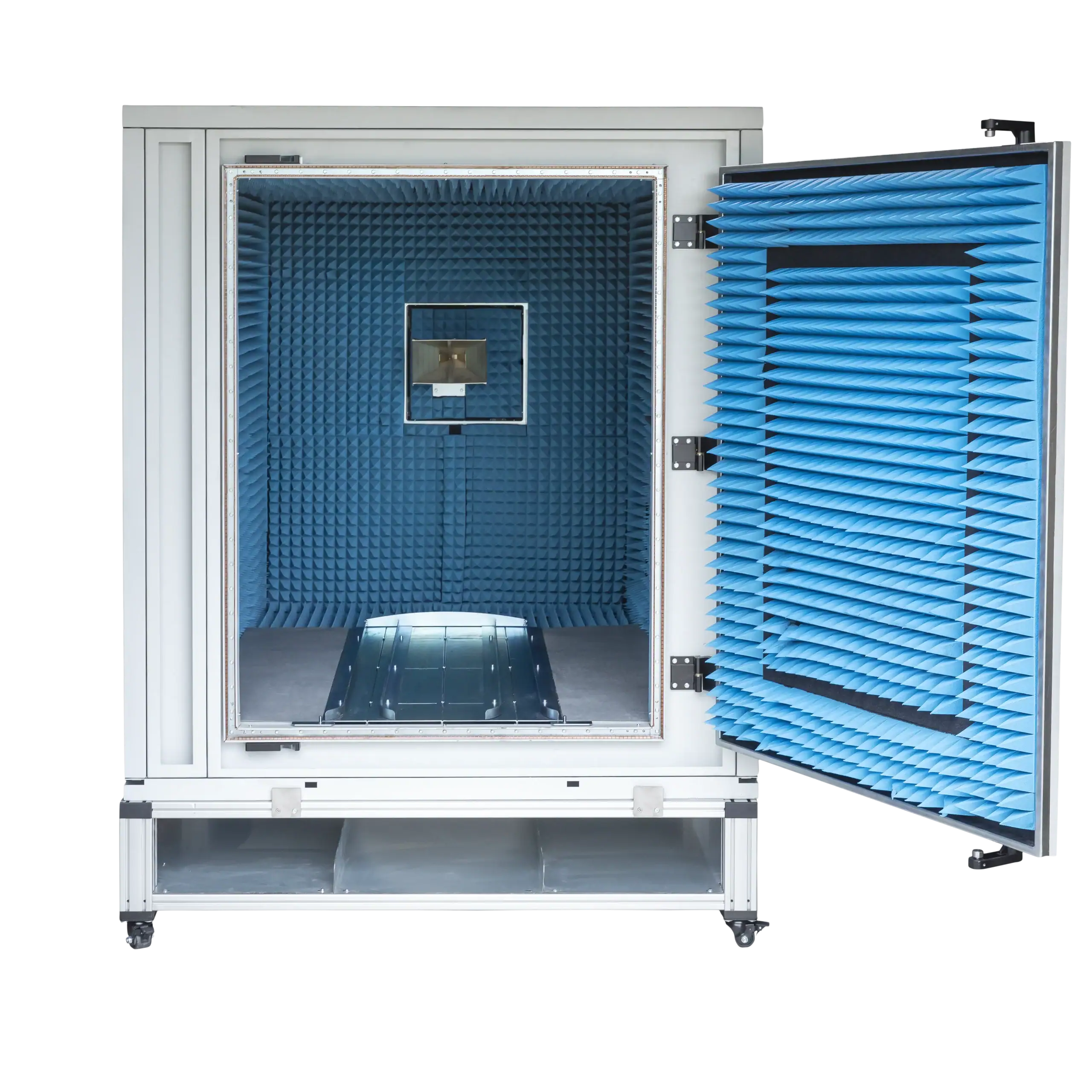

  • RF absorbers inside: pyramidal 4” absorbers rubberized.
  • Ramp in the front door for antenna insertion

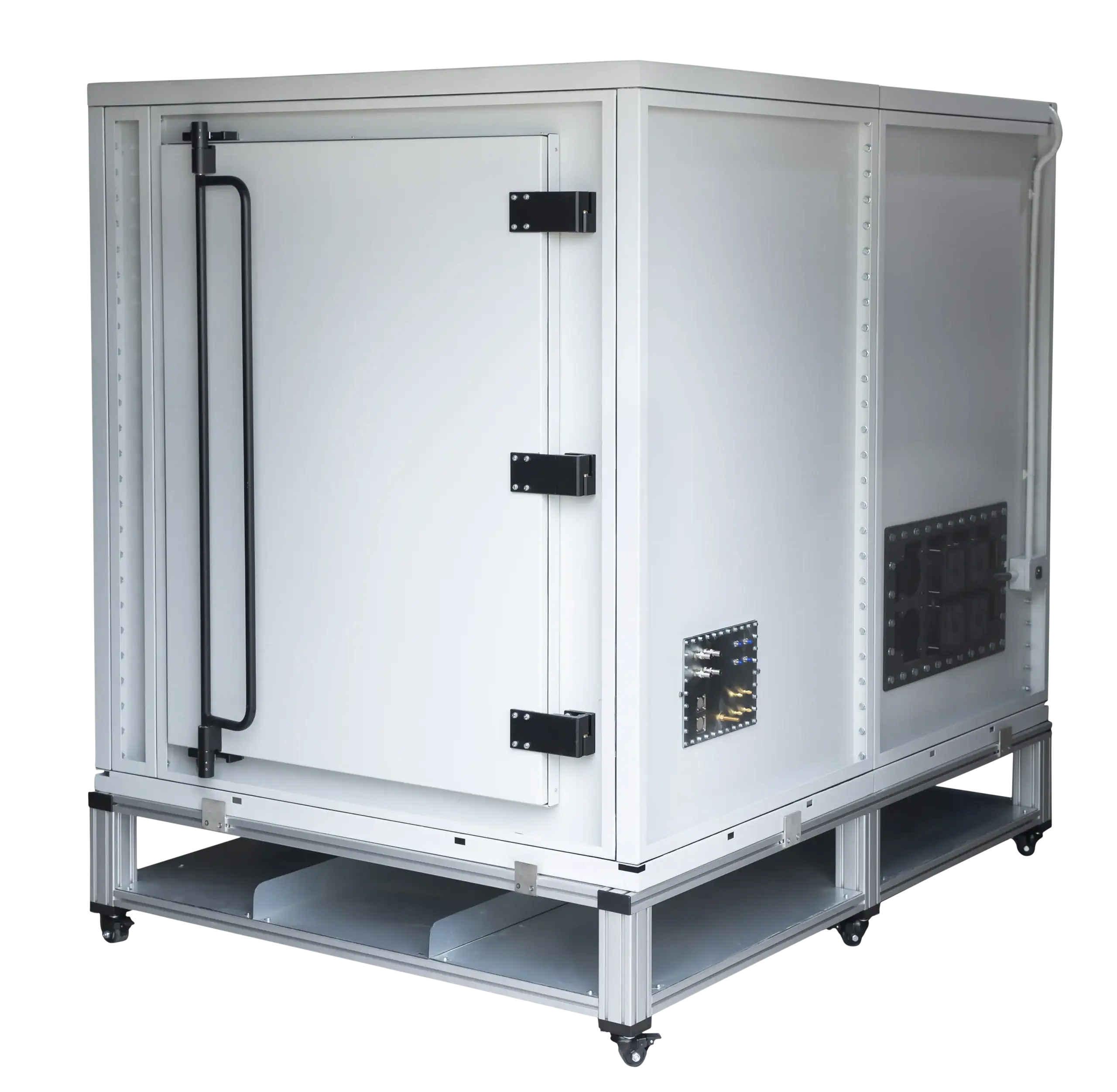

  • Easy to move- platform on heavy duty wheels.

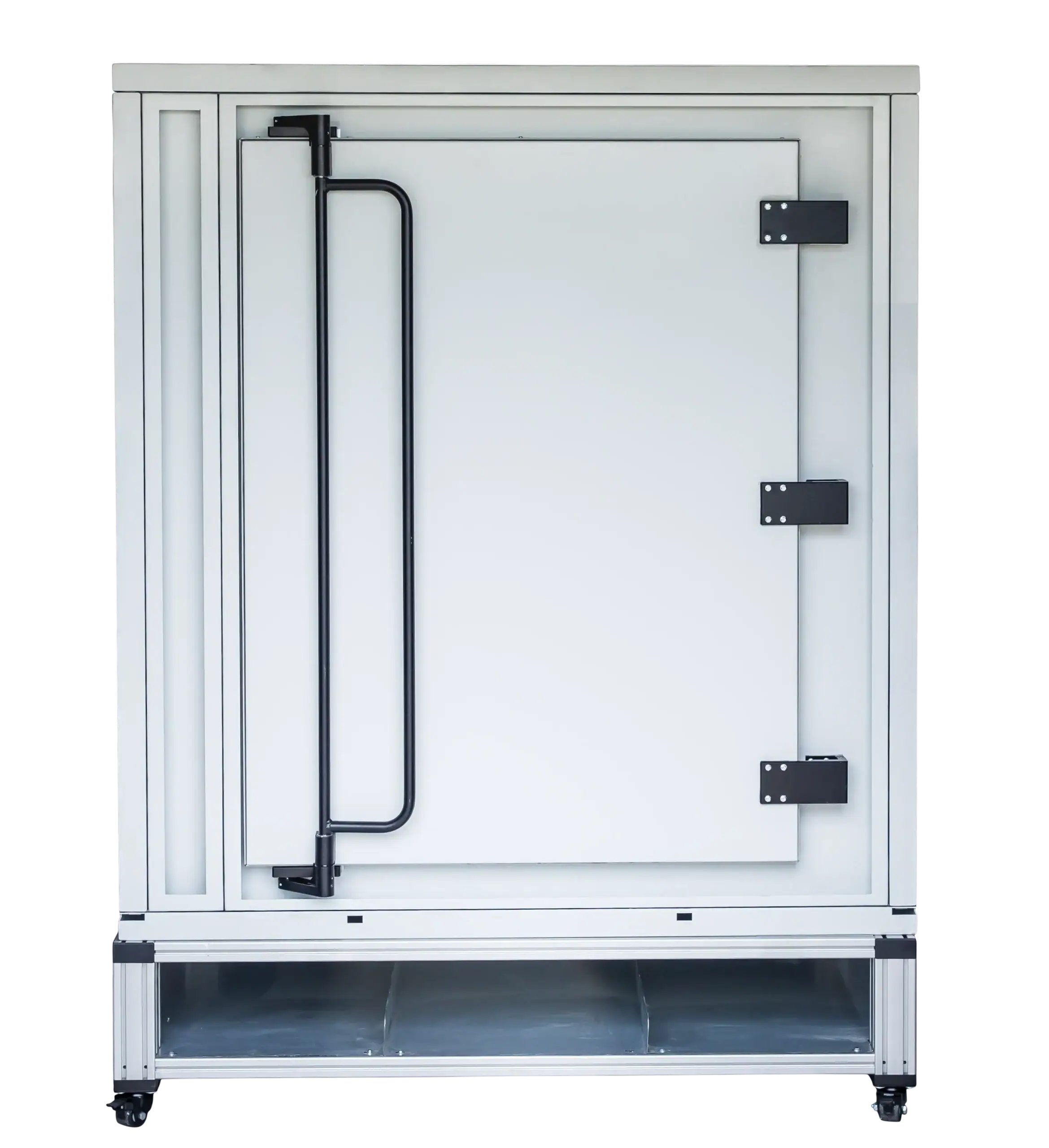

  • Door opening: Manual, Frontal opening.
  • 4 lifting points on top corners.
  • Bracket for horn antenna.

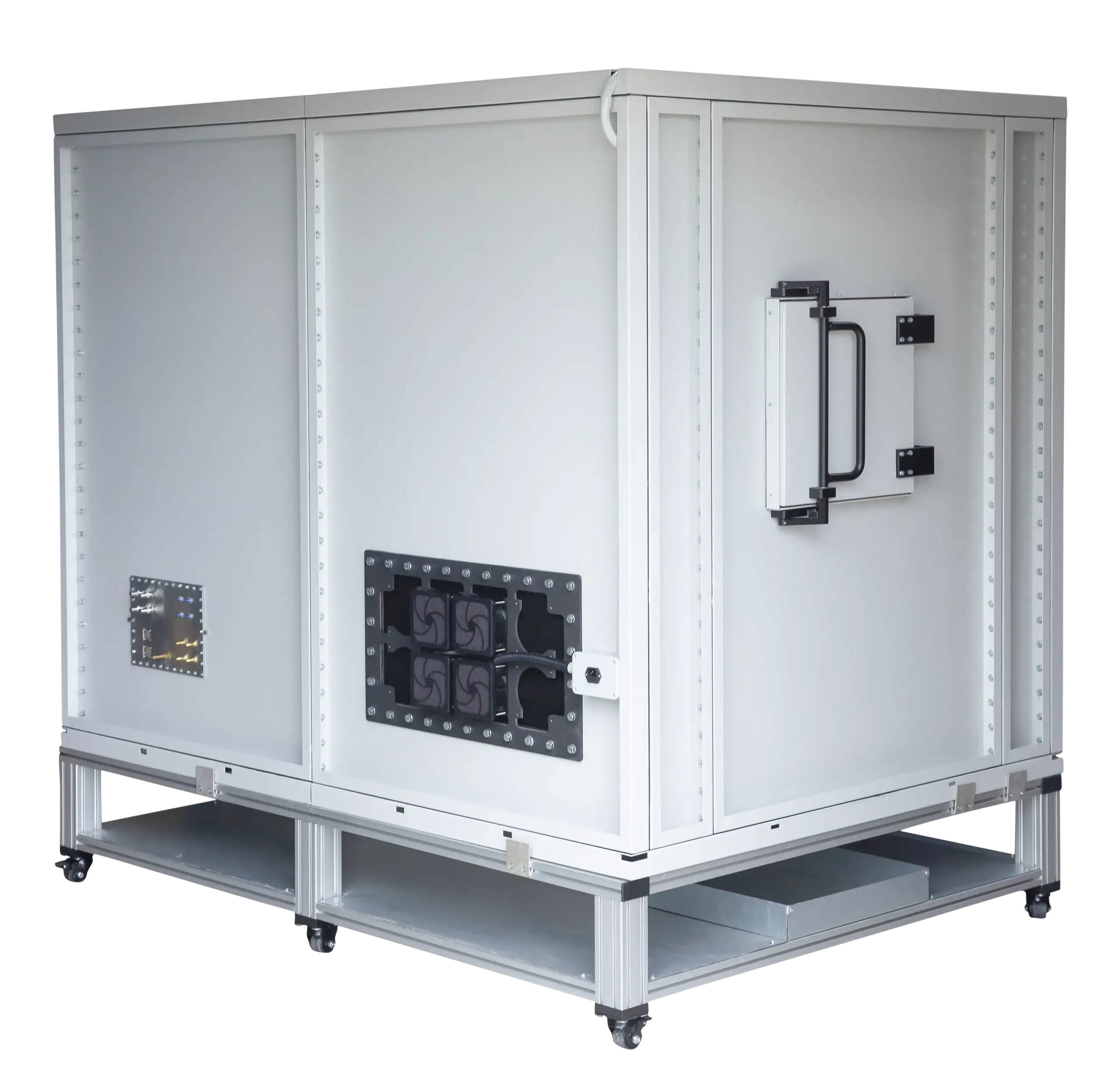

  • Penetration panel with selected IO’s RF filters.
  • Shielding tested under lab conditions with signal generator by spectrum analyzer and conforming antenna. Manufacturer’s C.O.T. and test results included.
  • For large UUT’s

Typical RF Attenuation

  • From 0.5 GHz up to 40 GHz -> 60 dB

Internal RF absorber

Not Specified

Accessories

View Accessories

IO Panel

View IO Panels

Datasheet

Download PDF
