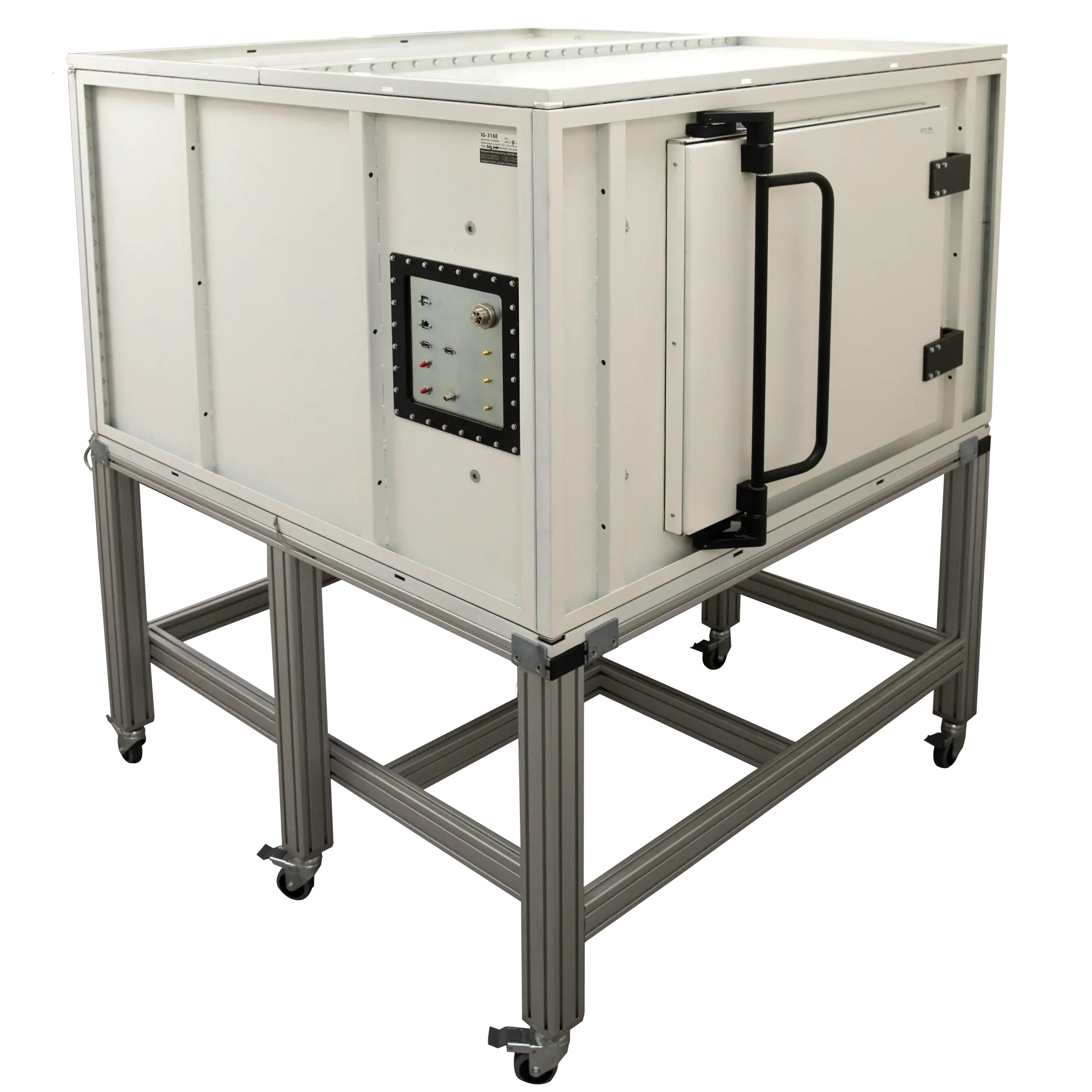

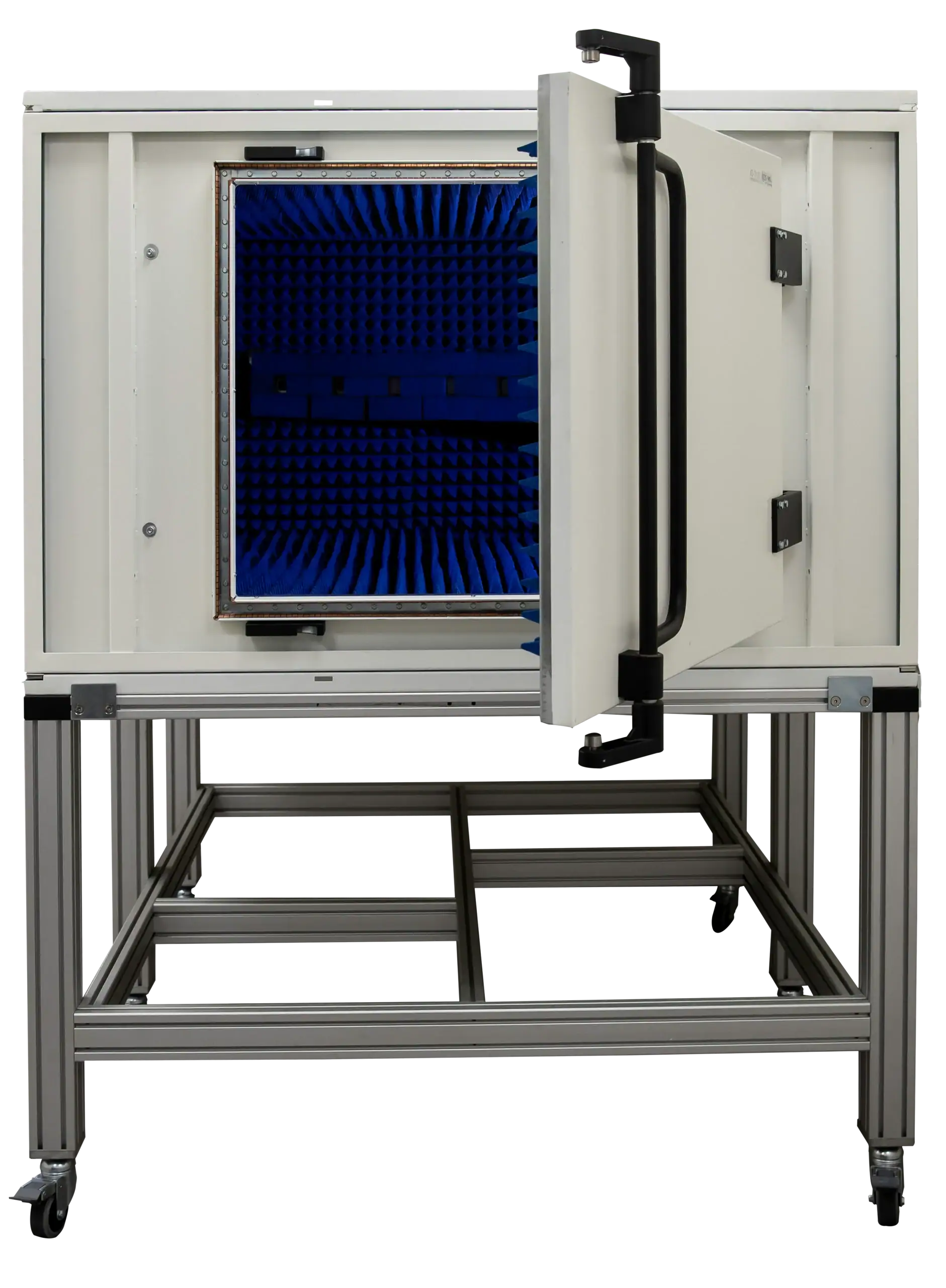

IG-316E

IG-316E--gallery--_43A9069
IG-316E--gallery--_43A9088
IG-316E--gallery--_43A9096
IG-316E--gallery--_43A9101
IG-316E--gallery--_43A9107
IG-316E--gallery--_43A9109

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm) External Internal
Width
150
140
Height
100
90
Depth
150
140

Description

The IG-316E sits at the sweet spot of the E-Series. It is large enough to house complex test setups, such as RF scanners or MIMO arrays, yet compact enough for individual engineering stations. It is specifically engineered to handle the challenges of 5G and mmWave technologies, offering a stable and repeatable test environment free from the "noise pollution" of a busy laboratory.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • 5G & mmWave Optimized: Internal absorption and shielding designed for frequencies up to 60GHz+.
  • Scanner Compatible: Ideal dimensions for housing portable RF scanners and spectrum analysis tools.
  • Zero-Resonance Environment: High-quality RAM (Radar Absorbent Material) lining prevents signal reflections.

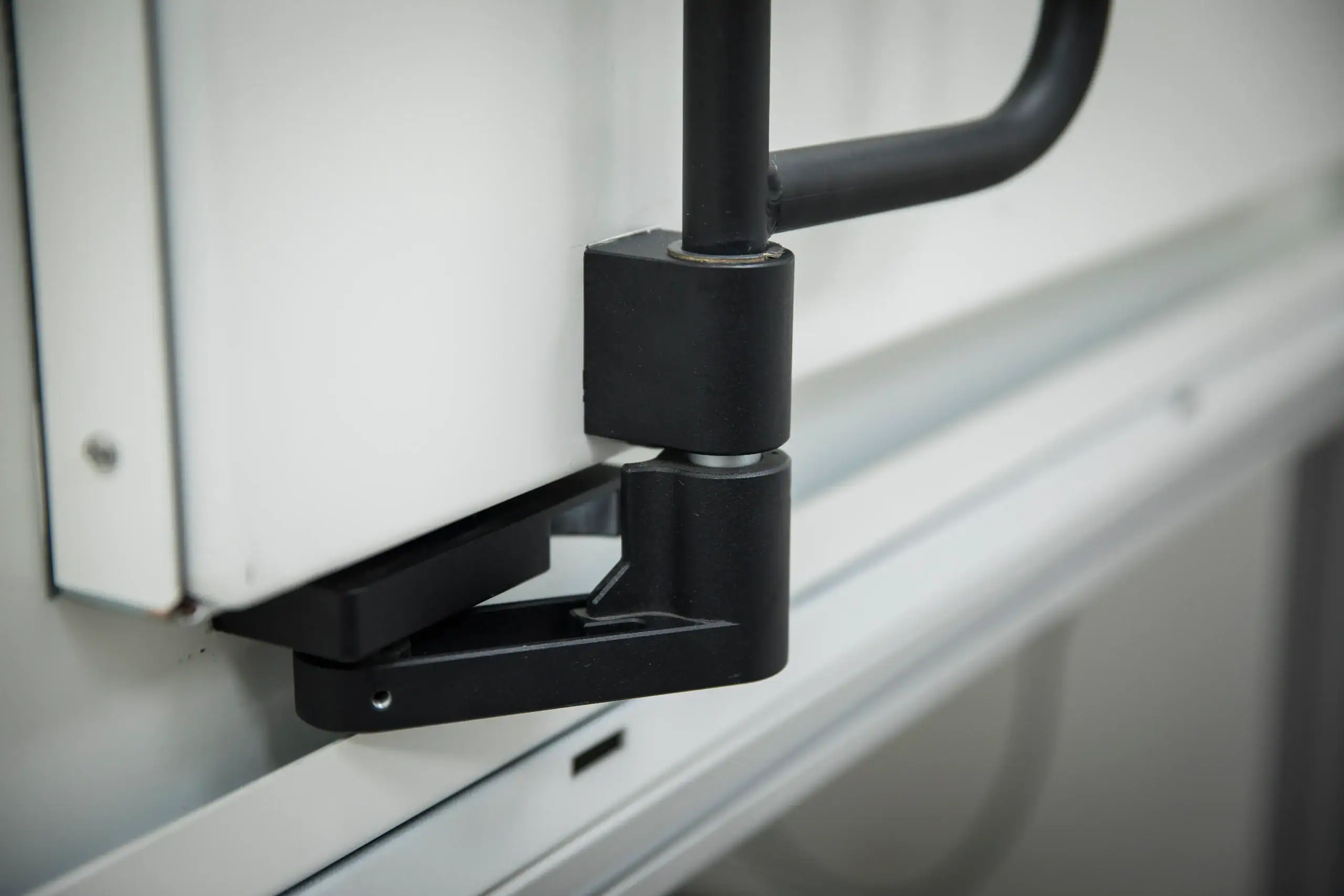

  • Precision Latch: Heavy-duty locking mechanism ensures consistent gasket compression every time.
  • Thermal Management: Options for active cooling/heating system to manage heat from high-power DUTs.
  • Future-Proof: Designed to meet testing standards for upcoming wireless generations (6G research ready).

RF Attenuation

0.1-8GHz <90dB

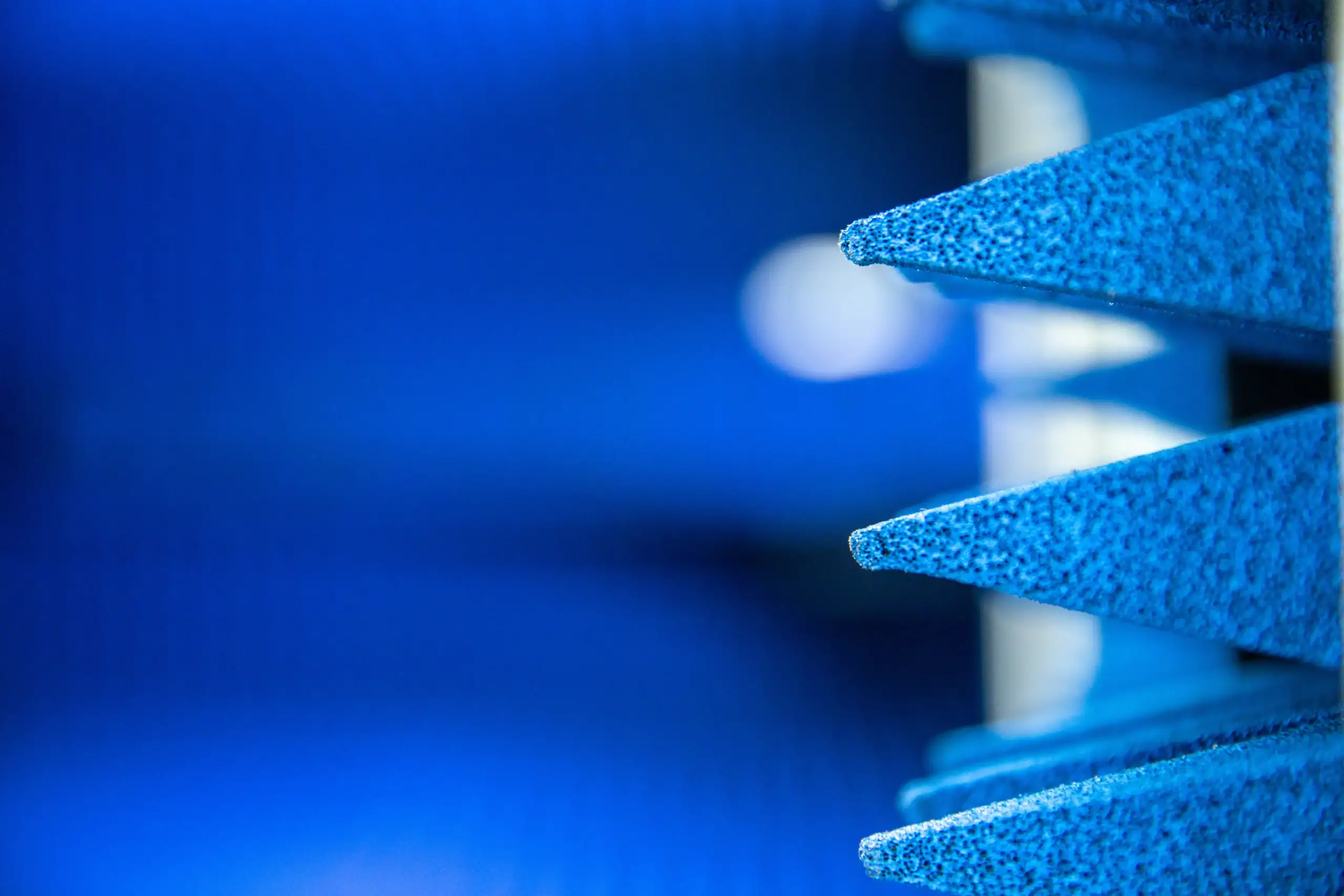

RF absorber

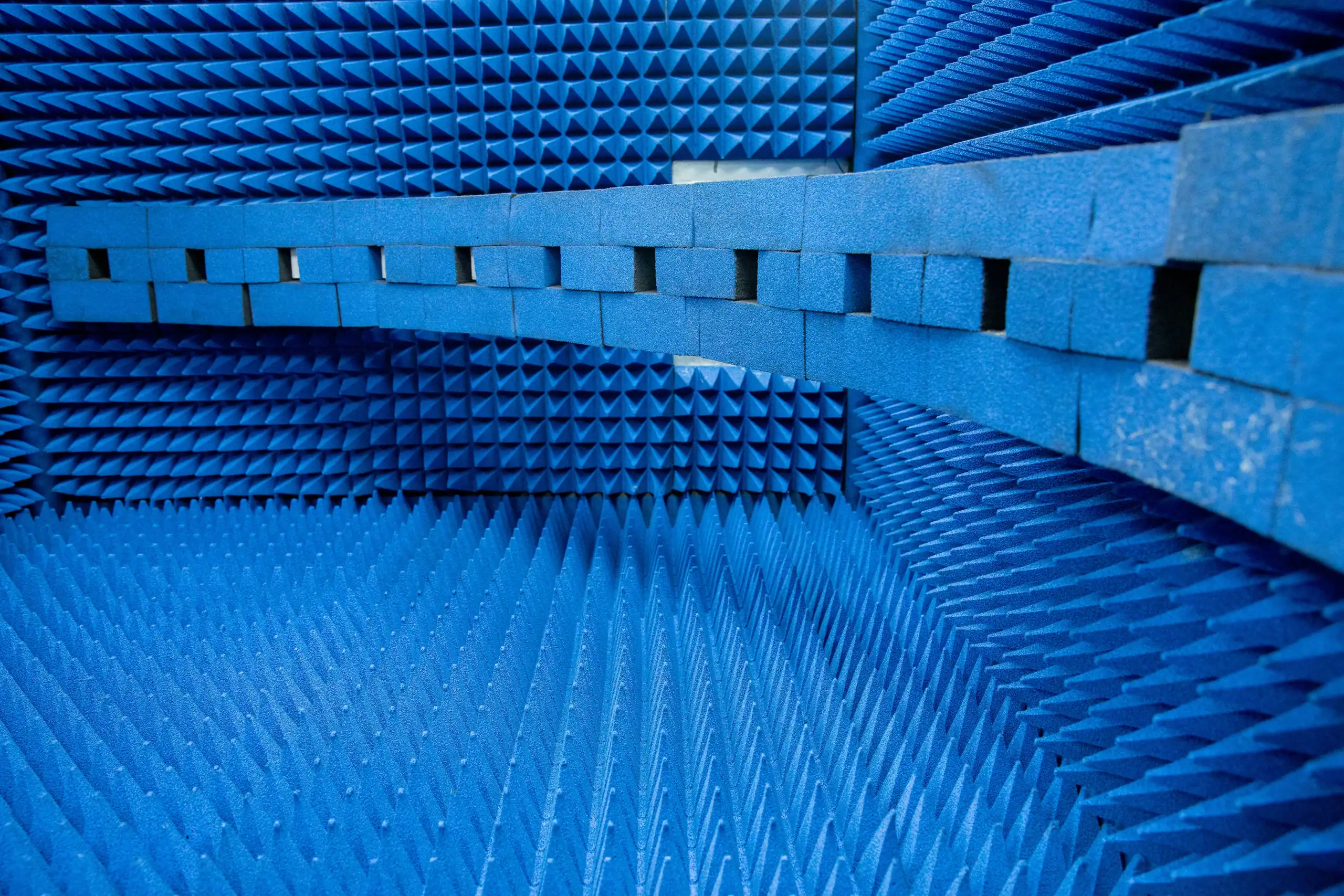

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
