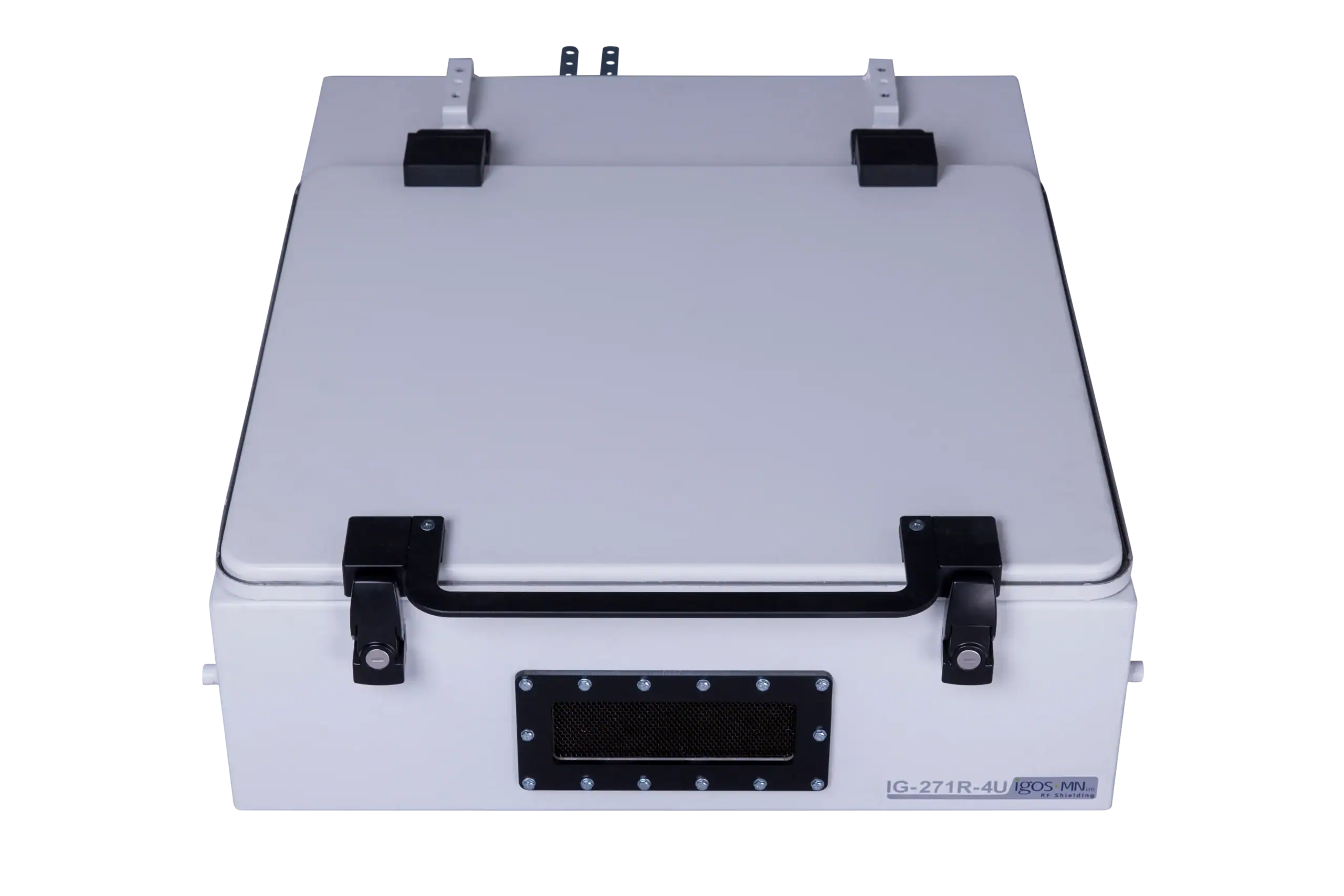

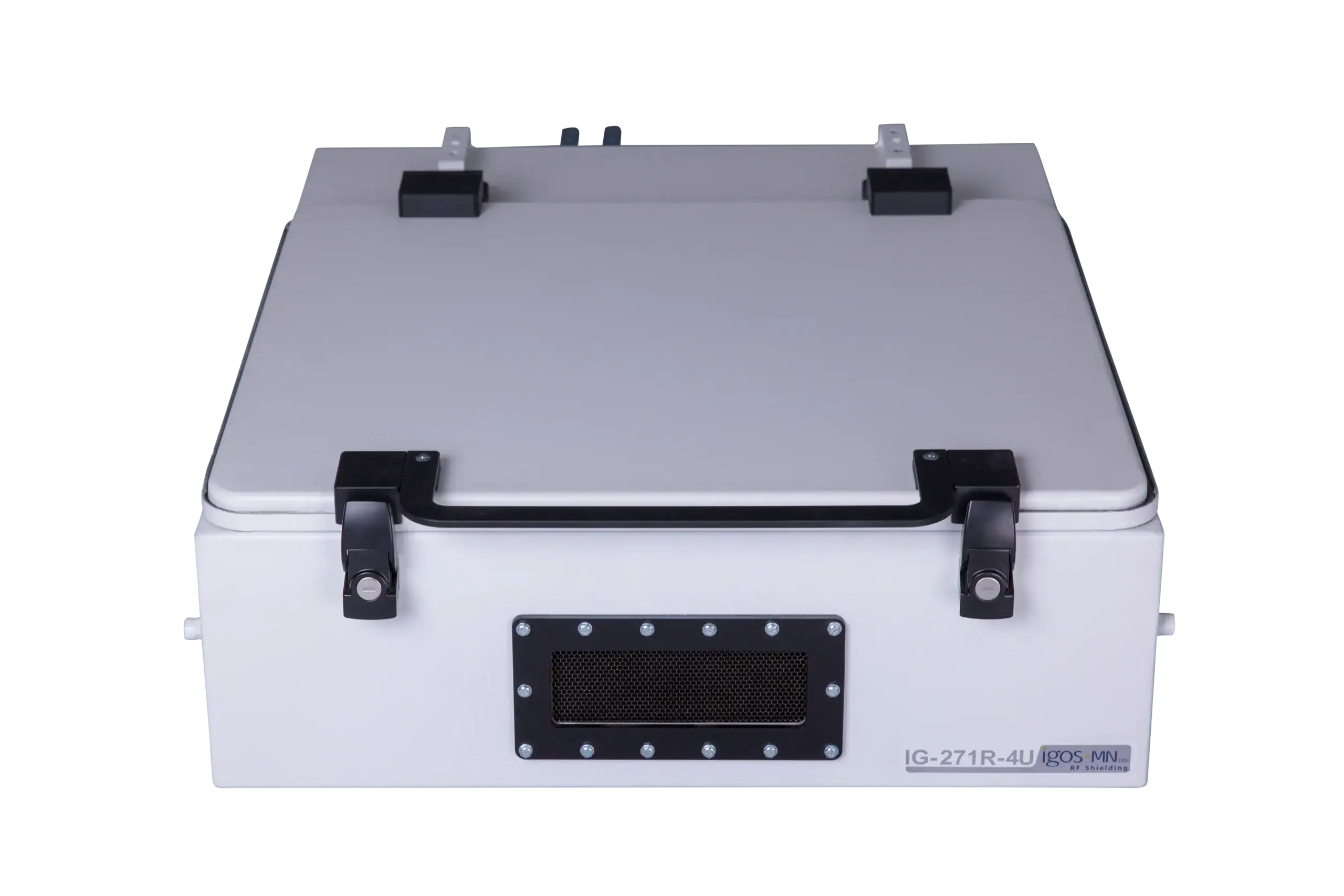

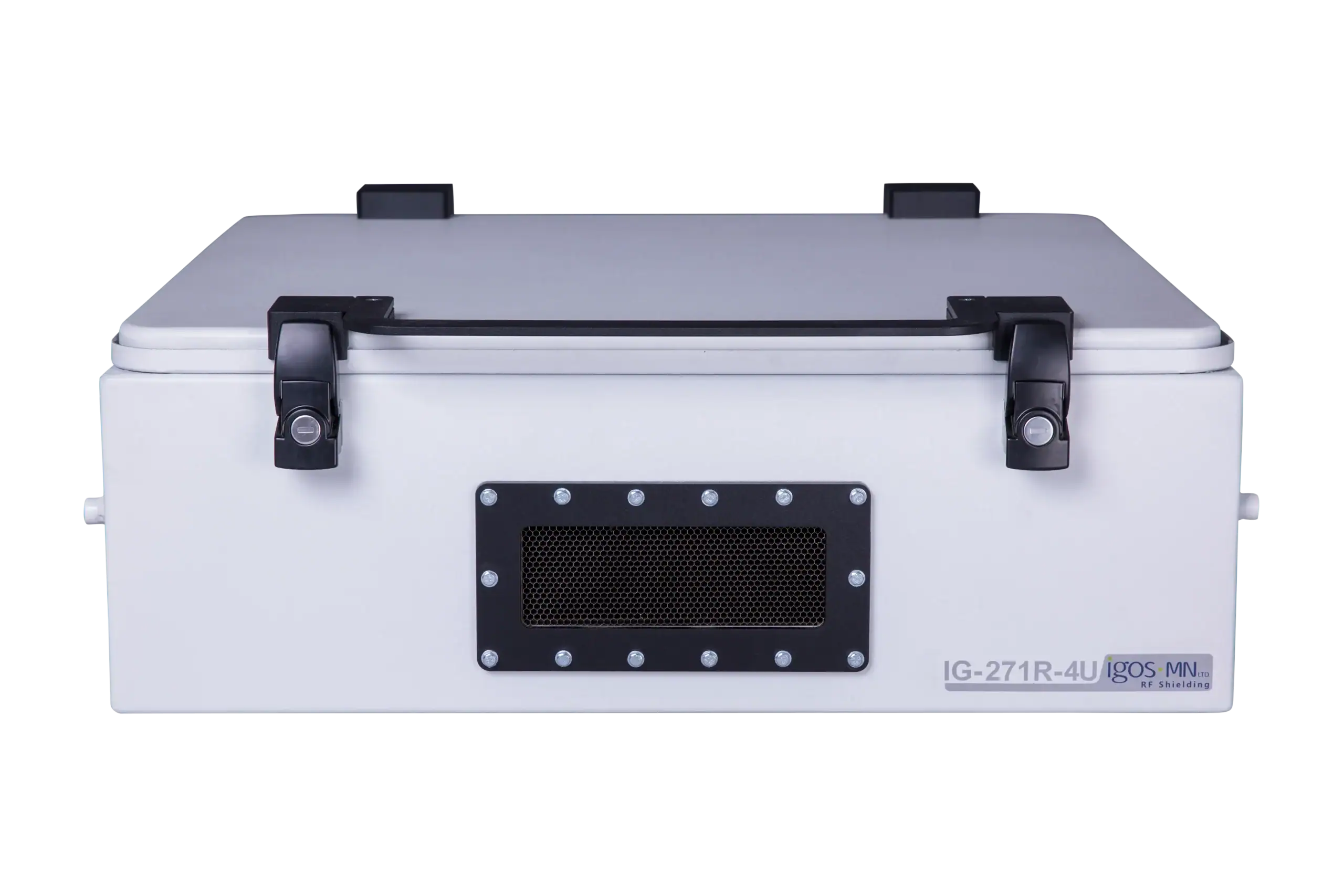

IG-271R-4U

IG-271R-4U--gallery--_D2A5994
IG-271R-4U--gallery--_D2A5996
IG-271R-4U--gallery--_D2A6000
IG-271R-4U--gallery--_D2A6002
IG-271R-4U--gallery--_D2A6007
IG-271R-4U--gallery--_D2A6015

Color

RAL 9019

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
69
55
Height
22
15
Depth
79
68*

Description

Specifically tailored for 27-inch rack systems, the IG-271R-4U drawer provides unmatched horizontal real estate. Mounted on heavy-duty rails, it allows for the testing of wide-body electronics or multiple devices arranged side-by-side. The top-loading design ensures that even the widest boards are easy to place and connect.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • 27-Inch Rack Compatibility: Designed to utilize the full width of wide-format rack cabinets.
  • Maximum Lateral Space: Ideal for wide-body PCBs and multi-device integration testing.
  • Smooth Drawer Action: Telescopic rails provide effortless access to the entire wide internal floor.
  • Low-Profile 4U Height: Saves vertical space while providing significant horizontal testing area.
  • Superior RF Isolation: Delivers the same 90dB performance as our standard B-series desktop units.
  • Enhanced Stability: Reinforced chassis prevents sagging when the wide drawer is fully extended.

RF Attenuation

0.1-8GHz <80dB

RF absorber

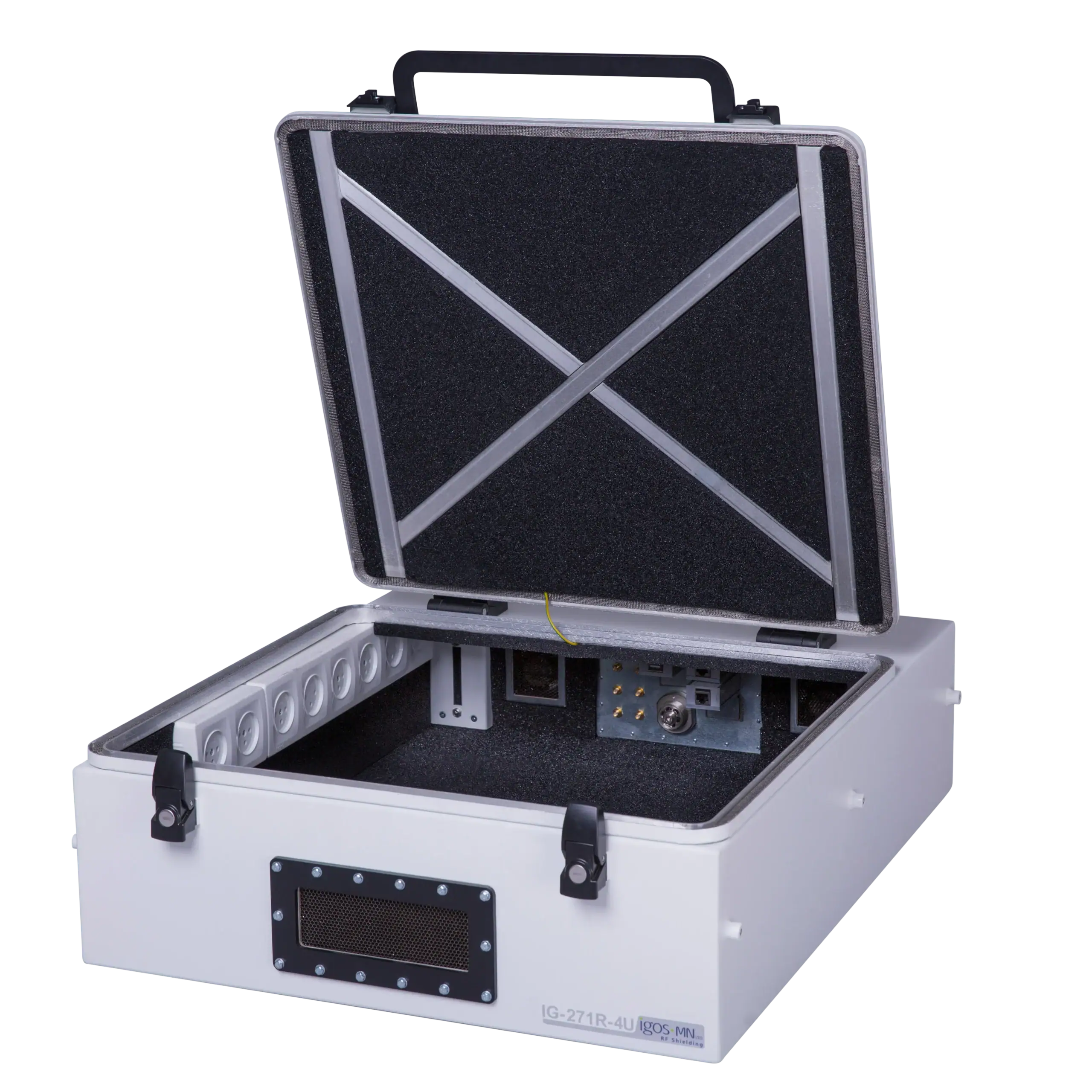

Internal surfaces covering with RF absorber foam

Accessories

View Accessories

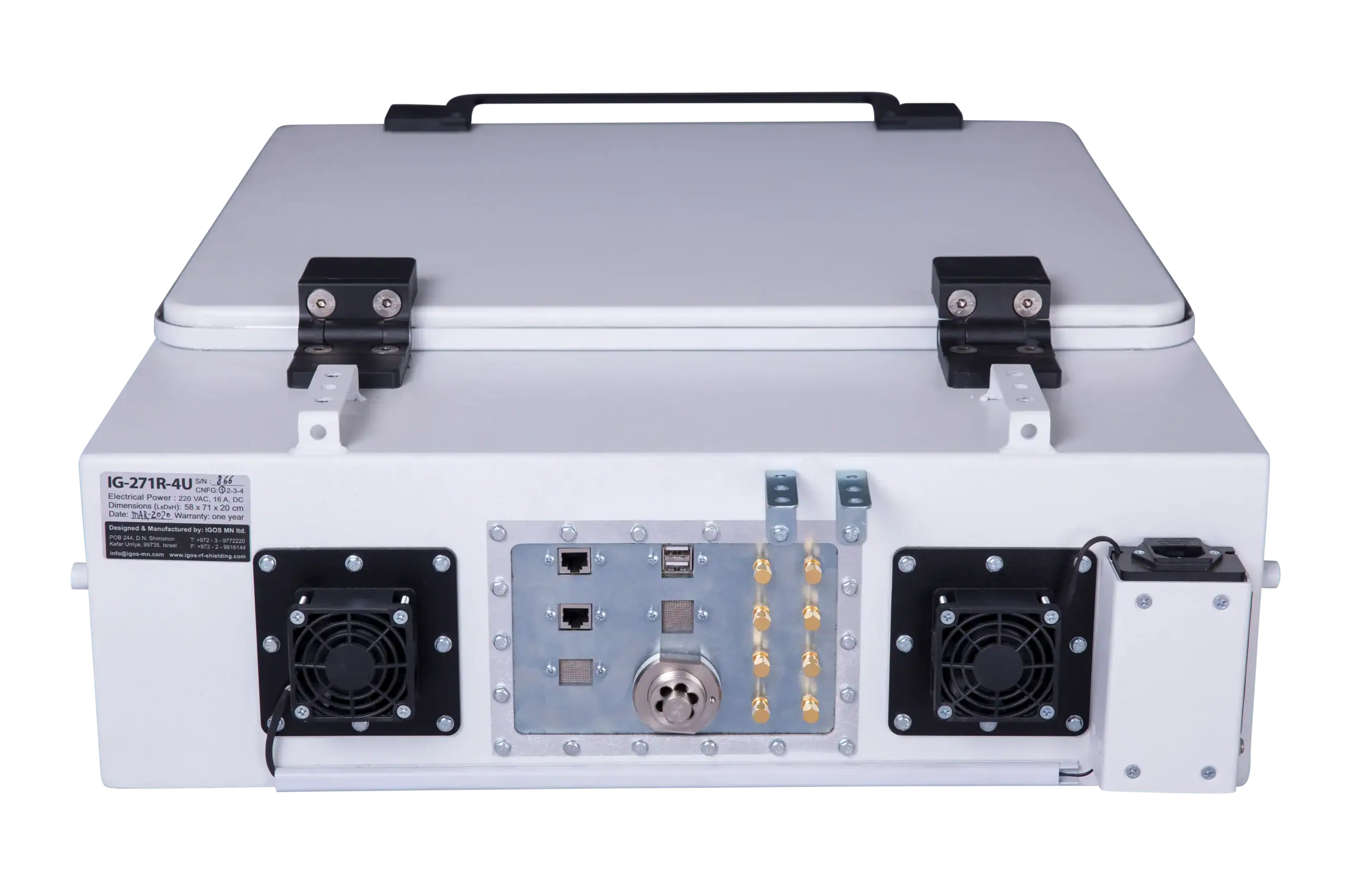

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
