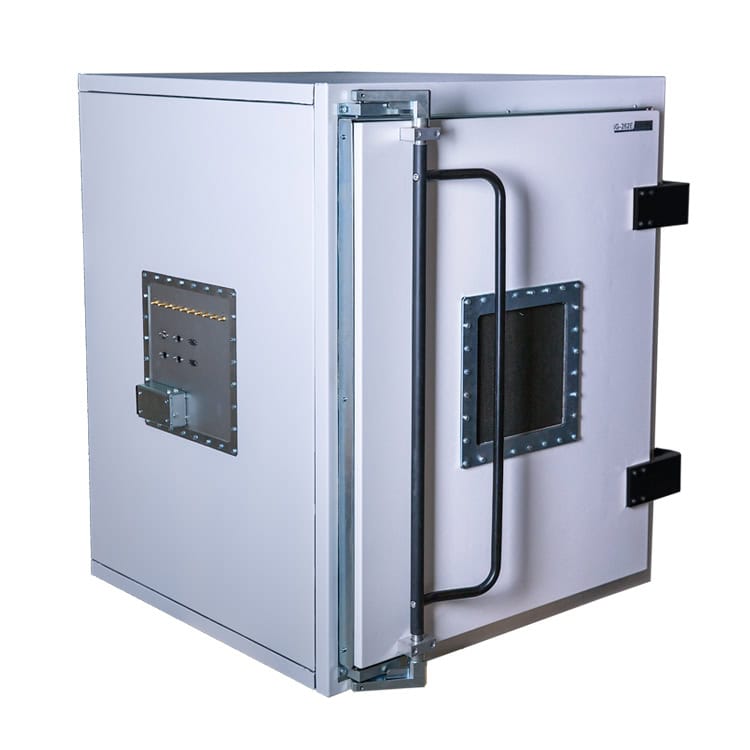

IG-262E

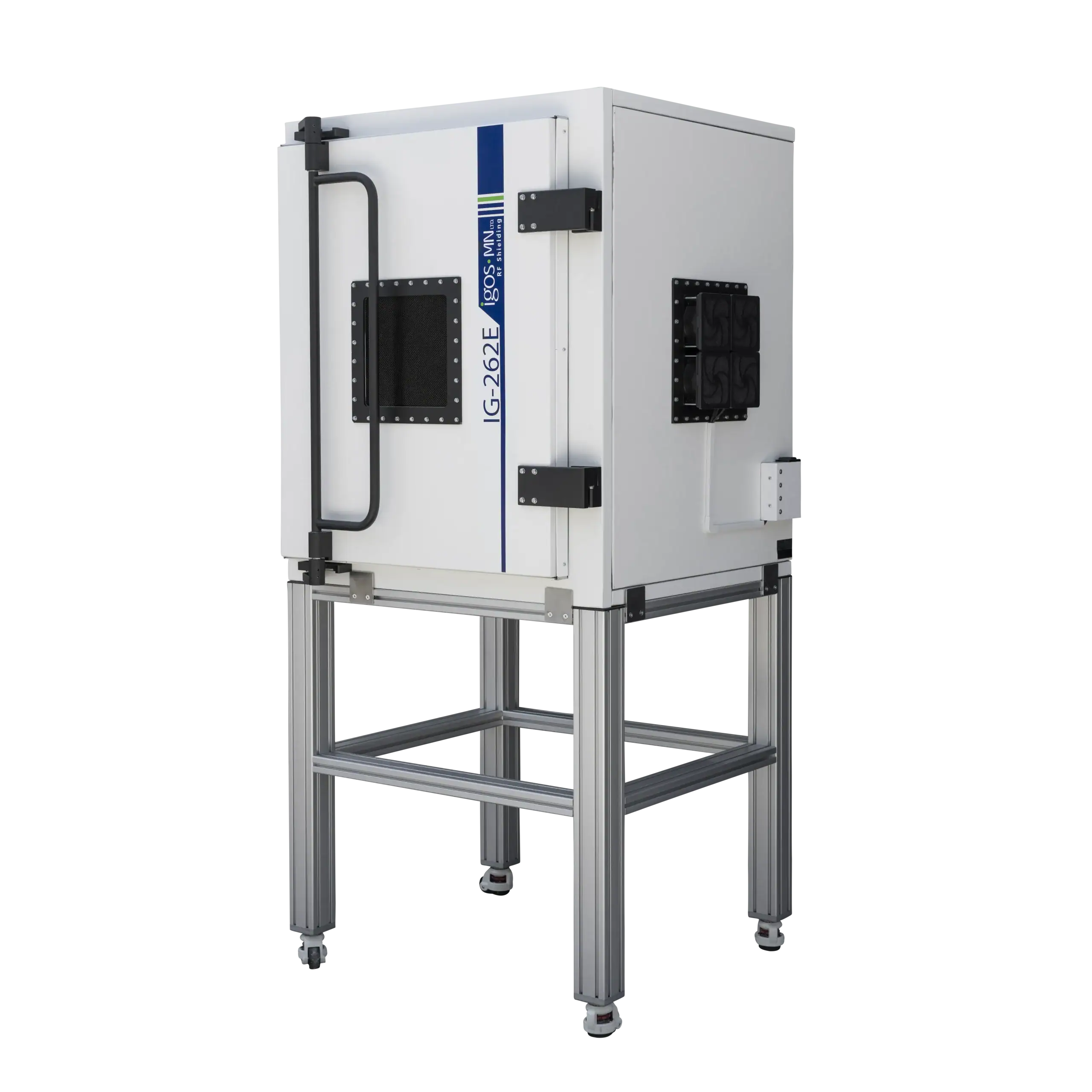

IG-262E--gallery--036A9925

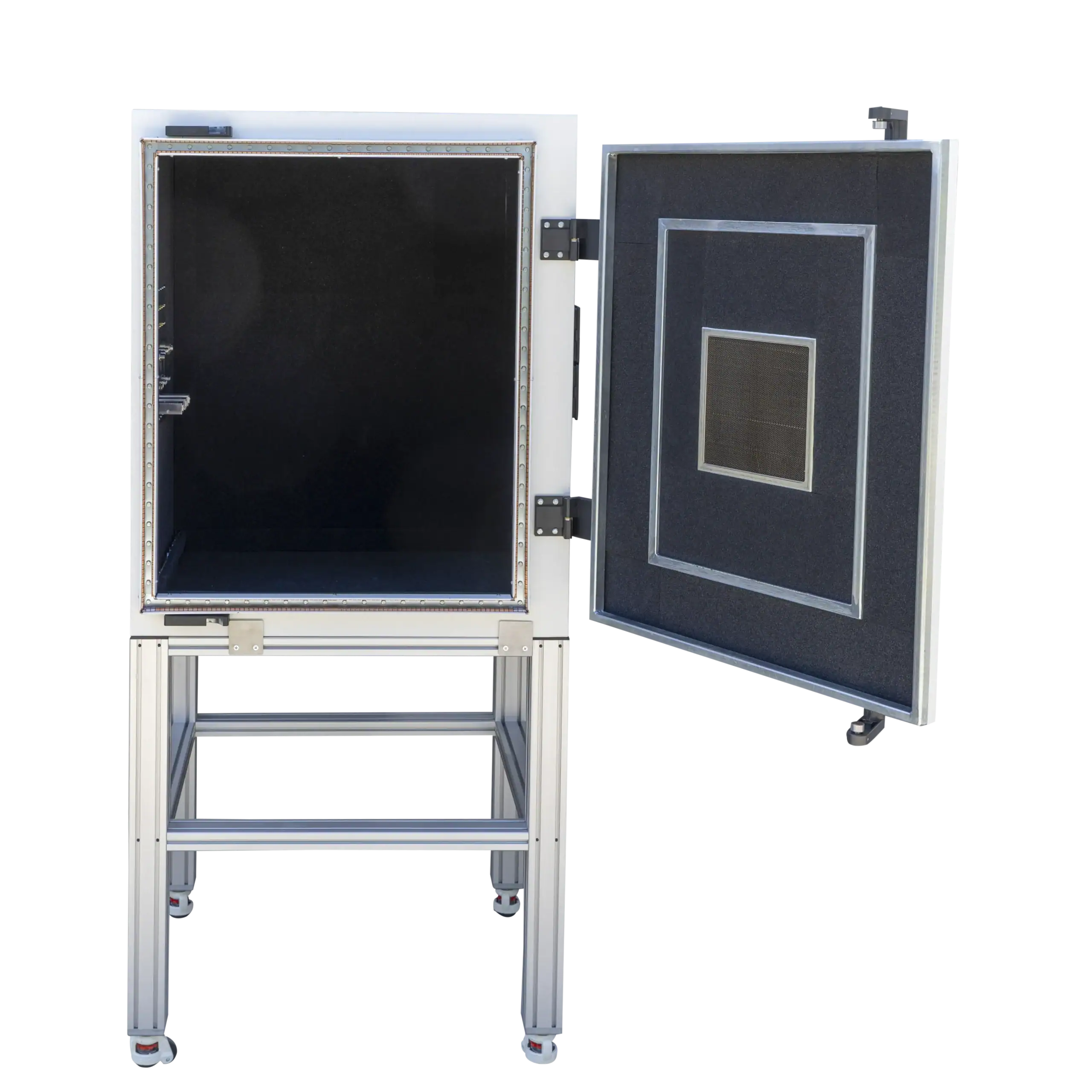

IG-262E--gallery--036A9932

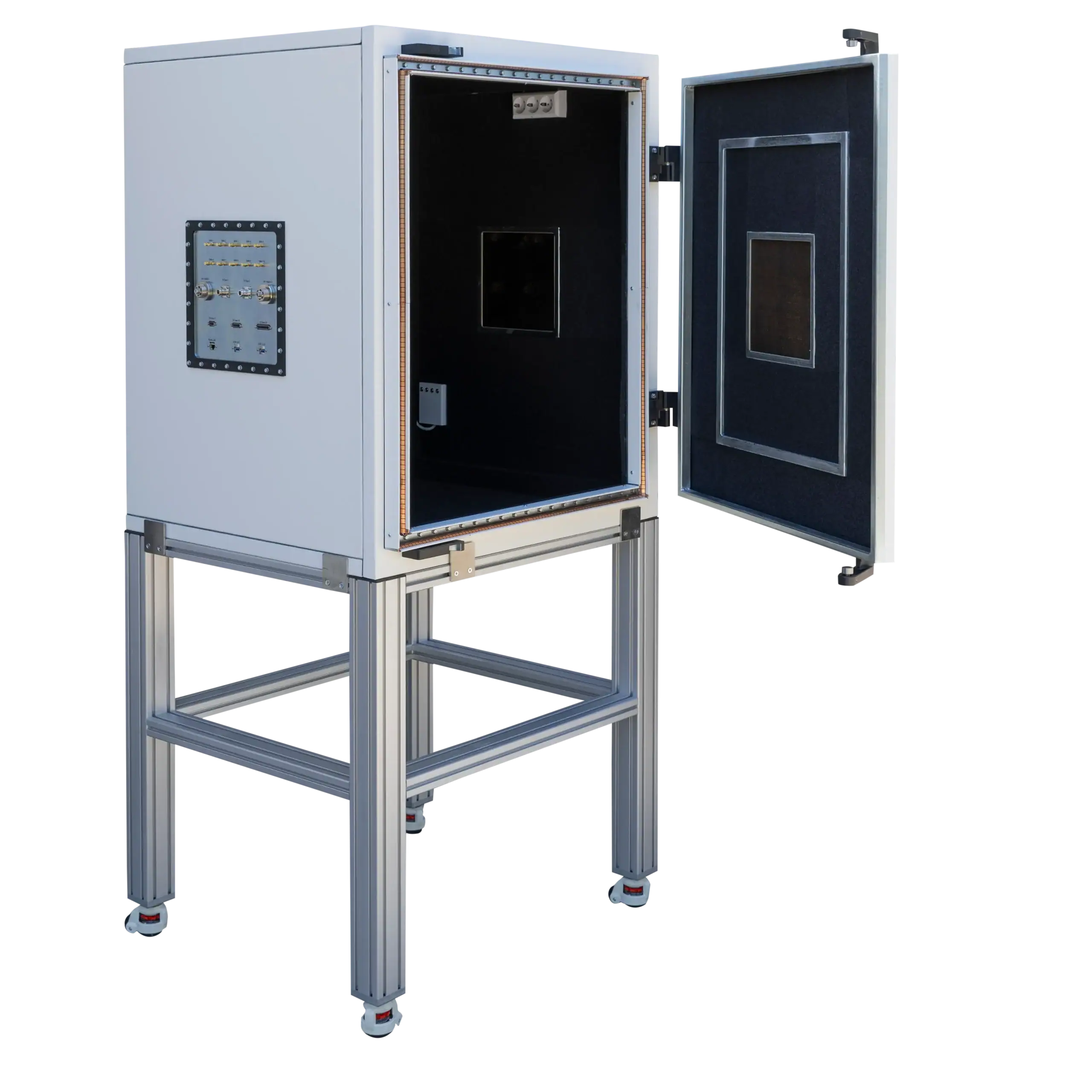

IG-262E--gallery--036A9937-2

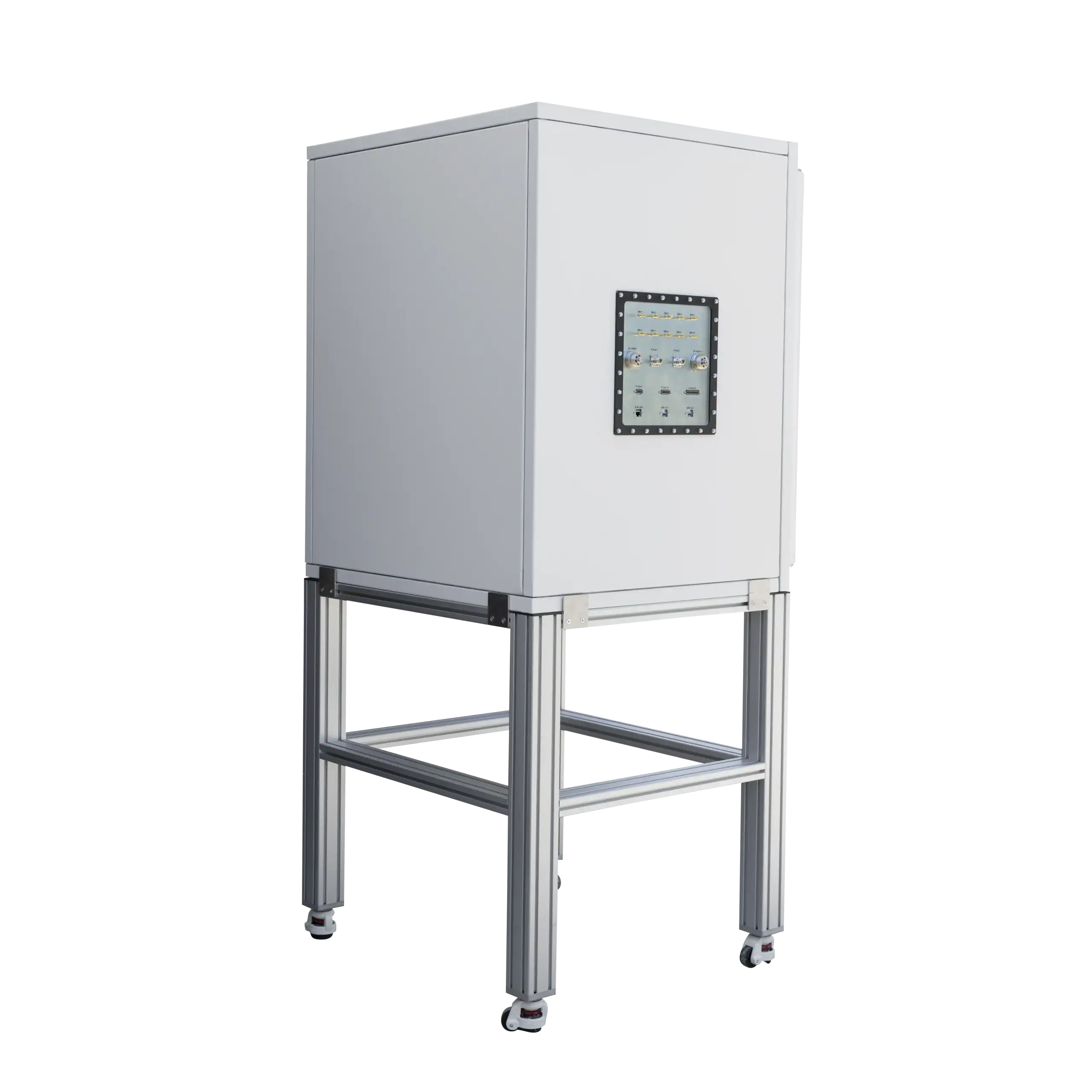

IG-262E--gallery--036A9954

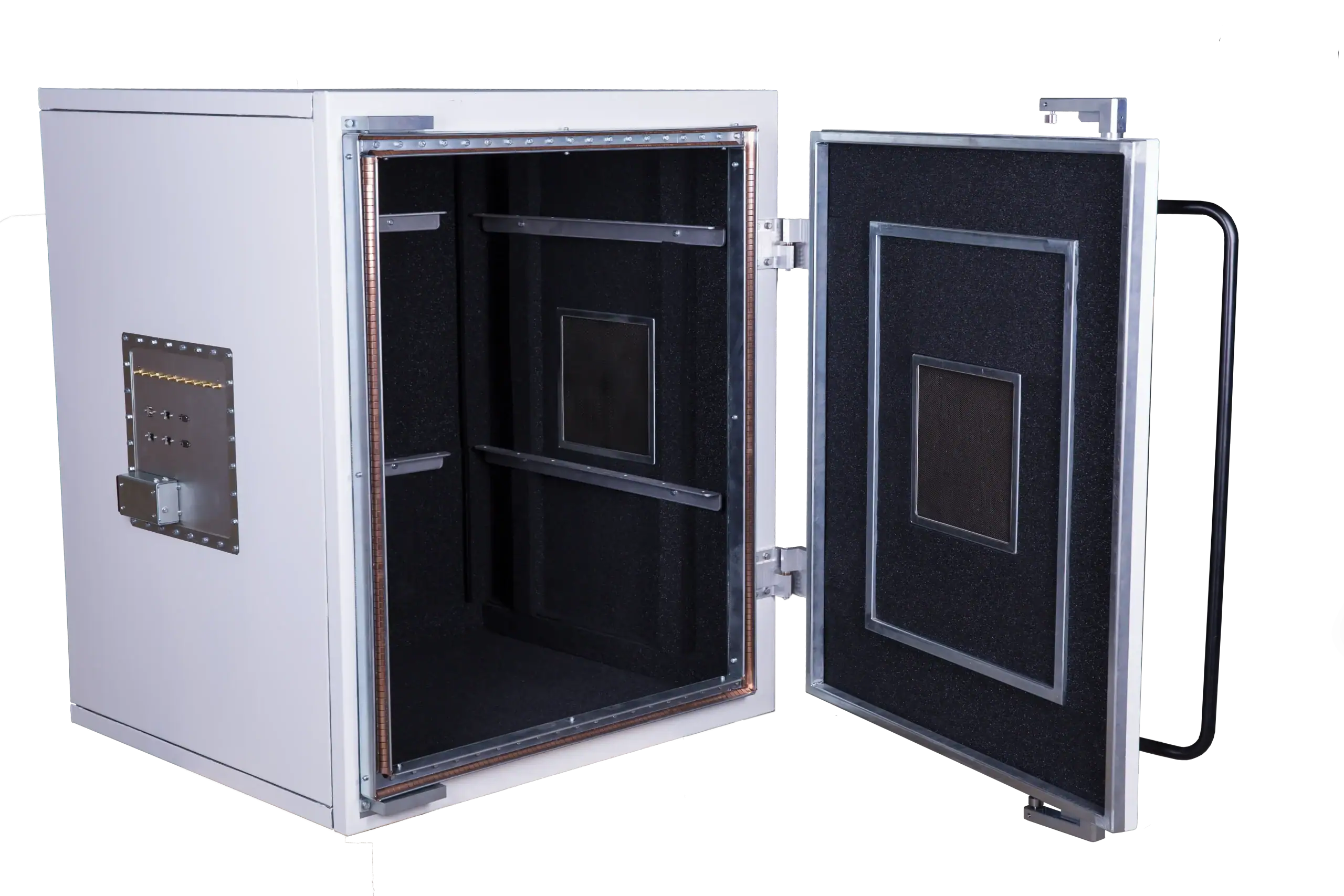

IG-262E--gallery--_D2A0996

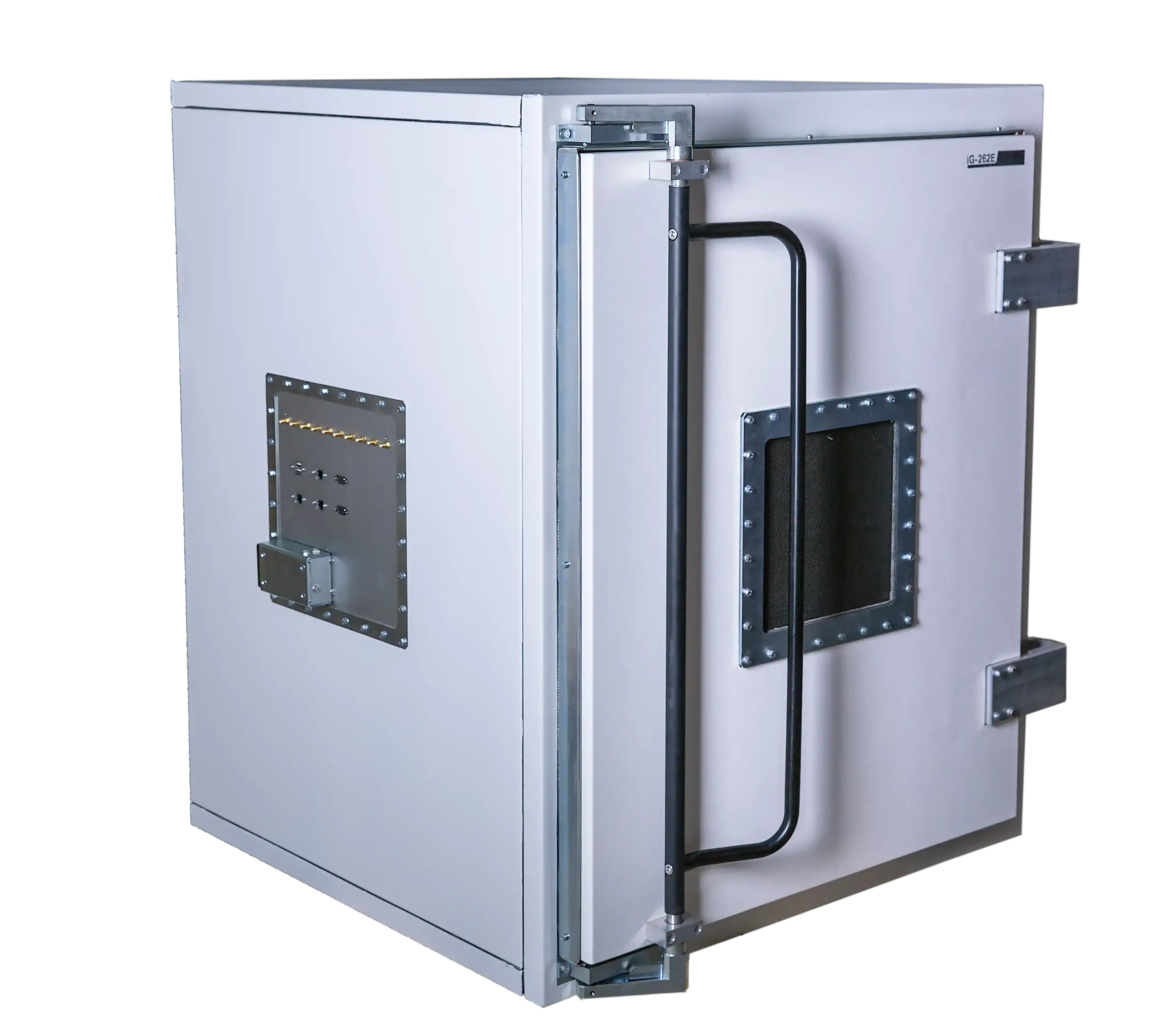

IG-262E--gallery--_D2A1009

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm) External Internal
Width
90
87
Height
110
107
Depth
85
82

Description

The IG-262E is the preferred choice for defense and automotive sectors requiring absolute signal containment. Its deep internal geometry allows it to accommodate handheld military radios, automotive key fobs, or long PCB assemblies. Built to exceed standard industrial requirements, this unit ensures that high-power transmissions inside the box do not leak out, and external high-power signals do not get in.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Deep Form Factor: Extra depth accommodates long antennas and handheld units comfortably.
  • Secure Testing Environment: 120dB isolation prevents signal leakage, essential for classified or secure comms.
  • Rugged Construction: Built to mil-spec standards for durability in harsh testing environments.
  • Versatile Filter Panel: customizable I/O options for high-fidelity data and power transmission.

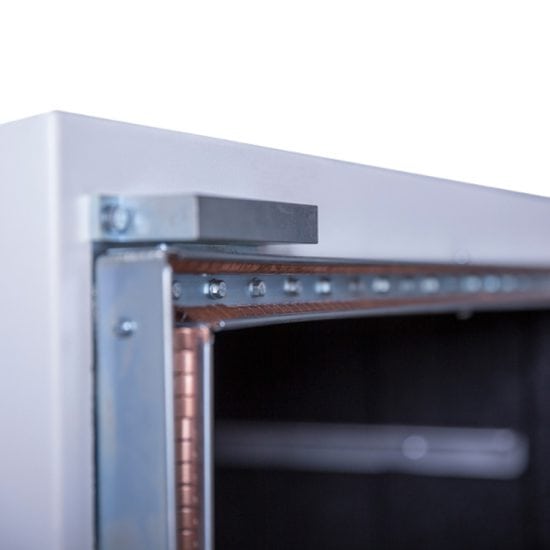

  • Advanced Gasketing: Uses conductive braiding and gaskets designed for high-frequency blocking.

RF Attenuation

0.1-8GHz <90dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels
