IG-253B

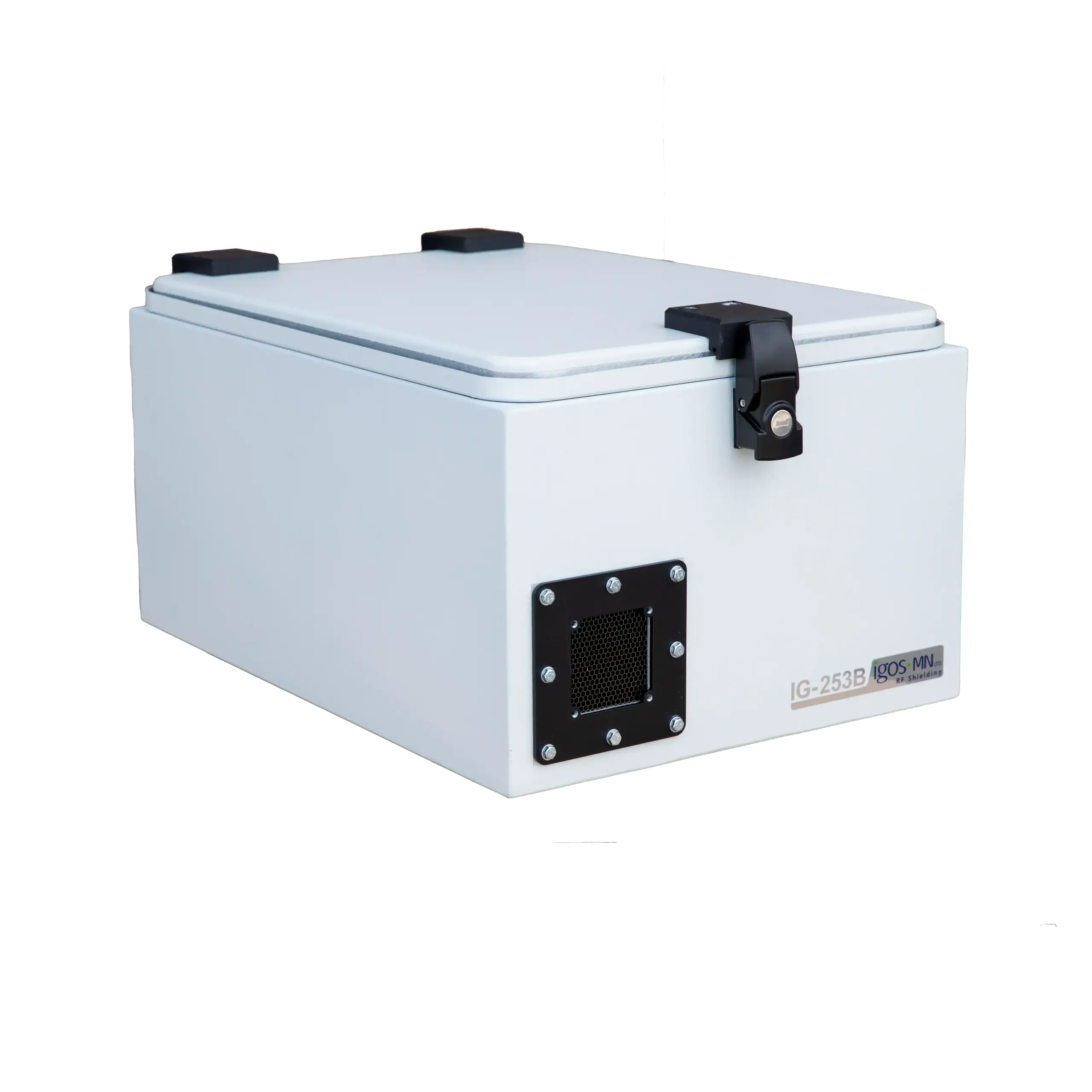

IG-253B--gallery--_43A8122

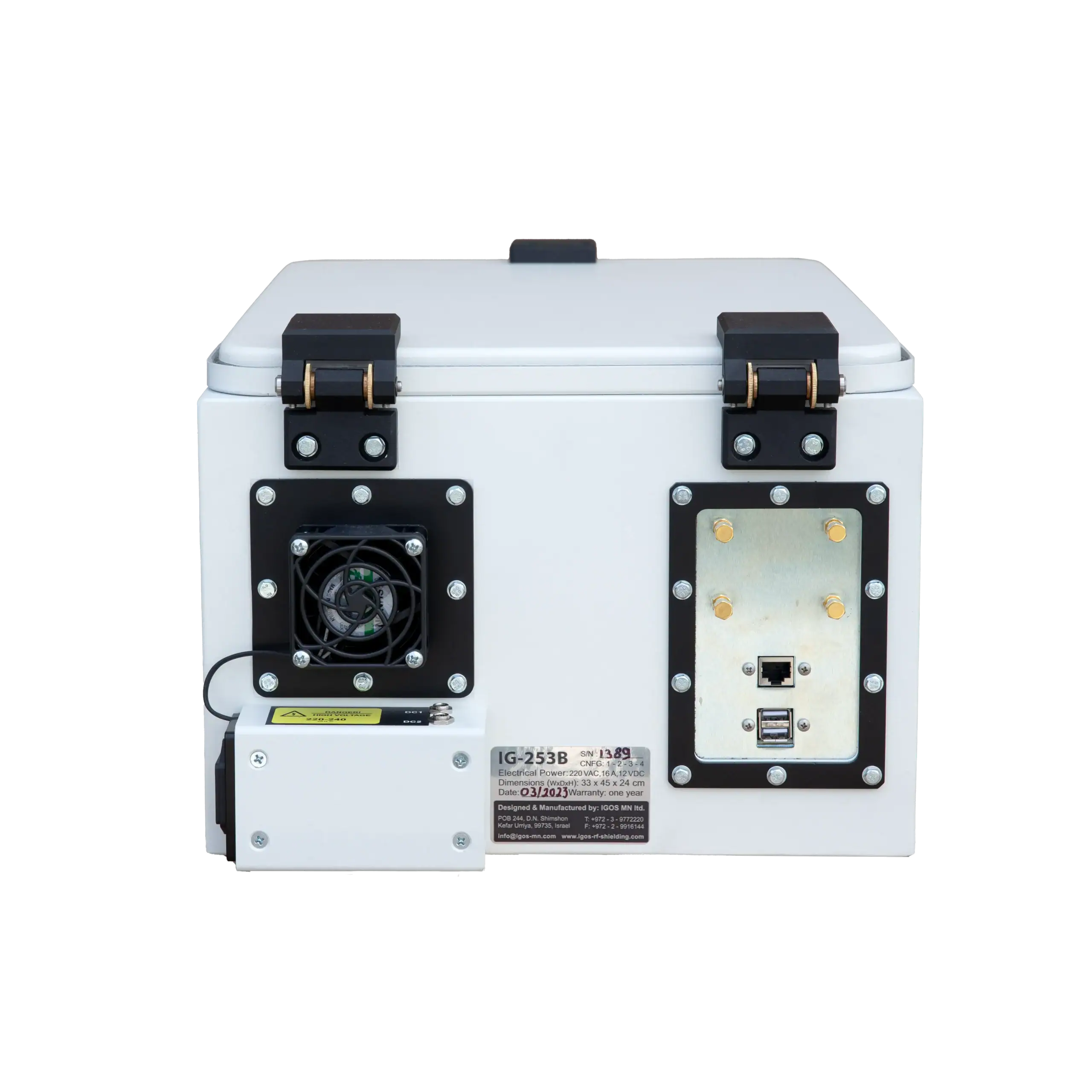

IG-253B--gallery--_43A8130
IG-253B--gallery--_43A8134

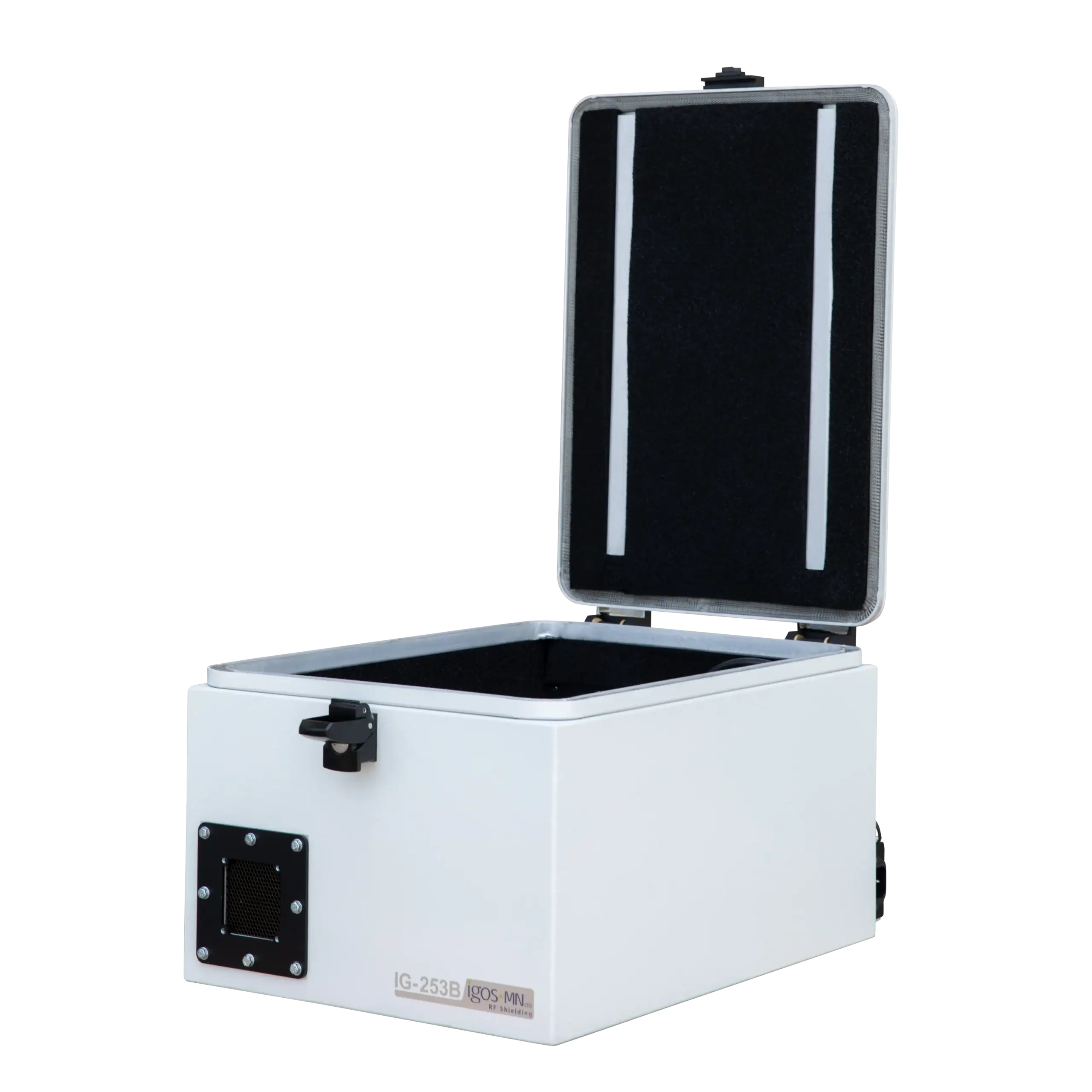

IG-253B--gallery--_43A8150

Color

RAL 9010

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
32
29
Height
24
20
Depth
51
40

Description

Building on the compact efficiency of the B-Series, the IG-253B offers that critical extra internal volume needed for slightly bulkier devices. It is the perfect middle ground for engineers who need to test handheld units, remote controls, or stacked PCBs but still wish to maintain a lean lab setup. It combines portability with robust mechanical durability for daily use.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • ptimized Internal Depth: Provides crucial extra clearance for thicker devices that cannot fit in ultra-slim boxes.
  • Handheld Device Ready: Perfectly sized for remote controls, barcode scanners, and medical handheld units.
  • High-Performance Absorption: Lined with RF absorber foam to reduce internal reflections and improve measurement accuracy.
  • Flexible I/O Panel: customizable interface plate allowing for a mix of SMA, USB, and Data connectors.
  • Portable Design: Lightweight enough to be easily relocated between engineering desks and QA stations.
  • Long-Life Gasketing: Equipped with durable RF gaskets that maintain sealing performance over thousands of cycles.

RF Attenuation

0.1-8GHz <80dB

RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
