IG-235E

IG-235E--gallery--_43A9489

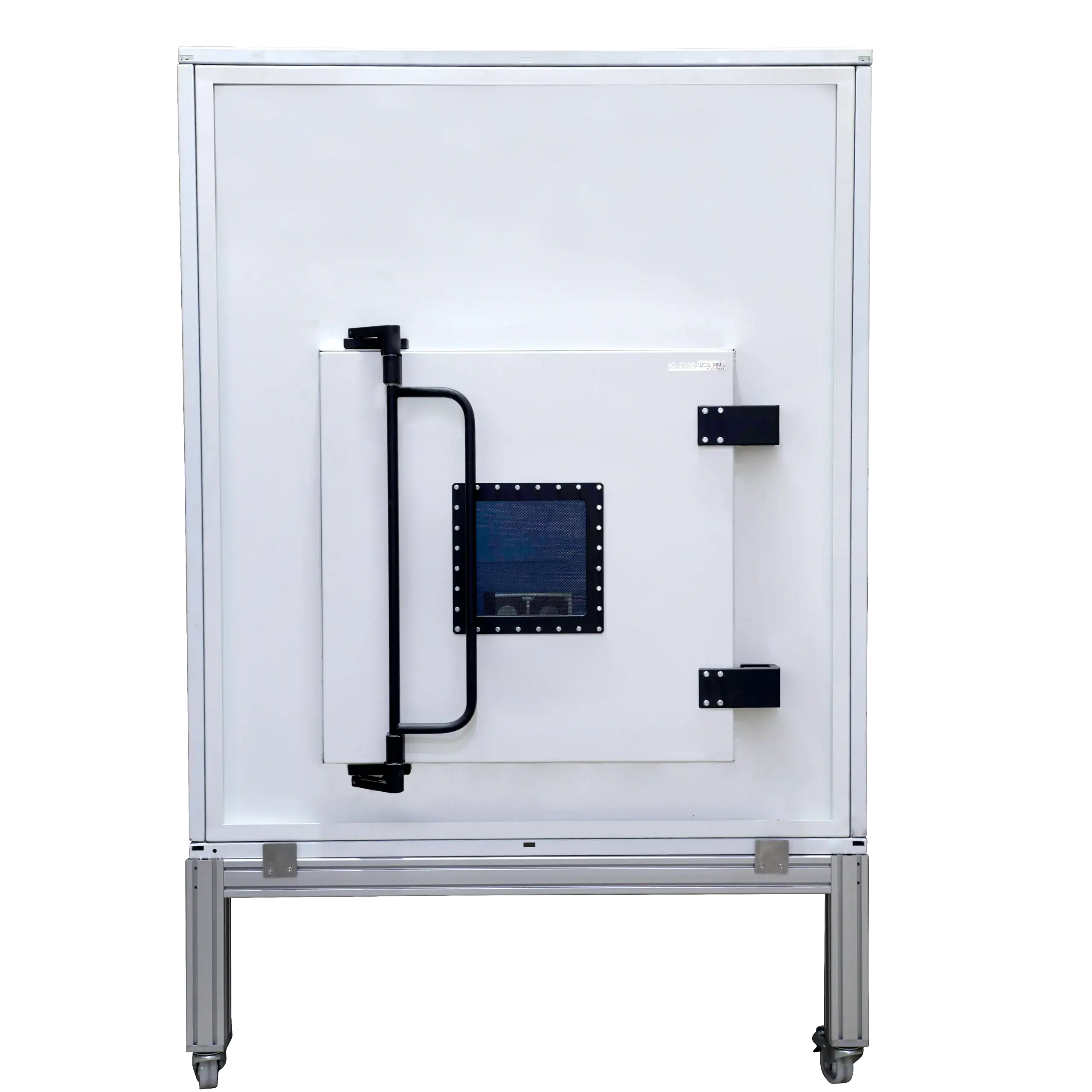

IG-235E--gallery--_43A9491-Edit

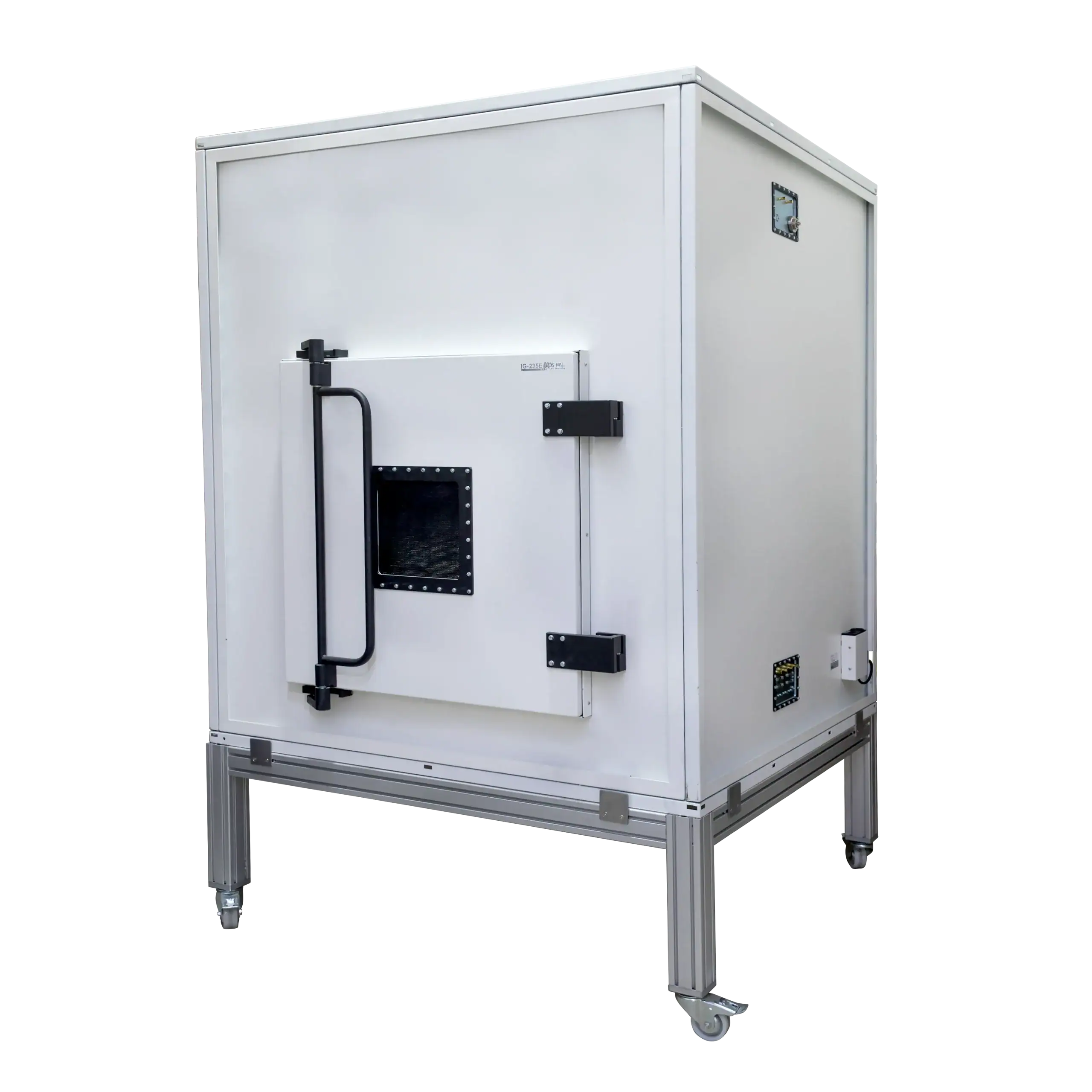

IG-235E--gallery--_43A9502-Edit

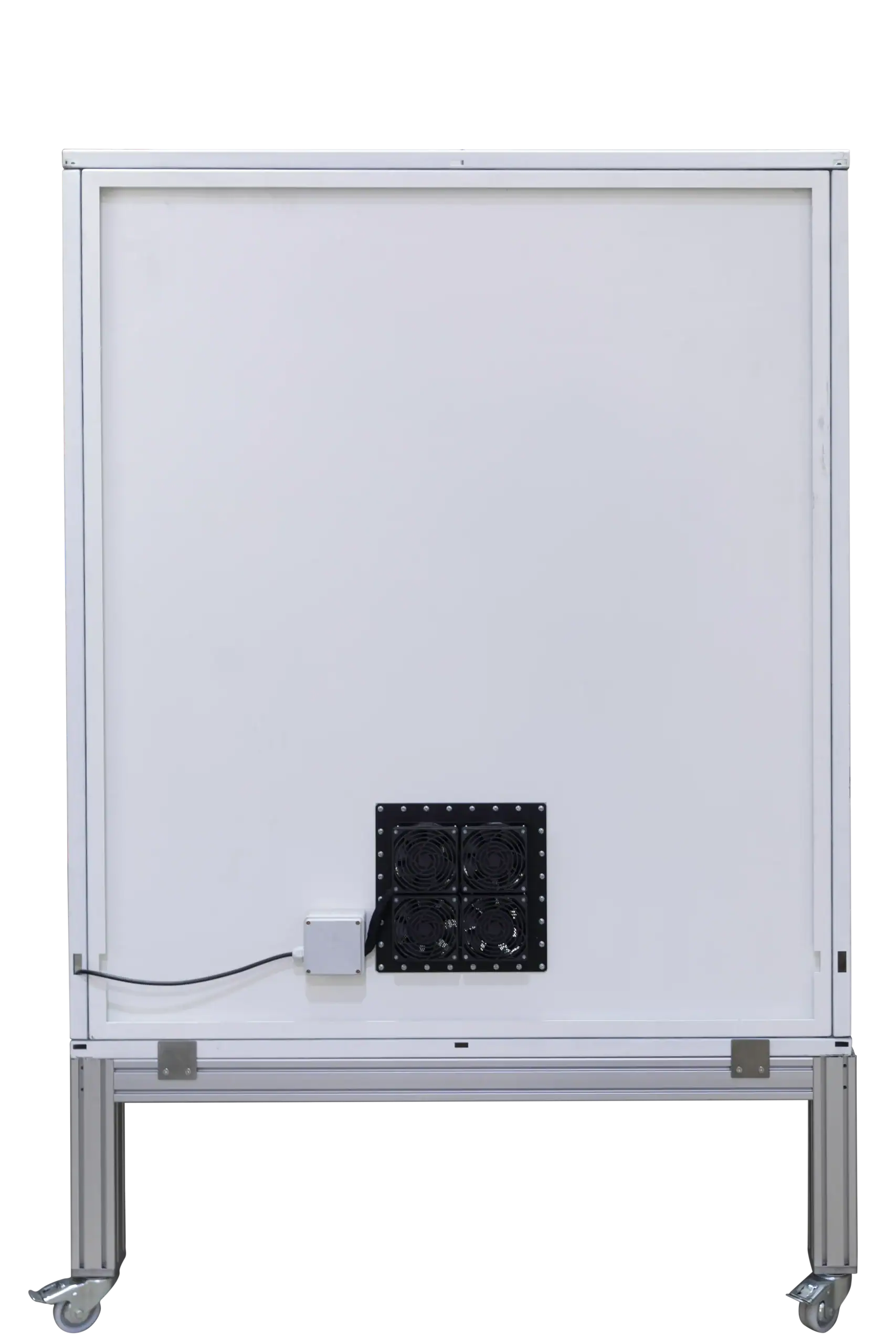

IG-235E--gallery--_43A9531-Edit

Color

Material

SAE 1020

Weight

Measurments

Dimension (cm)	External	Internal
Width	135
Height	160
Depth	130

Description

Quality

Testing according to MIL-STD 285
A C.O.A will attach to each box.
Final Attenuation level will set as per as the weak chosen connector
Warranty – one year from delivering

Key Features

RF Attenuation

0.1-8GHz <90dB

RF absorber

Internal surfaces covering with RF absorber foam per requests

Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

Datasheet
