IG-190R-42U

IG-190R-42U--gallery--_43A4022
IG-190R-42U--gallery--_43A4037
IG-190R-42U--gallery--_43A4042
IG-190R-42U--gallery--_43A4053ח
IG-190R-42U--gallery--_43A4055
IG-190R-42U--gallery--_43A4073

Color

RAL 9017

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
46
41
Height
200
185
Depth
57*
49*

Description

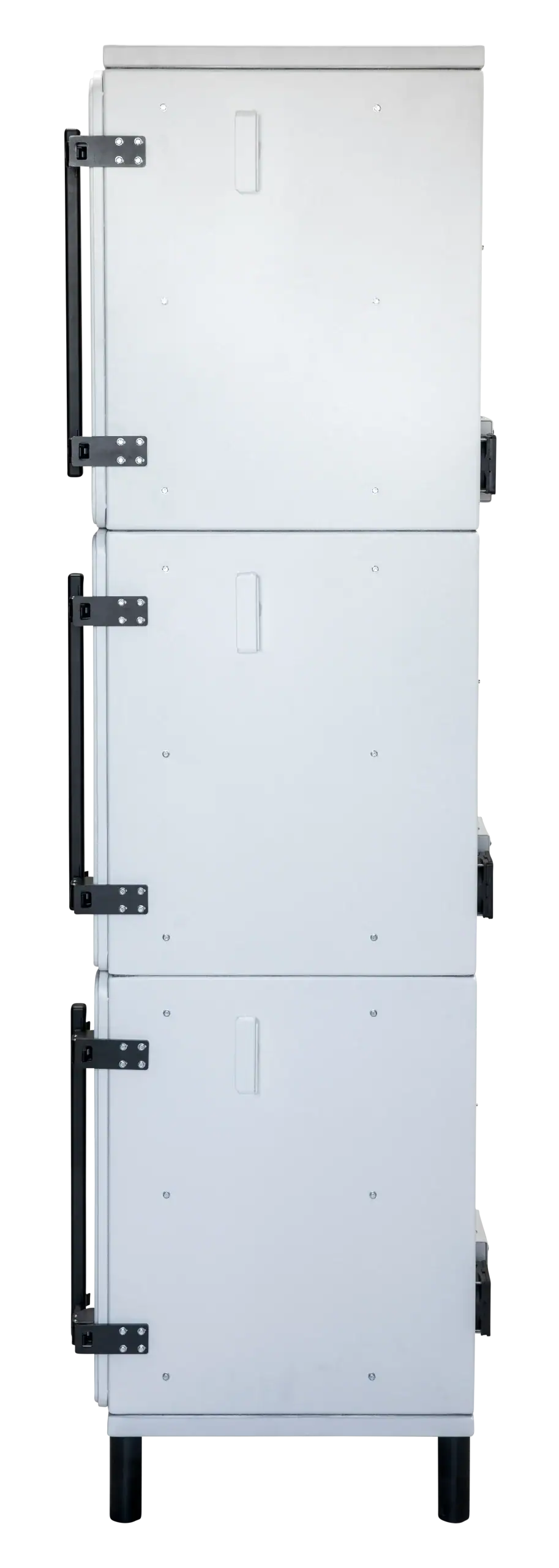

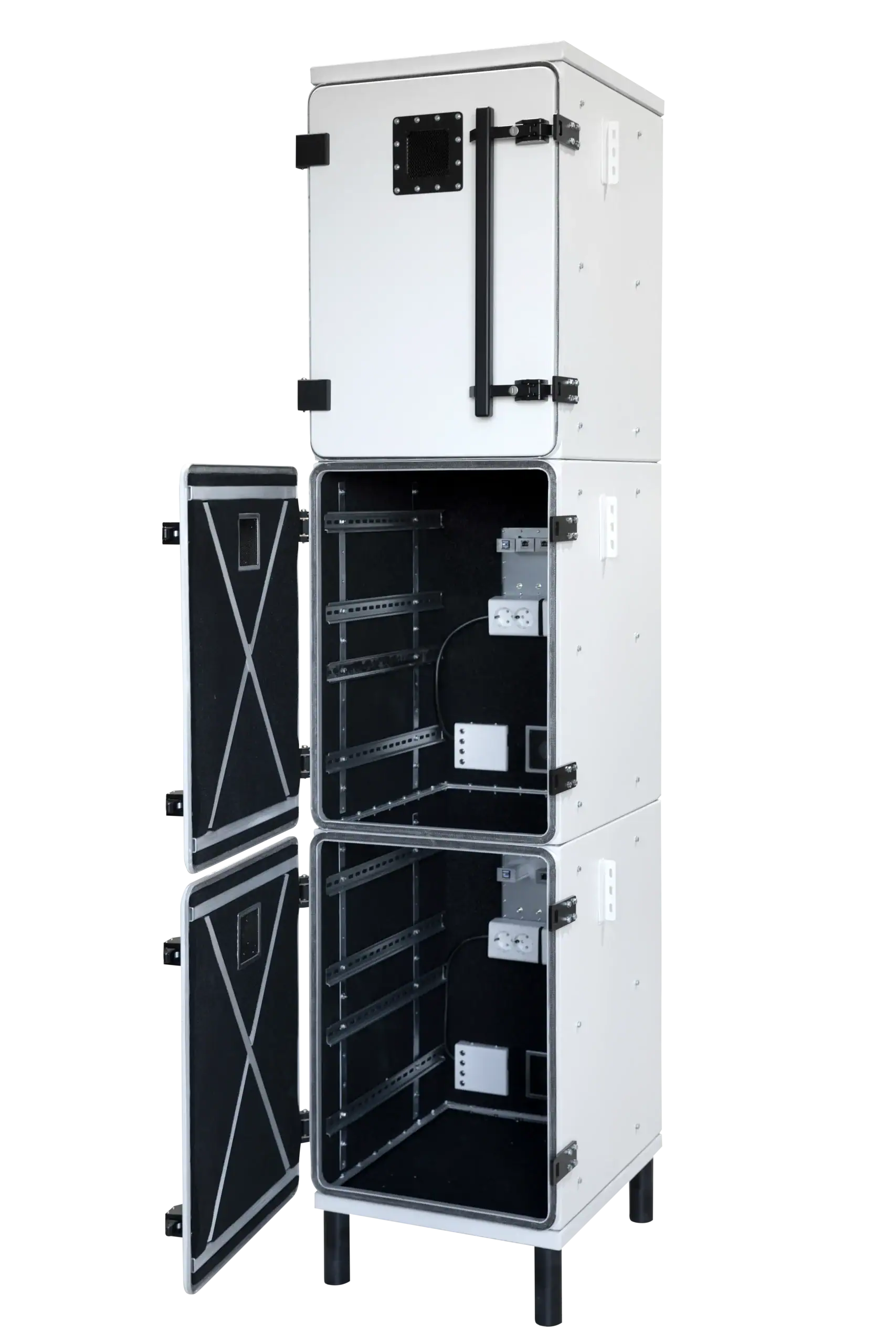

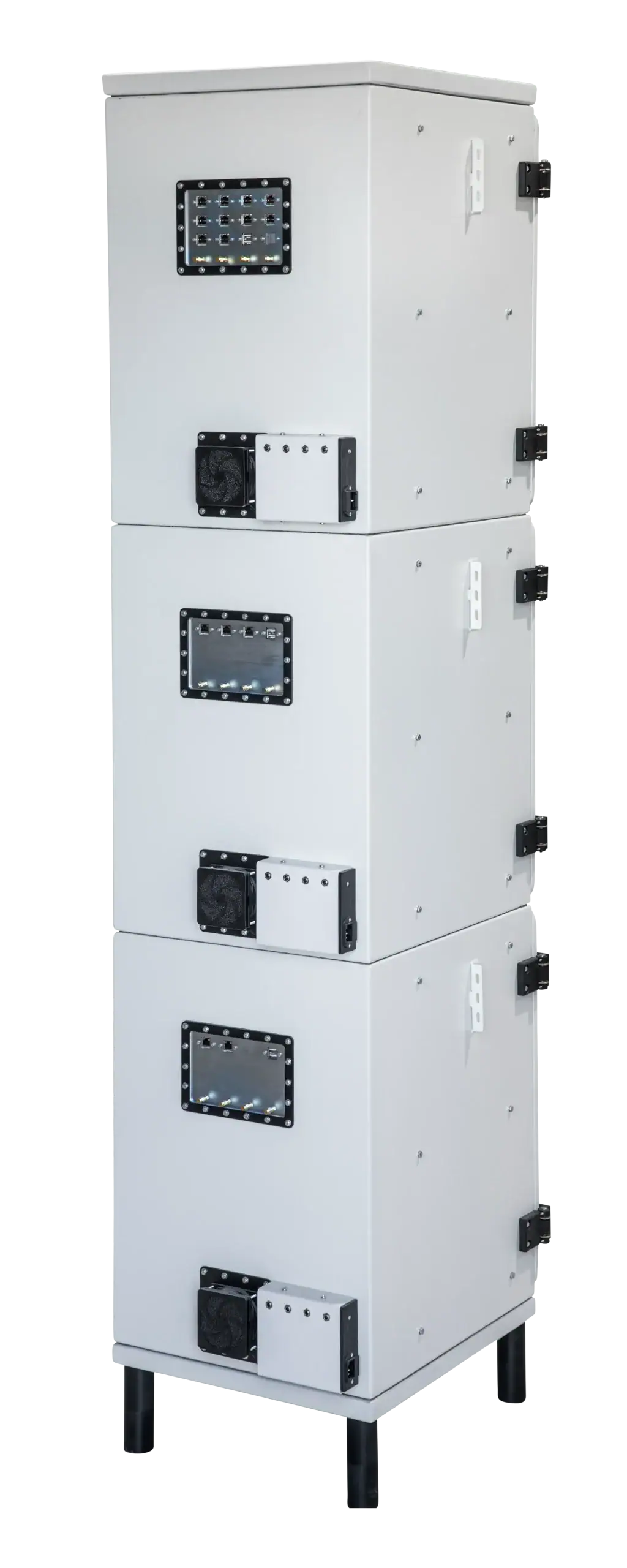

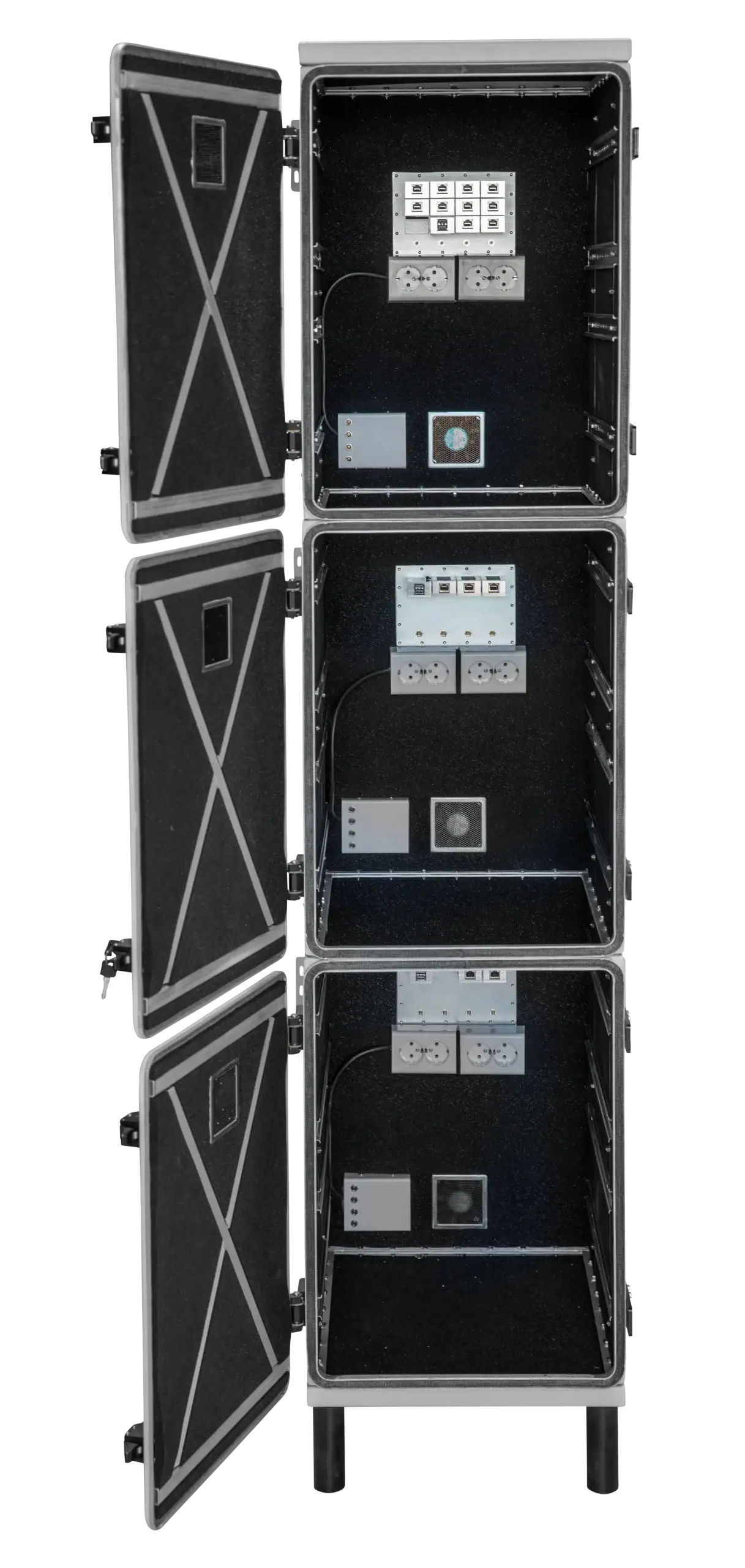

The IG-190R-42U is our ultimate rack-integrated solution. It provides a full 42U of shielded height, effectively turning your entire rack space into a massive RF-quiet zone. It is designed for full-scale system integration, large server arrays, or massive batch-testing setups where absolute isolation is required for an entire rack's worth of equipment.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Full-Height 42U Shielding: Maximizes the entire vertical capacity of a standard 19” rack.
  • Complete System Integration: Ideal for testing full-scale rack systems, server stacks, or large telecom ODUs.
  • 3-levels Front Door: Features industrial-grade hinges and a multi-point locking system for perfect RF sealing.
  • Maximum Connectivity: Supports an expansive array of filters and feed-throughs on the rear and side panels.
  • Rigid Industrial Frame: Built to house heavy equipment while maintaining precise shielding alignment.
  • Total Isolation: Provides a "chamber-level" environment for high-stakes certification and integration testing.

RF Attenuation

0.1-8GHz <80dB

RF absorber

Internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
