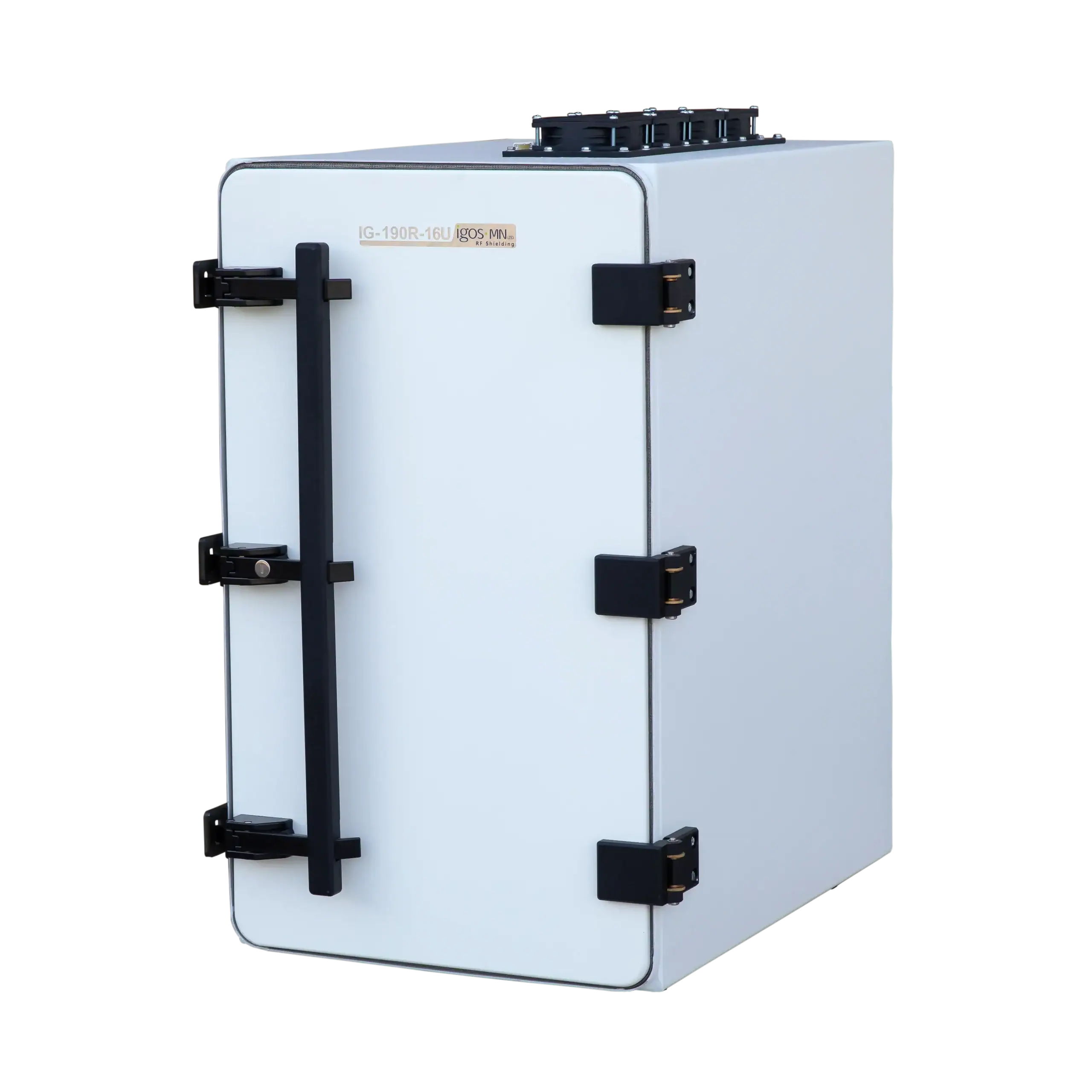

IG-190R-16U

IG-190R-16U--gallery--_43A5920
IG-190R-16U--gallery--_43A5936
IG-190R-16U--gallery--_43A5969

Color

RAL 9016

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
43
37
Height
71
64
Depth
57*
47*

Description

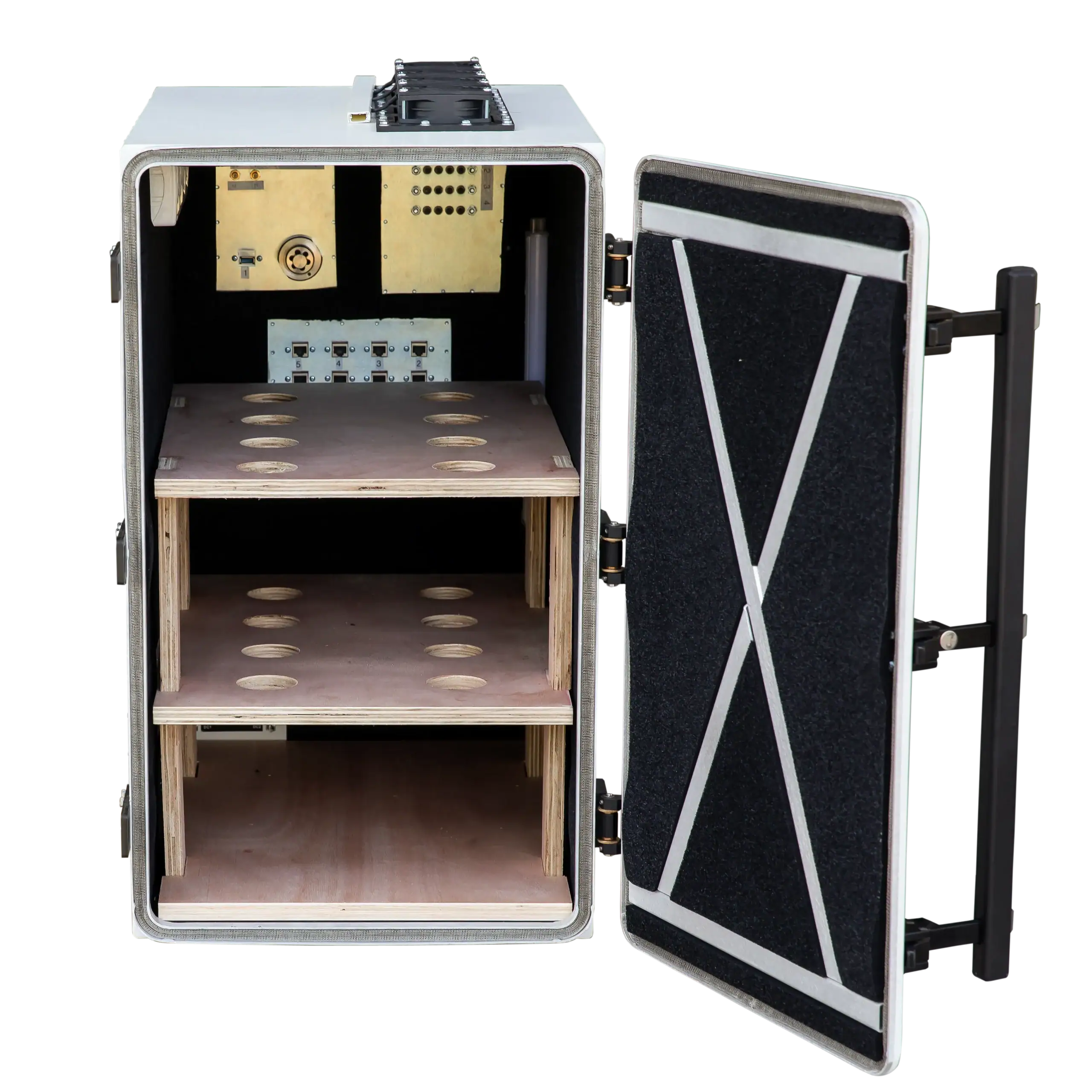

These larger R-series models (9U to 16U) are designed for engineers who need to integrate full-sized equipment into their racks. Mounted on fixed shelves, they feature a standard front-opening door, similar to our B-series desktop models. They provide the height and volume necessary for large routers, base stations, and complex system-level testing while maintaining a professional rack-integrated appearance.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Fixed Shelf Stability: Solid mounting for heavier devices and complex internal setups.
  • Front-Opening Door: Provides familiar, ergonomic access for large equipment and system-level testing.
  • Large Internal Volume: Offers up to 16U of height for bulky prototypes and multi-antenna MIMO arrays.
  • B-Series Performance: Guaranteed high attenuation (90dB+) across all common wireless frequencies.
  • Honeycomb Ventilation: Passive cooling pathways ensure active electronics stay within operating temperatures.
  • Swappable Interface Plate: Large rear I/O panel for high-density connector configurations (SMA, USB, LAN, etc.).

RF Attenuation

0.1-8GHz <80dB

RF absorber

Internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
