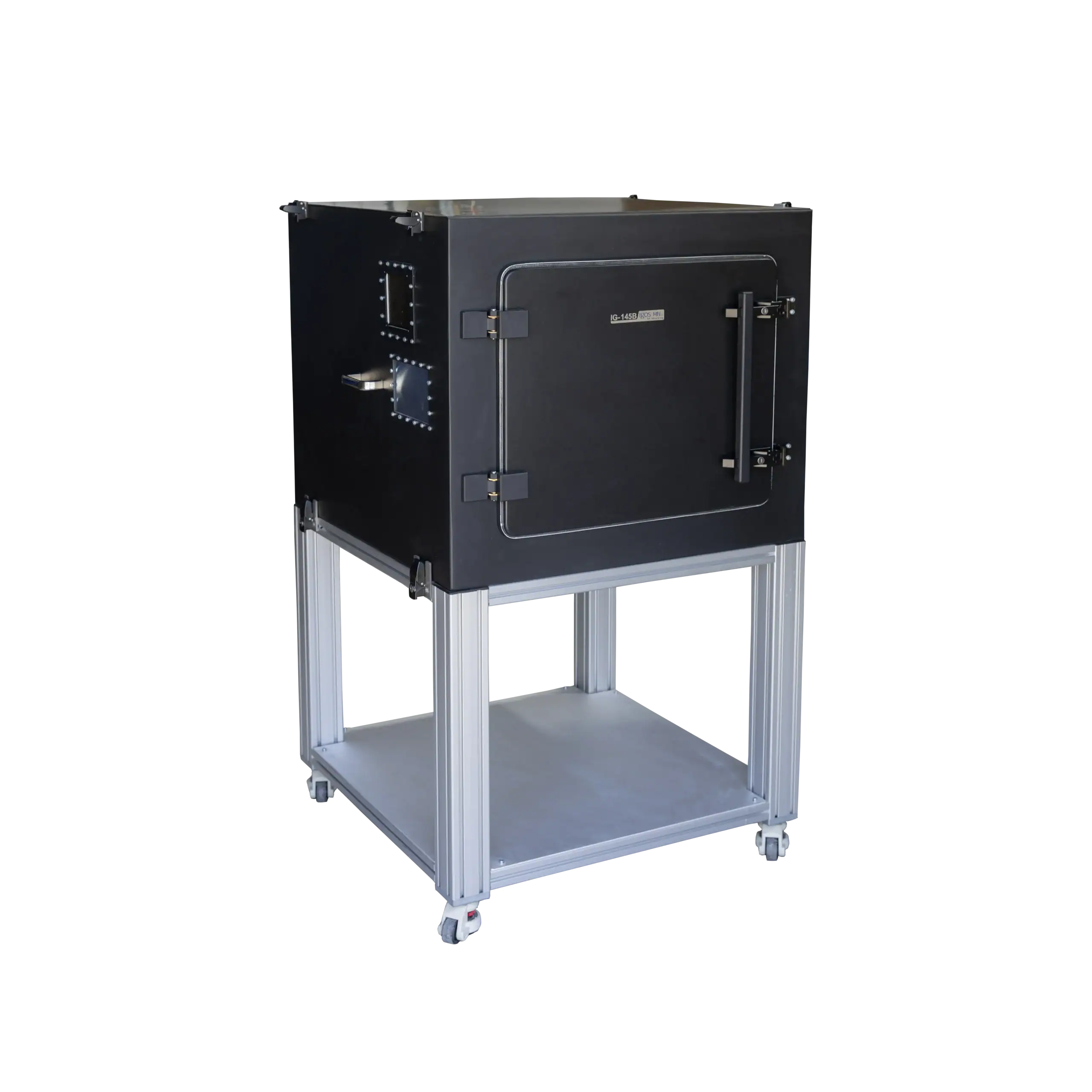

IG-145B

Color

Material

Aluminum

Weight

Measurments

Dimension (cm) External Internal
Width
90
77
Height
69
66
Depth
92
77

Description

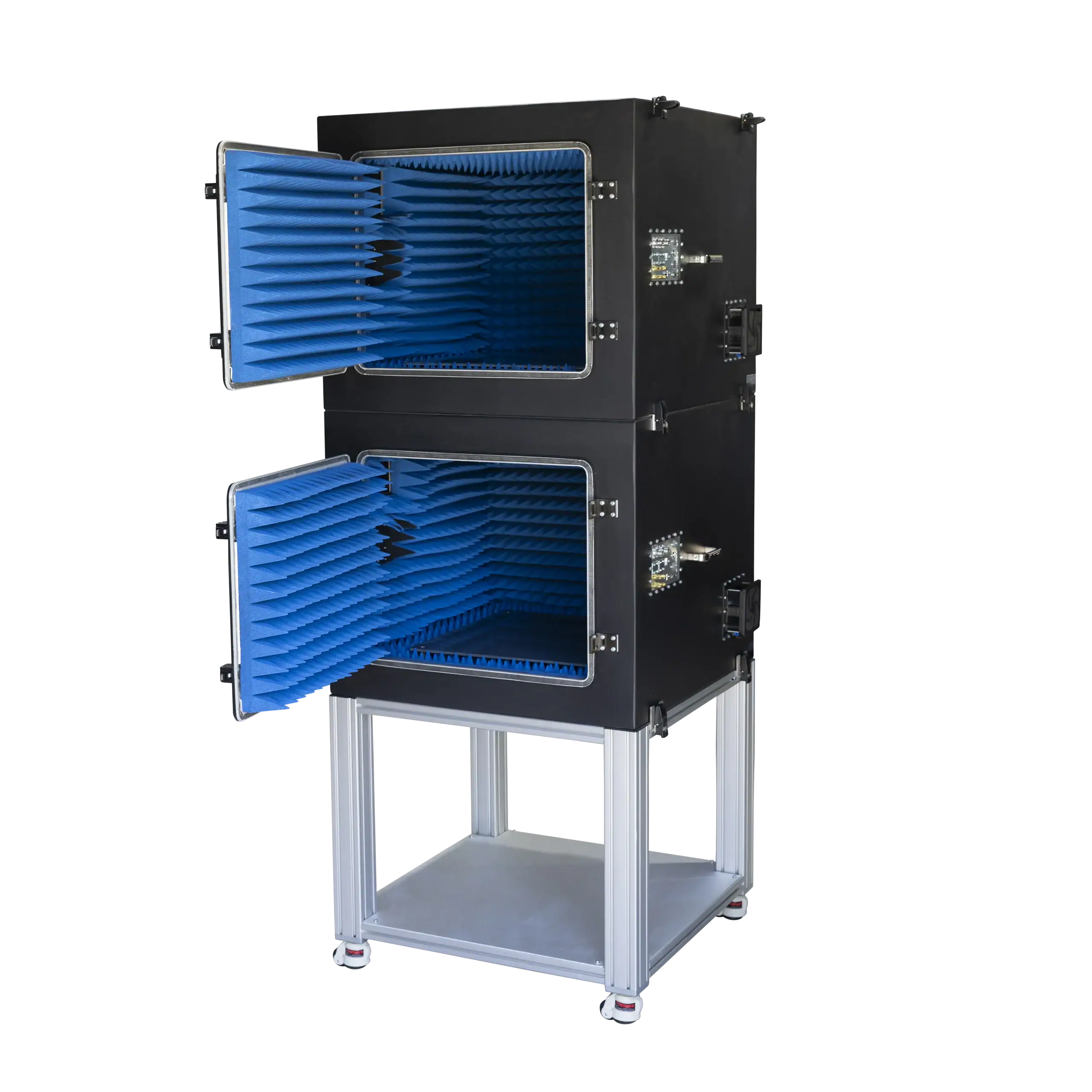

Don't let the model number fool you—the IG-145B is a beast. Designed to address the unique challenges of the drone industry, this box features a spacious, cubic internal structure capable of accommodating quadcopters, rotors, and arms that standard flat boxes cannot fit. It provides a controlled environment for testing UAV communication links, GPS susceptibility, and telemetry modules without the risk of outside signal interference or illegal transmission.

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

Key Features

  • Cubic High-Volume Design: Unique "Cube" shape provides the vertical height necessary for drones and 3D objects.
  • UAV & Telemetry Testing: Safe environment to test pairing, GPS (simulation), and control links without illegal transmission.

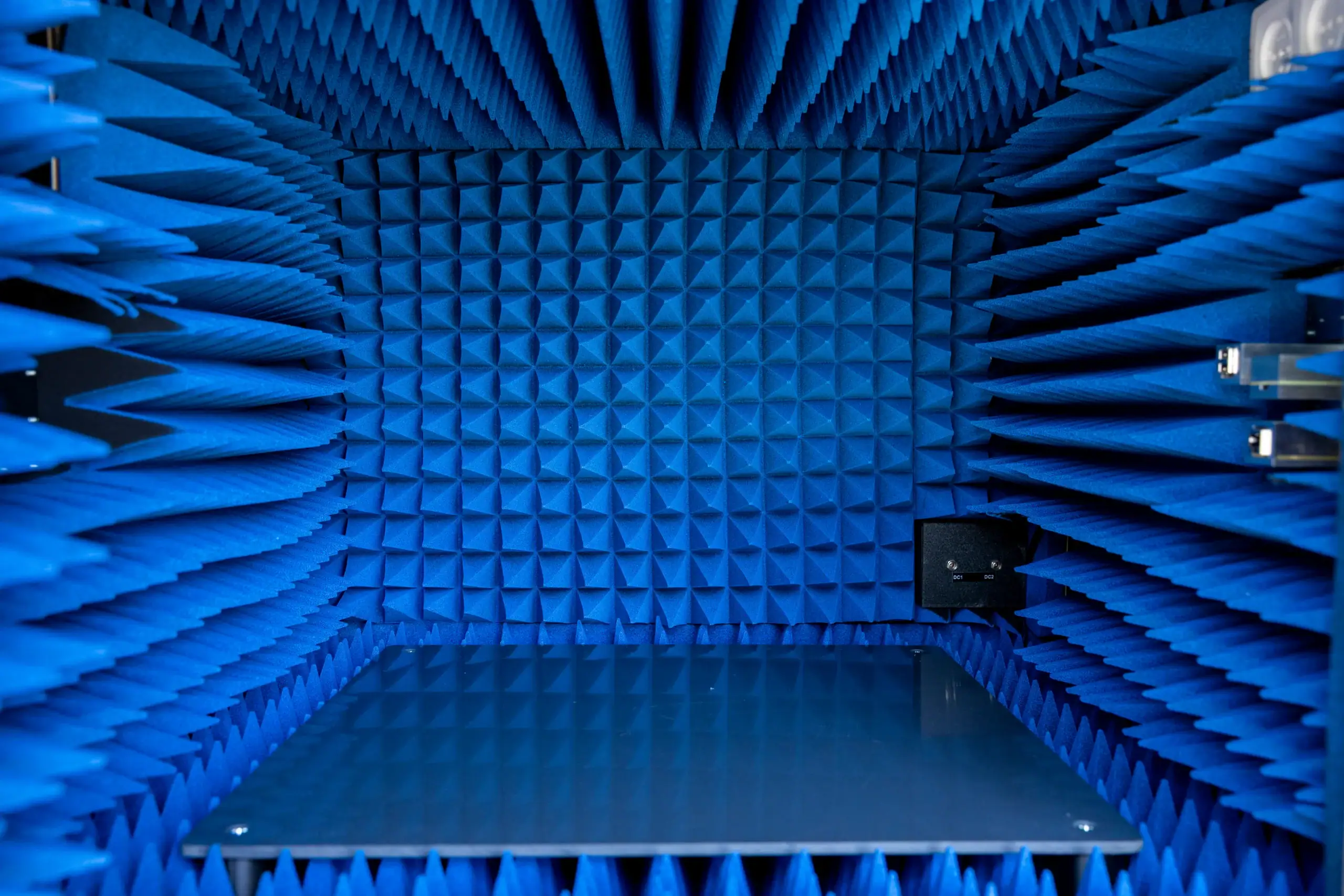

  • Non-Reflective Environment: Fully lined with pyramidal or flat absorbers to simulate free-space conditions for antennas.
  • Large Access Door: Oversized door opening allows for the insertion of bulky prototypes without disassembly.
  • Heavy-Duty Construction: Reinforced chassis to support the weight and size of electromechanical motors and rotors.
  • Safety Isolation: Protects the operator from RF radiation and spinning rotors during active testing.

RF Attenuation

0.1-8GHz <80dB

RF absorber

VHP 4’

Accessories

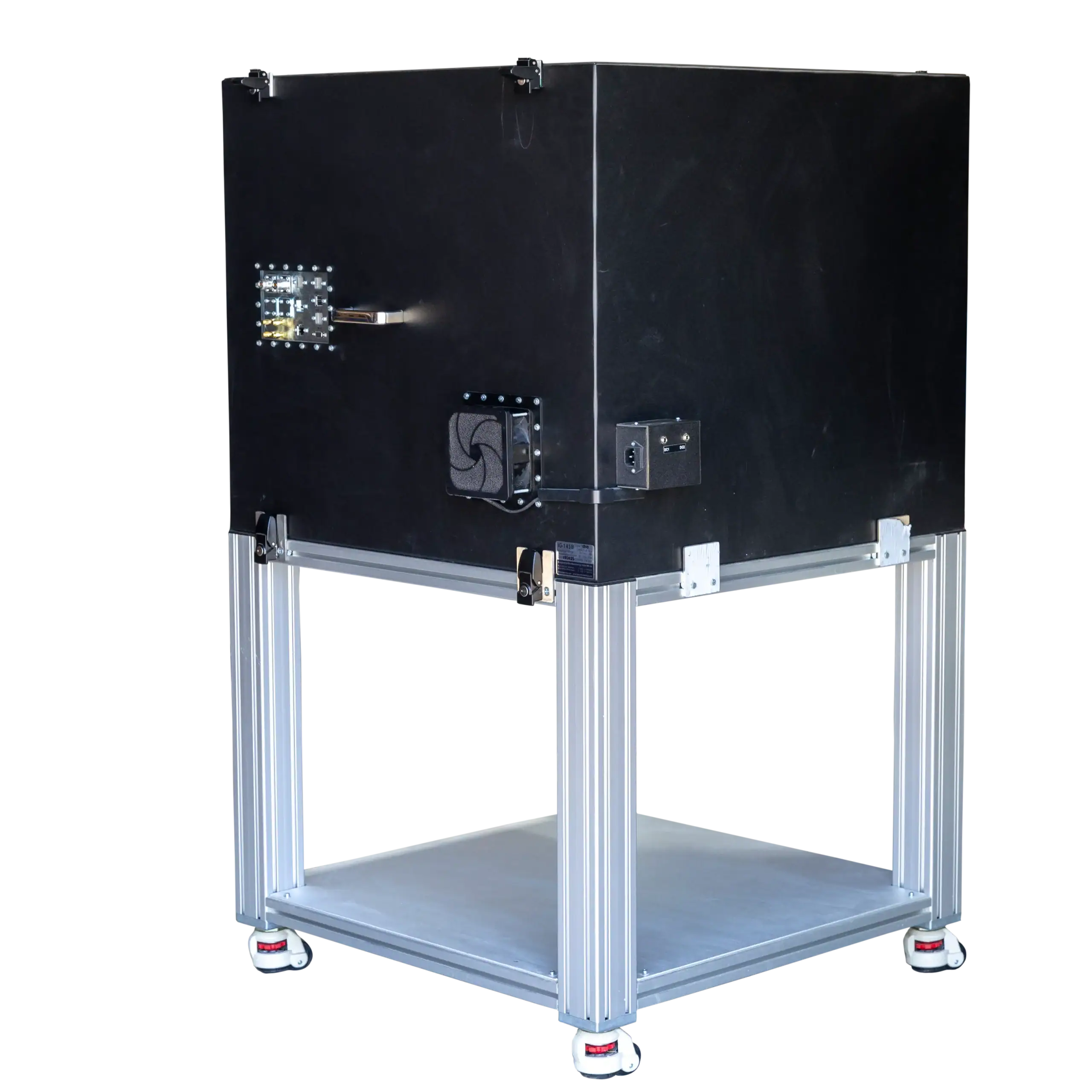

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

Datasheet

Igos-mn RF Shielding
