IG-640B_01-1
IG-640B_02
_MG_1835
_MG_1910

Color

RAL 9010

Material

Aluminum

Weight

28 Kg

Measurments

Dimension (cm) External Internal
Width
67
57
Height
47
37
Depth
53
47

Quality

  • Testing according to MIL-STD 285
  • A C.O.A will attach to each box.
  • Final Attenuation level will set as per as the weak chosen connector
  • Warranty – one year from delivering

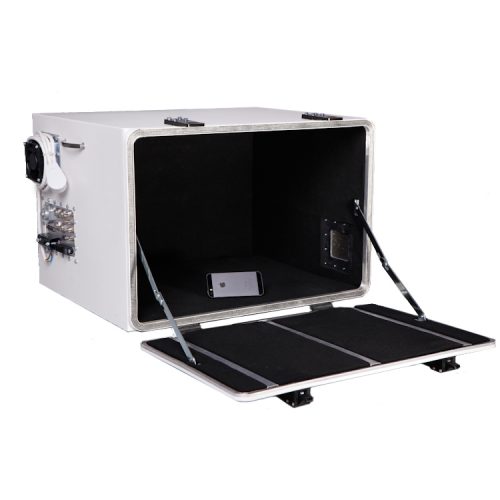

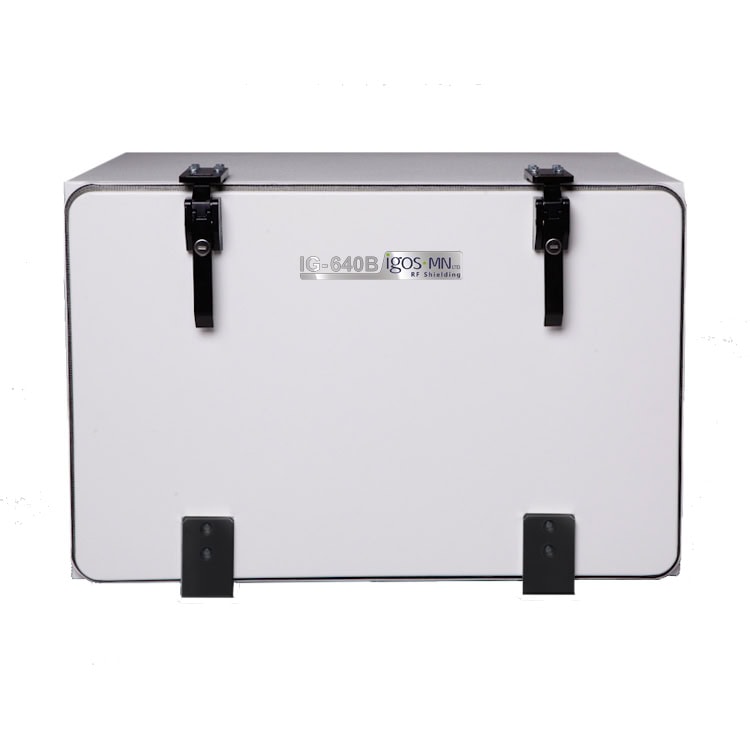

RF Shielded box: IG-640B

Description

The IG-640B is specially developed to fit many kinds of devices and RF modules, it's easy to operate and carry, fits any lab condition and desktop with modular IO filters panel. The chamber is designed for testing any wireless transmission such as: Wi-Fi, Bluetooth, RFID, WLAN, GPS and Wimax.

Key Features

  • Fast, reliable EMI/RFI testing and verification with 100% effective shielding of 90 dBm minimum attenuation (tested as per MIL-STD-285D up to 6GHz)
  • High performance construction: aluminum and copper EMC shielding, RoHS compliant welding, RAL 9010 STD coating
  • Manual operation: front loading, two-handle opened door, latch locking action
  • Shielding tested under lab conditions with signal generator, spectrum analyzer, and conforming antenna
  • Manufacturer’s C.O.T. and test results included
  • Suitable for medium UUT’s
  • Custom-made product, adaptable to any application

Typical RF Attenuation

  • From 0.1 GHz up to 6 GHz -> 90 dB

Internal RF absorber

24 dB , internal surfaces covering with RF absorber foam

Accessories

View Accessories

IO Panel

Connector types: RF, signal, power, optical, etc.
All are filtered to maintain the chamber’s performance.

View IO Panels

Datasheet

Download PDF
